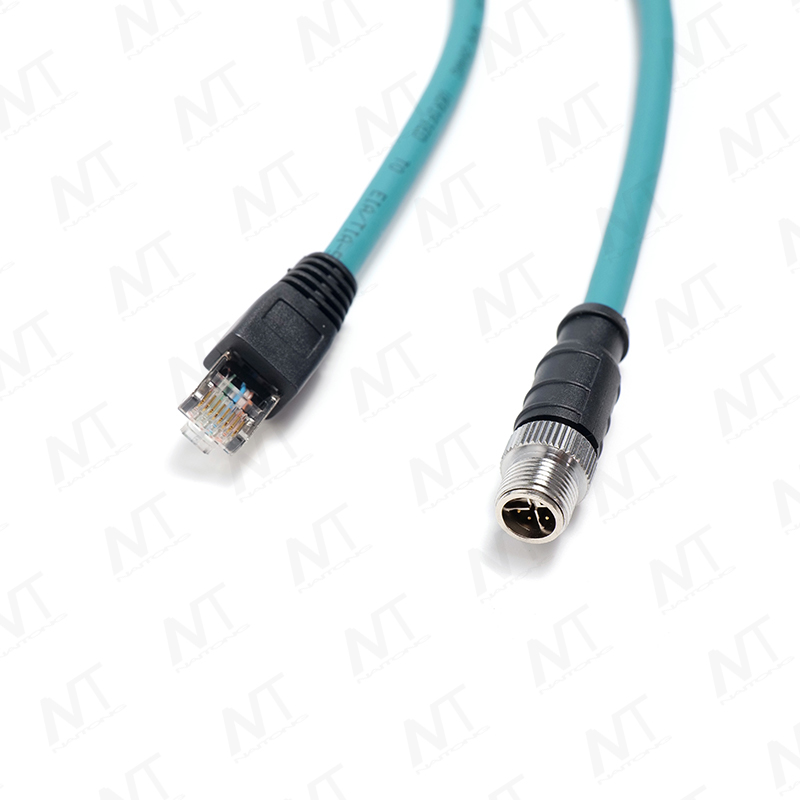

RJ45 to M12 Circular Industrial Ethernet Cable / Medical Equipment Cable

Model: NT-XH26059

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：SMA Female to IPEX (U.FL) RF Coaxial Wire Harness NEXT：20-Pin In-Vehicle Large-Screen Navigation Retrofit Wire Harness

Description

RJ45 crystal head to M12 (round aviation connector) industrial Ethernet wire harness, commonly used for high-speed data transmission between medical equipment and industrial automation equipment.

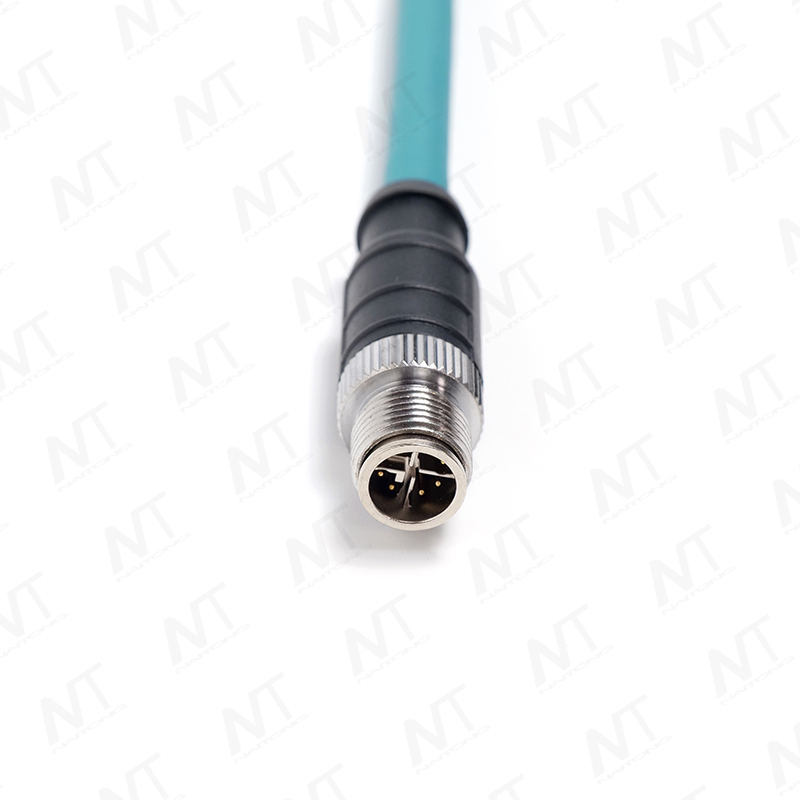

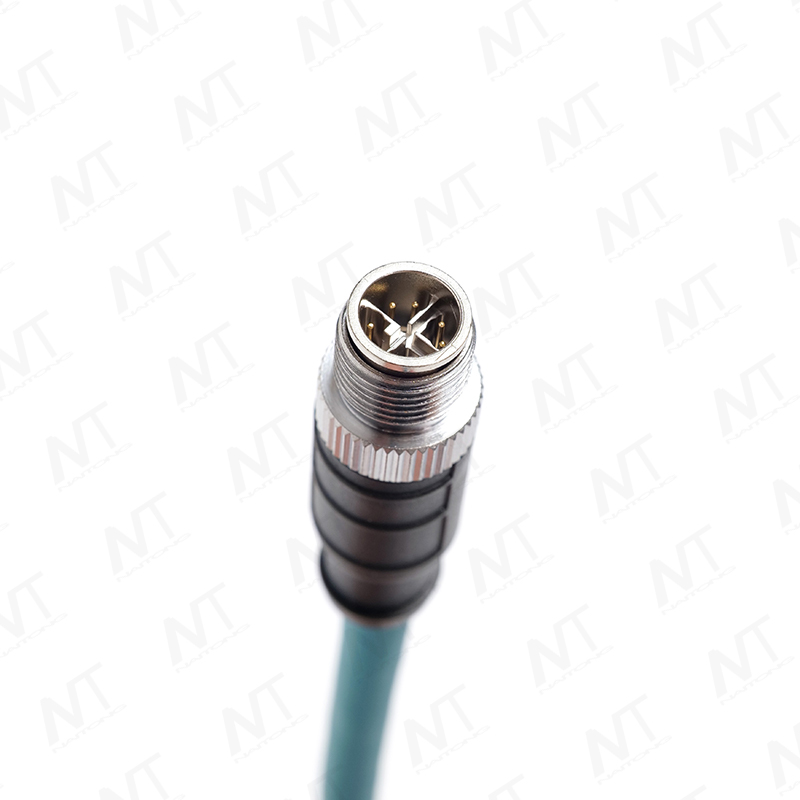

Standard M12 male connector (4-pin / 8-pin D-coded or X-coded available) fitted with knurled lock nut, rated IP65 / IP67 waterproof and dustproof. Its metal housing comes with integrated EMI shielding to resist electromagnetic interference in medical and industrial sites and guarantee consistent data transmission.

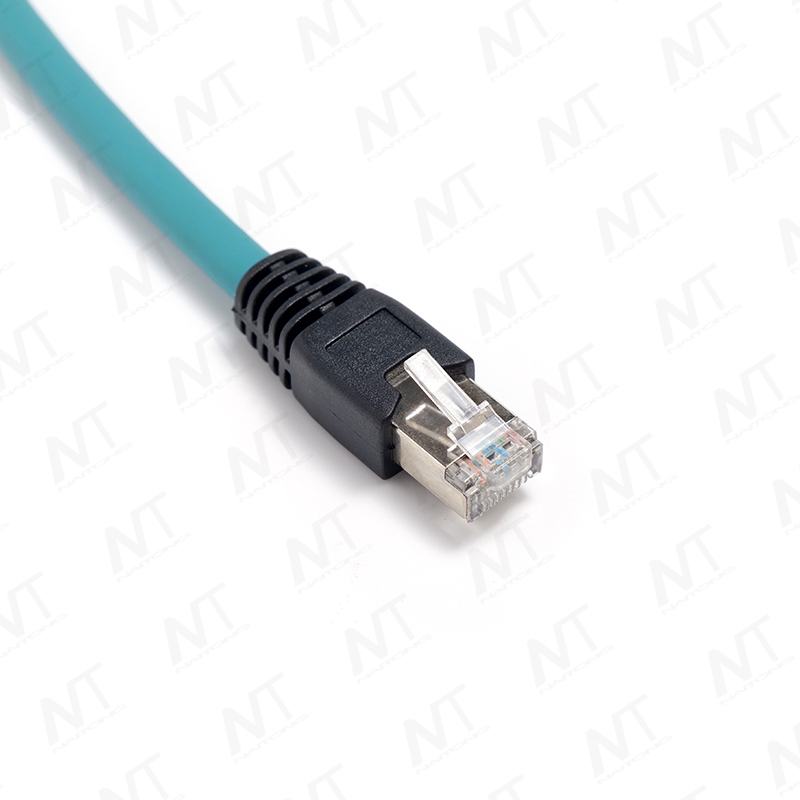

- Standard 8P8C RJ45 plug compatible with standard Ethernet ports for connection to PCs, network switches, and equipment host ports.

- Constructed with industrial teal TPU/PUR cable jacket featuring excellent oil resistance, abrasion resistance, and flex resistance, ideal for medical devices requiring frequent movement and regular disinfection.

-Built with shielded twisted pair (STP), it supports 100Mbps / Gigabit Ethernet. Certain versions support PoE (Power over Ethernet) to transmit data and power via a single cable.

Specifications

Product Name	RJ45 Crystal Head to M12 (Round Aviation Connector) Industrial Ethernet Wire Harness
Application	Medical equipment, industrial equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Cable jacket Material	PVC, TPU, TPE
Cable jacket	TPU/PVC/TPE/Silicone
Connector Type	RJ45 Crystal Head / M12 4-Pin Aviation Connector
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, RoHS, UL, SGS, REACH
Performance Testing	100% electrical performance inspection conducted prior to shipment

Application

This type of harness is a commonly used accessory for medical equipment Ethernet connections, with typical applications including:

- Ultrasound scanners, DR & CT equipment: Transfer device data to workstations or PACS systems for real-time image uploading and review.

-Patient monitors, infusion pumps, and ventilators exchange data with hospital central monitoring & HIS systems to transmit patient vital signs or equipment operating status.

- Lab automation devices, such as biochemistry analyzers and immunoassay analyzers, connect to LIS systems to realize automatic uploading and archiving of test data.
