SMA Female to IPEX (U.FL) RF Coaxial Wire Harness

Model: NT-XH26060

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：DB9 Serial to RJ45 Ethernet Port / 5525 DC Female Cable / Large DIN Male Wire Harness NEXT：RJ45 to M12 Circular Industrial Ethernet Cable / Medical Equipment Cable

Description

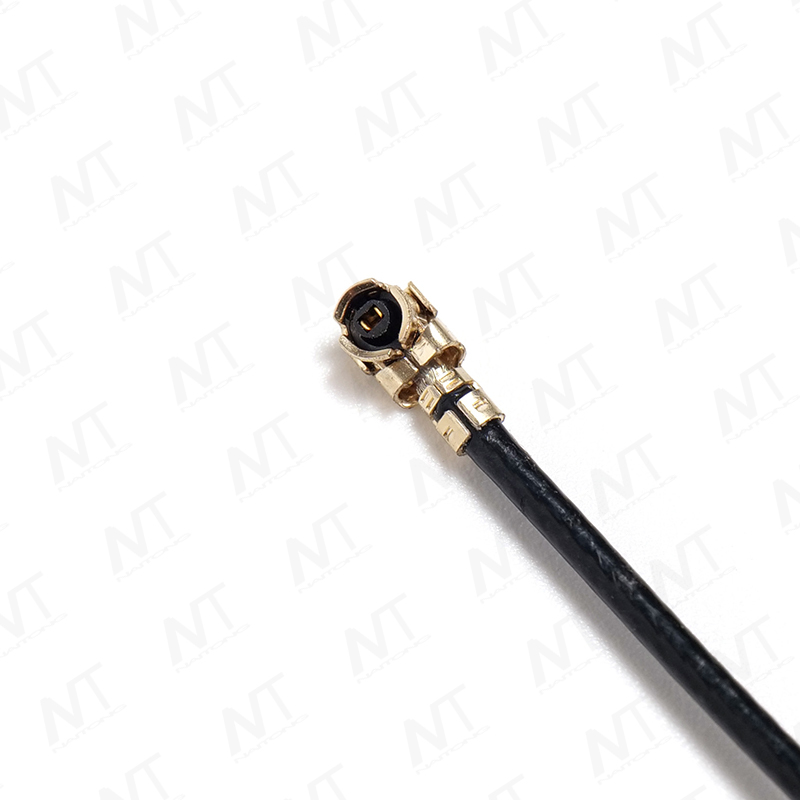

Device End: 4th Generation IPEX (U.FL) Micro RF Male Connector

A miniature gold-plated RF connector, extremely small in size, specifically soldered onto WiFi/Bluetooth/4G/5G modules or mainboard RF pads, used to route built-in RF signals out of the PCB; contacts are gold-plated for low loss and anti-oxidation, compatible with 2.4G/5.8G/Sub-GHz wireless bands.

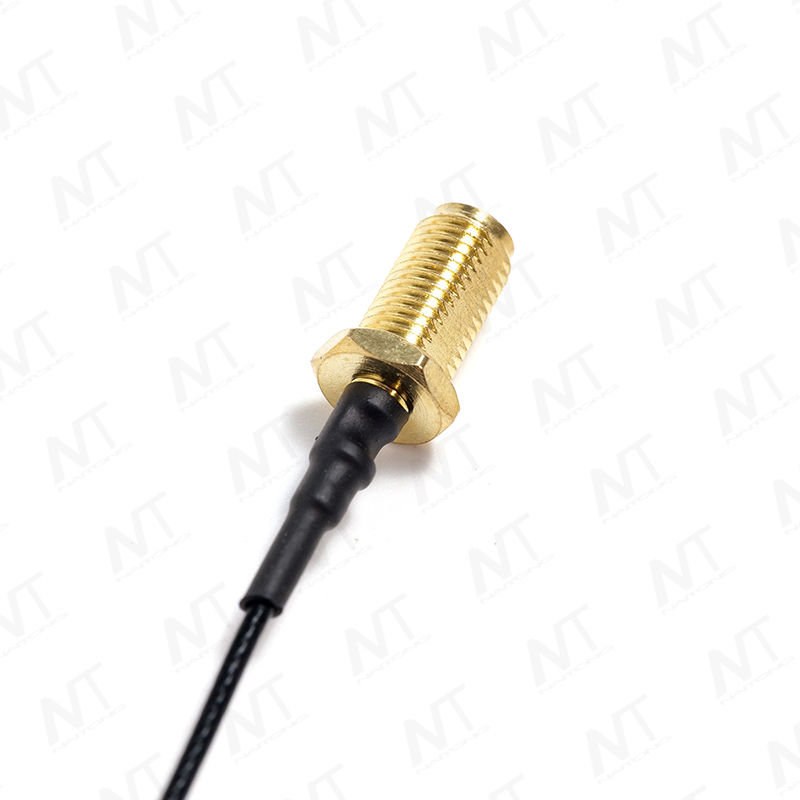

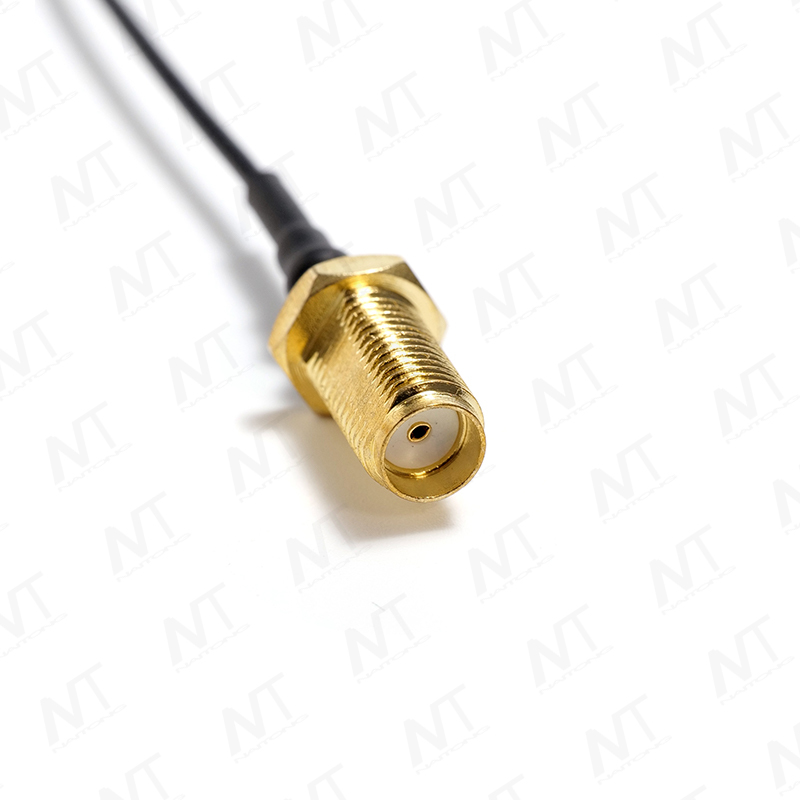

External Mounting End: SMA Bulkhead Female Connector (Panel-Mount Type)

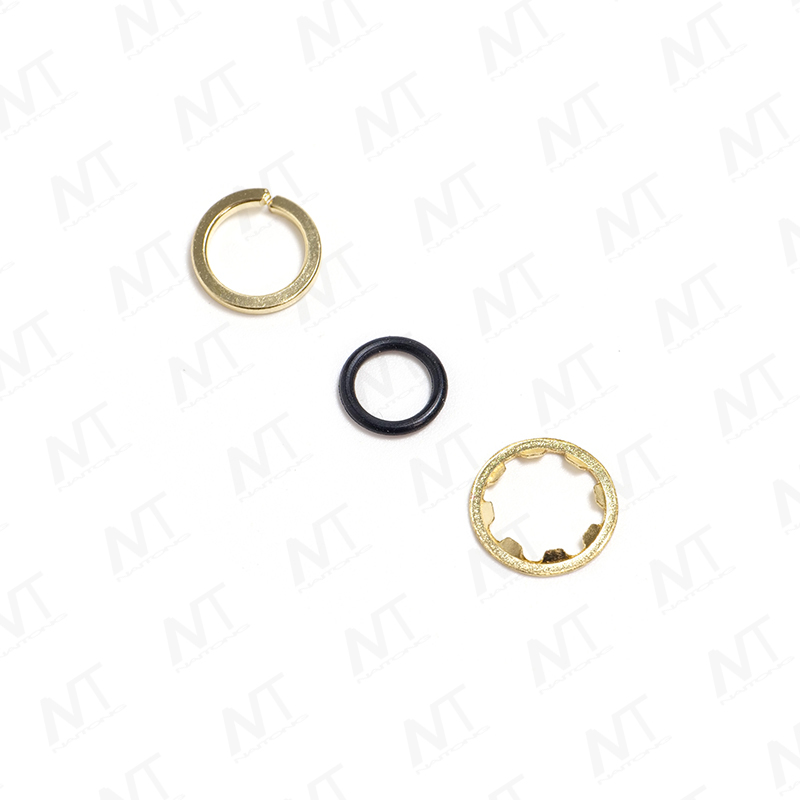

Standard SMA-K threaded female connector, with extended external threading, paired with a three-piece mounting kit (metal locking nut, anti-slip serrated washer, waterproof rubber O-ring), all-copper gold-plated housing, 50Ω standard RF impedance, compatible with most external antennas.

Transmission Cable: 0.81/1.13 Ultra-Thin RF Coaxial Cable, 50Ω standard impedance coaxial cable, with inner core signal + outer shielding dual-layer structure isolating external electromagnetic interference; the ultra-thin cable body is soft and easy to bend, suitable for routing in tight internal device spaces;

Specifications

Product Name	Custom SMA Female to IPEX (U.FL) RF Coaxial Wire Harness
Application	Electric vehicles, automotive, drones, industrial instruments, etc.
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE OIL
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	SMA Female / IPEX (U.FL)

Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% electrical and power performance testing before shipment

Application

- In-Vehicle Android Large-Screen Navigation

Routing the head unit's built-in WiFi/Bluetooth module IPEX interface out to a panel-mounted SMA external antenna, enhancing in-vehicle navigation, phone Bluetooth connection, and in-vehicle hotspot signal strength.

- IoT Gateway / Wireless Module

4G DTU, WiFi routers, and LoRa IoT devices, routing the RF port out through a chassis cutout to an external outdoor antenna, extending communication range.

- Industrial Test Instruments, Industrial Control Equipment

Wireless acquisition sensors and wireless data transmission modules, with shielded coaxial cabling resisting interference from workshop motor inverters, ensuring stable wireless data upload.

- Drones, Smart Home Devices

Wire in tight internal device spaces, with the ultra-thin coaxial cable bending without signal loss, the external antenna improving remote control and WiFi coverage range.

- RV / Marine Audio-Video Center Control

In-vehicle WiFi and GPS antenna adapter, with a waterproof SMA panel-mount socket adapting to humid, sun-exposed vehicle and boat environments.
