Servo Motor Power Cable and Servo Motor Encoder Signal Cable Wire Harness

Model: NT-GK26040

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 3–15 days, bulk orders 2–4 weeks

Port of Shipment: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：No previous article NEXT：CN50 (SCSI50) to RJ11 Multi-Channel Distribution Wire Harness

Description

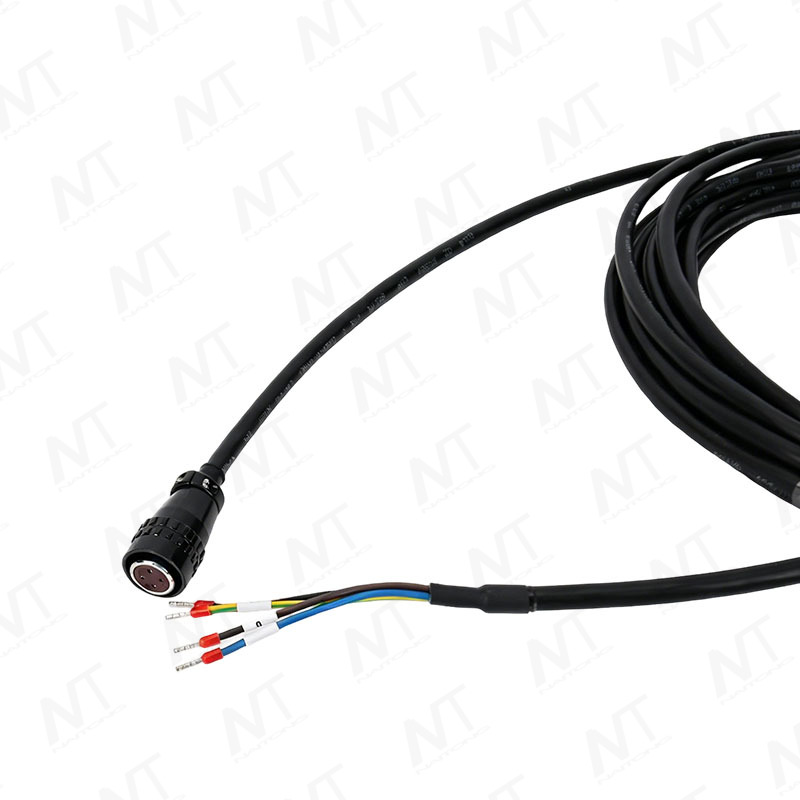

Connector End: Round multi-core aviation connector, European standard plug with locking nut, waterproof and anti-loosening, compatible with mainstream servo motor power interfaces (e.g., Panasonic, Mitsubishi, Delta, etc.).

Cable Body: High-flexibility power cable, rated for 5 million to 20 million flex cycles (drag chain cable), with oil resistance, bending resistance, and abrasion resistance, suitable for dynamic applications in robots and CNC machine tools.

Specifications

Product Name	Custom Servo Motor Power Cable and Servo Motor Encoder Signal Cable Wire Harness
Application Field	Industrial Robots, Industrial Automation Equipment, New Energy Equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	As per customer requirements
Outer Insulation Material	TPU, PVC, PE (Polyvinyl Chloride) (Thin-wall)
Cable Sheath	PE/TPU/XLPE, etc.
Connector Type	MDR/CM Series / Multi-Core Aviation Connector
Pin Definition Connection	As per customer requirements
Inner Copper	Tinned / Bare Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% Terminal Inspection & 100% Electrical Performance Test & 100% FQC & AQL=0.65

Application

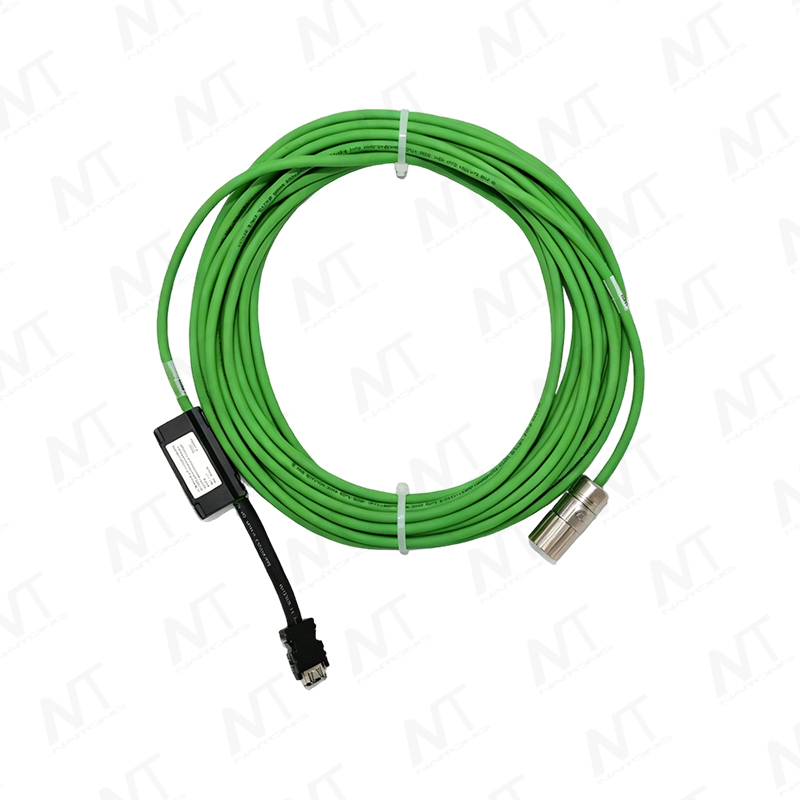

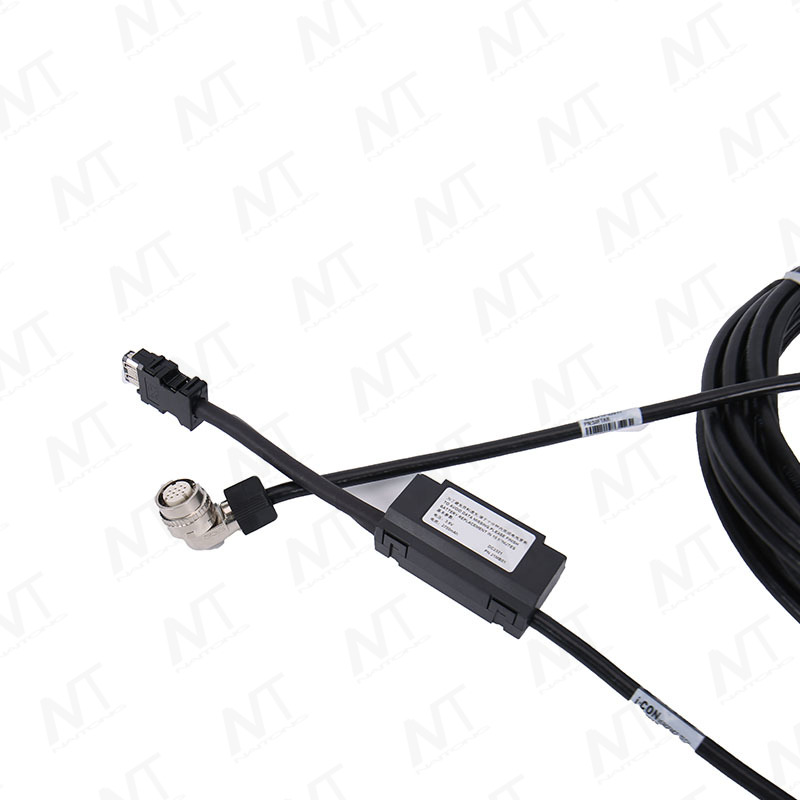

Dedicated encoder signal cable for servo motors, with a metal round connector on one end (for motor encoder interface) and a small industrial connector on the other (for drive/host interface), used to transmit motor speed and position feedback signals to achieve closed-loop control of servo systems.
