20-Pin In-Vehicle Large-Screen Navigation Retrofit Wire Harness

Model: NT-XH26058

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：RJ45 to M12 Circular Industrial Ethernet Cable / Medical Equipment Cable NEXT：M12 Male/Female Panel-Mount Waterproof Sensor Adapter Wire Harness

Description

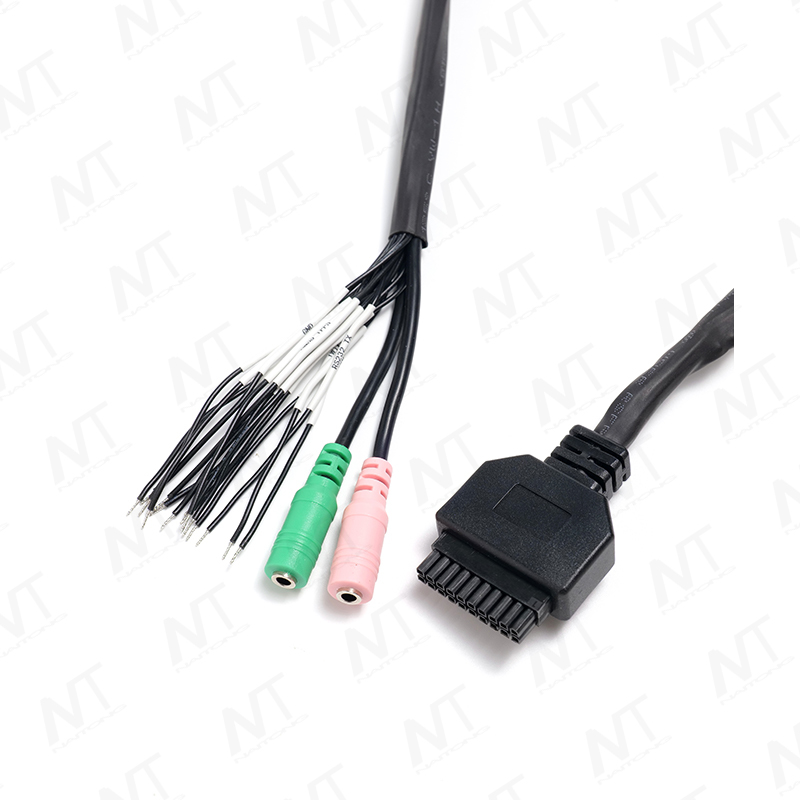

Main Input End: 20-Pin Dual-Row Locking Male Connector

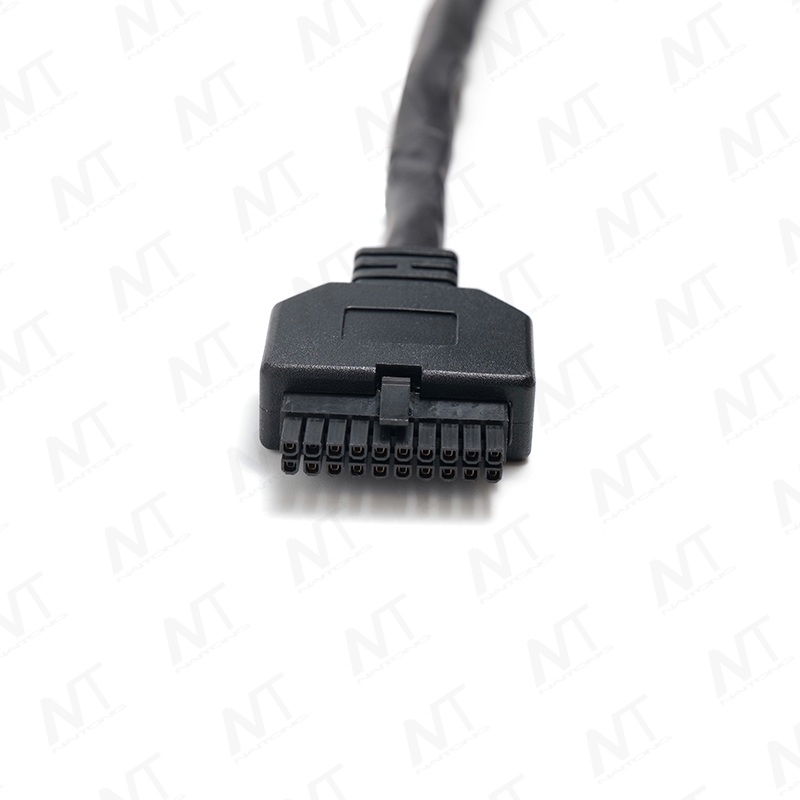

Standard 20-pin black plastic plug dedicated for in-vehicle navigation head units, with anti-detachment latch design, serving as the main mating interface for the head unit mainboard, integrating all vehicle audio/video, control, power, and audio circuit channels, with gold-plated anti-oxidation pins, compatible with various Android large-screen head units and retrofit navigation systems.

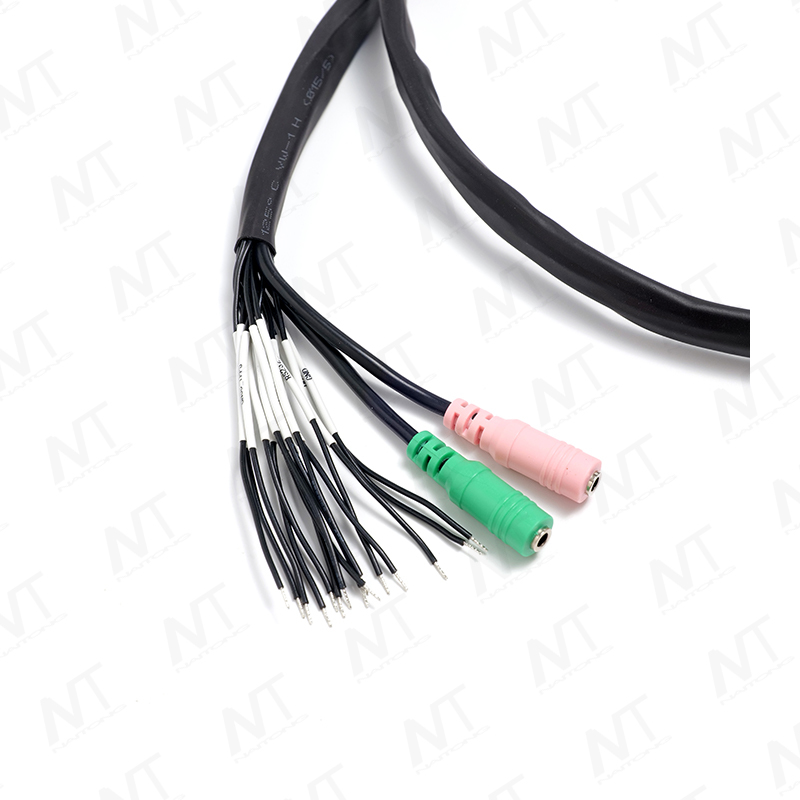

Terminal Three-Way Output Branch

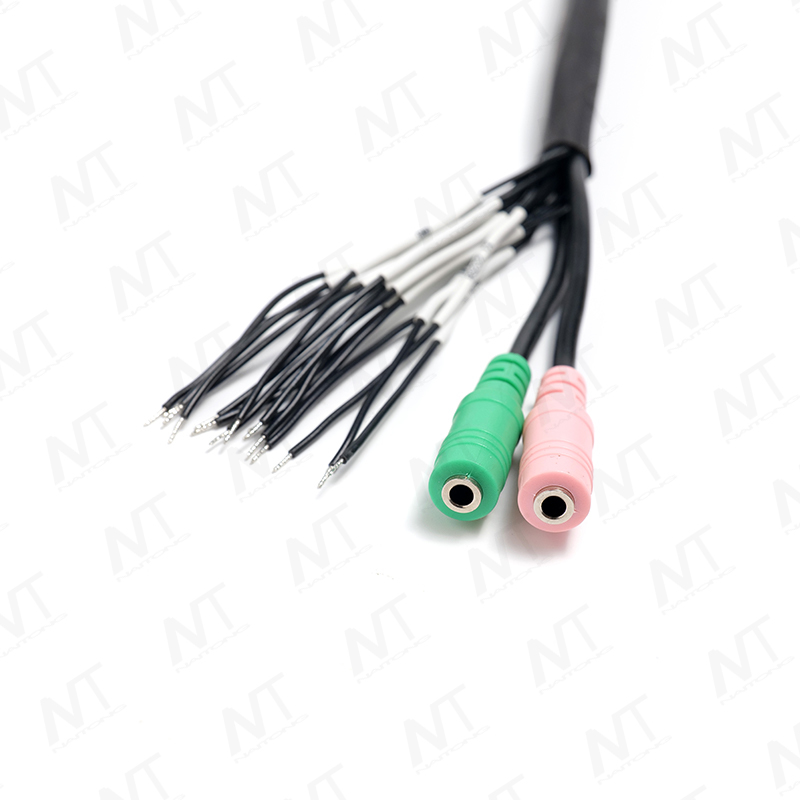

- Two 3.5mm Audio Female Jacks (Green + Pink)

- Green 3.5mm jack: AUX audio input (external phone or player stereo audio source)

- Pink 3.5mm jack: MIC microphone input (in-vehicle Bluetooth calls, voice navigation pickup)

Specifications

Product Name	Custom 20-Pin In-Vehicle Large-Screen Navigation Retrofit Wire Harness
Application	Electric vehicles, automotive
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE OIL
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	M12 Male/Female, XH Series
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% electrical and power performance testing before shipment

Application

- Automotive Center Console Android Large-Screen Retrofit

Upgrading gas and new energy vehicles' low-spec original head units to large-screen navigation, serving as the matching tail harness for the head unit, achieving full functional connection of power supply, speakers, Bluetooth mic, AUX audio source, reversing camera, and steering wheel buttons.

- Ride-Hailing / Commercial Vehicle Audio Retrofit

Adding an external microphone to improve call clarity, connecting an external AUX player for advertisement or navigation voice playback.

- RV / Camper Van Center Console Multimedia Expansion

Expanding external audio source input and connecting an in-cabin intercom microphone, compatible with RV audio/video control systems.
