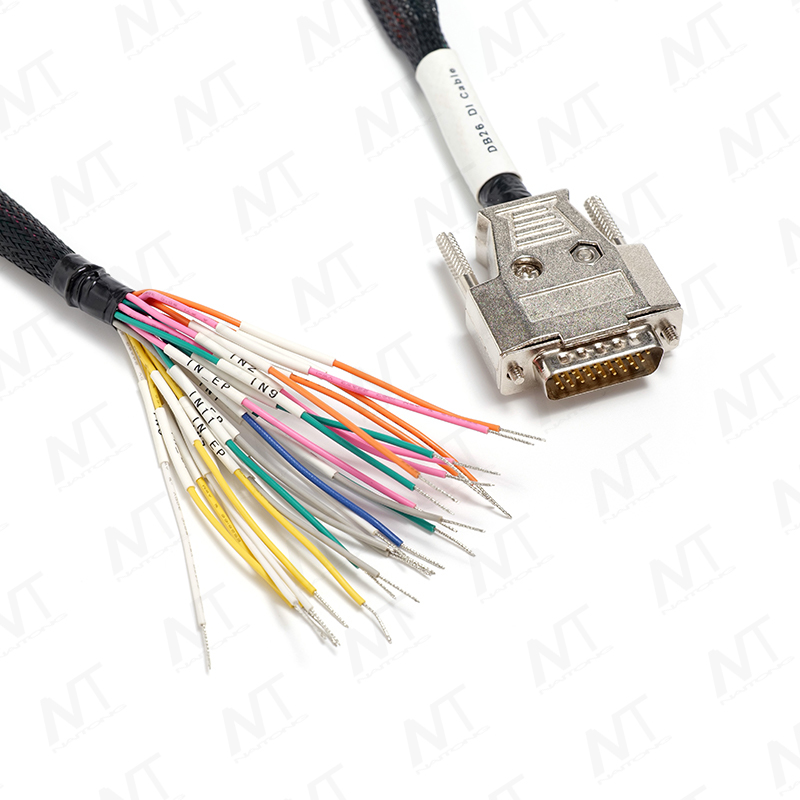

Medical devices DB25 multi-core signal wire harness (D-Sub25 to flying leads)

Model: NT-Y26027

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：Signal Wire Harness with Waterproof Aviation Connector to RJ45 + 3-Pin Power / Medical Device Harness NEXT：Medical equipment High-current power wire harness/D-Sub (3W3) connector

Description

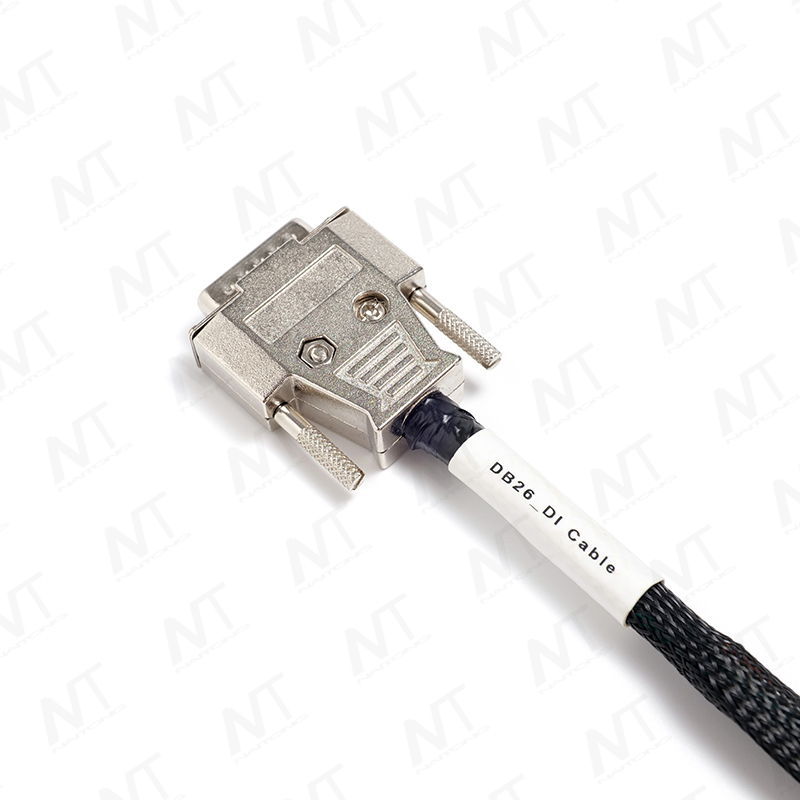

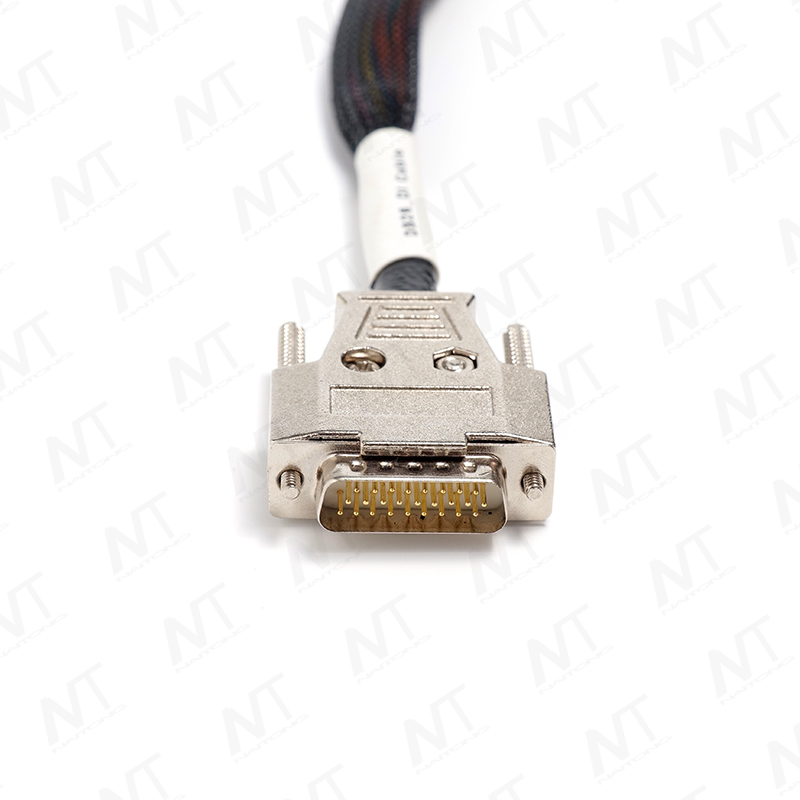

The metal interface shown is a standard 25-pin D-Sub (DB25) male connector, a classic multi-pin signal interface widely used in industrial and communications fields, commonly applied in:

- IO signal transmission for industrial control equipment

- Multi-channel data acquisition for medical/test instruments

- Serial port expansion or custom communication protocols

Specifications

Product Name	DB25 Multi-Core Signal Wire Harness / D-Sub25 to Breakout / Medical Device Harness
Application	Medical Equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	DB25, D-Sub25
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

The 25 pins of the DB25 can independently transmit multiple signal channels, commonly found in ECG monitors, electroencephalograph (EEG) machines, electromyography (EMG) equipment, and patient monitors, used to connect electrodes, sensors, and the main unit while simultaneously transmitting multi-channel bioelectrical signals (such as ECG, EEG, and EMG waveform data).
