Industrial Ethernet Medical devices wire harness (RJ45 to M12 circular aviation plug)

Model: NT-Y26029

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us
PREV：Medical equipment Internal integrated wire harnessNEXT：Signal Wire Harness with Waterproof Aviation Connector to RJ45 + 3-Pin Power / Medical Device Harness
  • Description

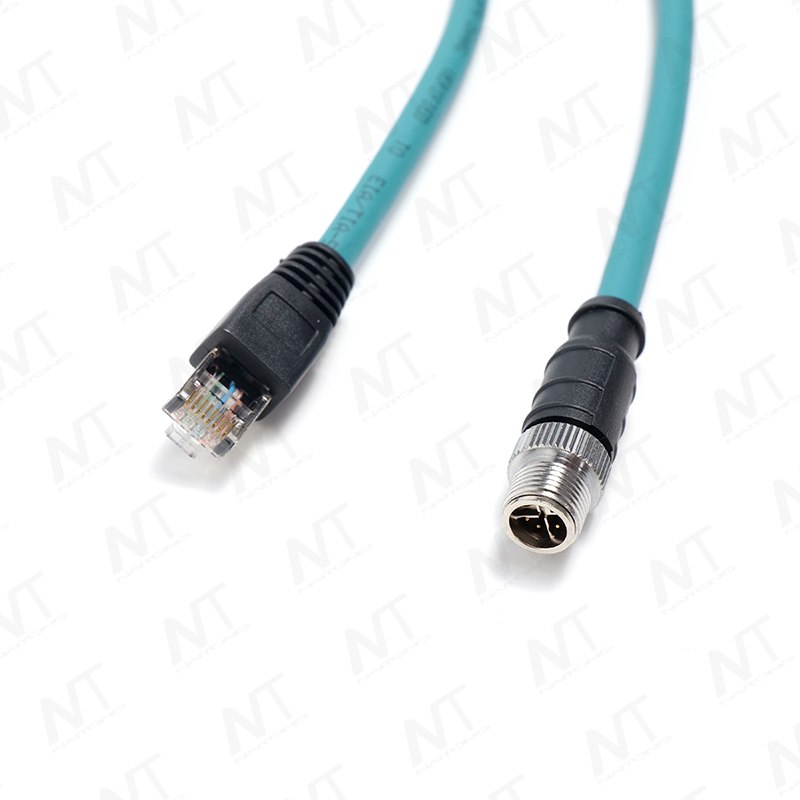

RJ45 crystal head to M12 (round aviation connector) industrial Ethernet wire harness, commonly used for high-speed data transmission between medical equipment and industrial automation equipment.

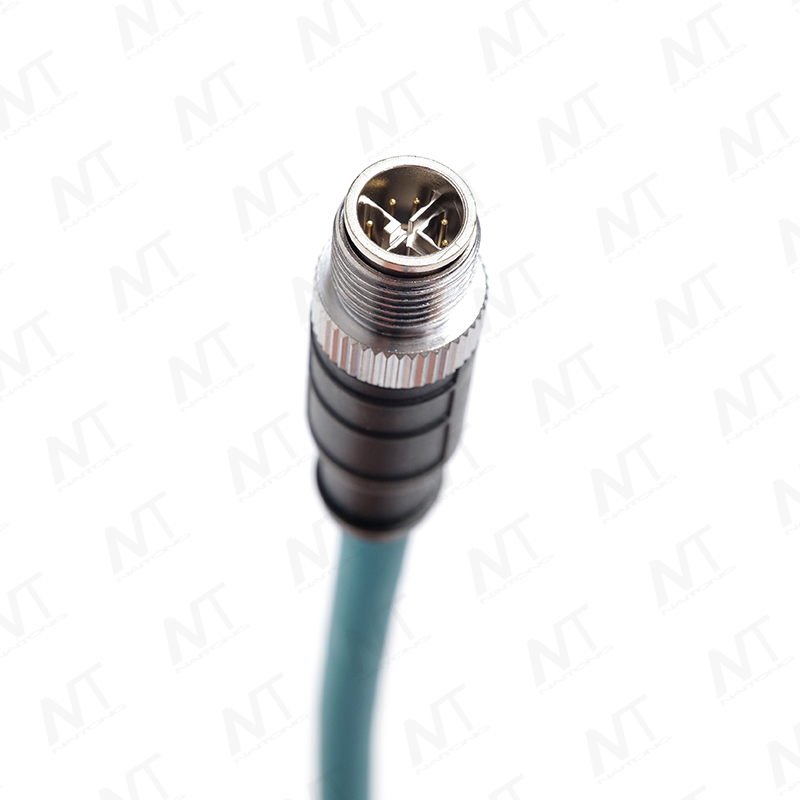

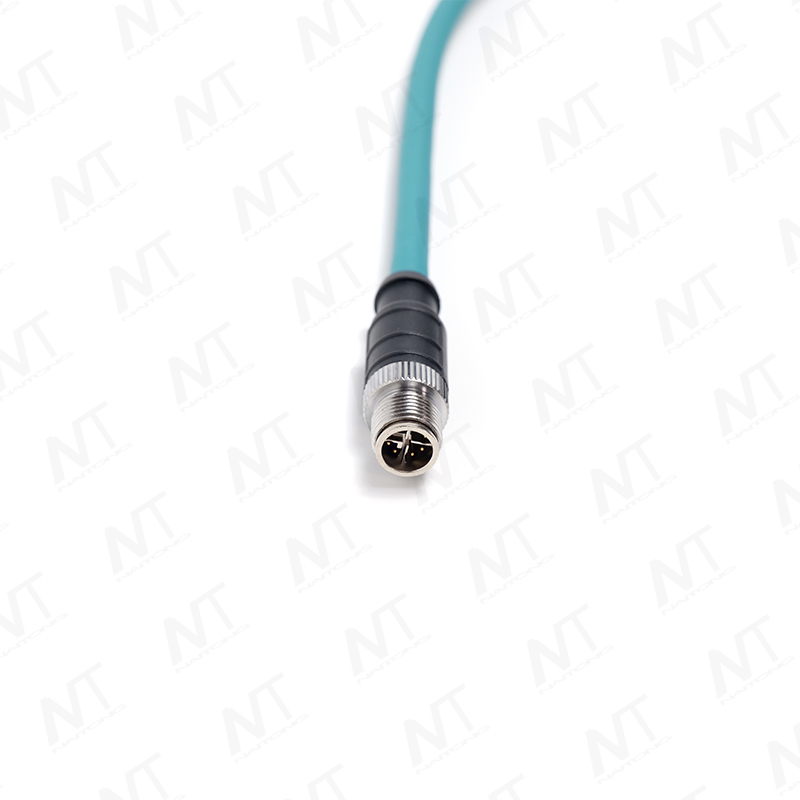

  Standard M12 specification male connector (commonly 4-pin/8-pin D-code or X-code), with knurled locking nut, providing IP65/IP67 waterproof and dustproof protection. Metal housing design provides built-in electromagnetic shielding, effectively suppressing electromagnetic interference in medical/industrial environments to ensure stable data transmission.

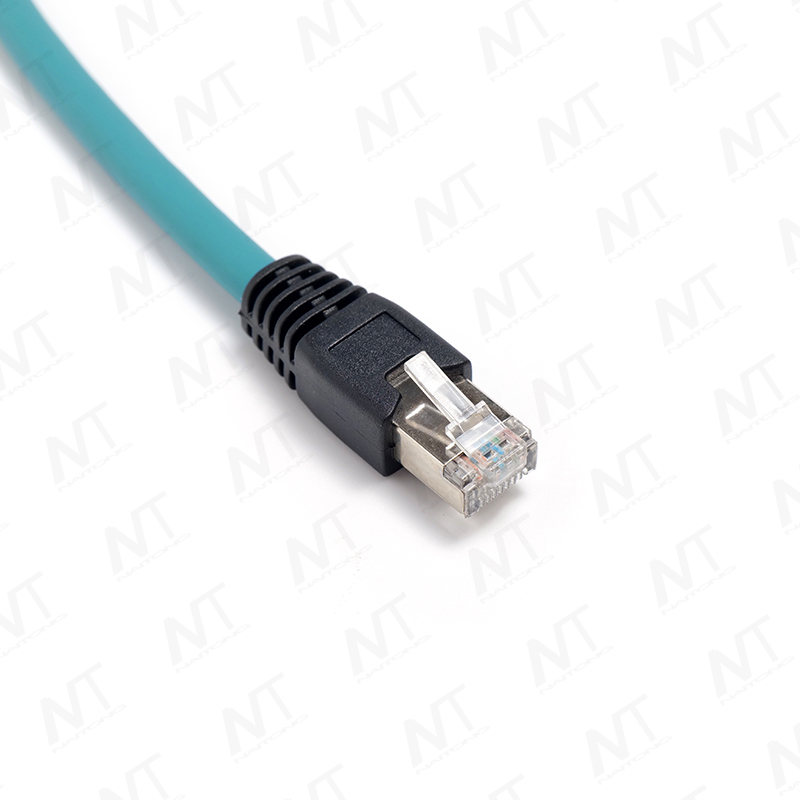

- Standard 8P8C crystal head, compatible with conventional Ethernet interfaces, for connecting computers, switches, and device main unit network ports.

- Industrial-grade teal/cyan TPU/PUR outer cable with high oil resistance, abrasion resistance, and bending resistance, suitable for medical equipment that is frequently moved and disinfected.

- Internal shielded twisted pair structure, supporting 100M/1G Ethernet transmission; some models support PoE (Power over Ethernet) for data + power in one cable.



  • Specifications

Product Name

RJ45 Crystal Head to M12 (Round Aviation Connector) Industrial Ethernet Wire Harness

Application

Medical Equipment, Industrial Equipment

Cable Color

As per customer requirements

Cable Length

As per customer requirements

Conductor

Cu-ETP1 Tinned Copper

Outer Insulation Material

PVC, TPU, TPE

Cable Sheath

TPU/PVC/TPE/Silicone

Connector Type

RJ45 Crystal Head / M12 4P Aviation Connector





Pin Connection

As per customer requirements

Inner Copper

Cu-ETP1 Tinned Copper

Quality Certificates

ISO9001, IATF16949, ROHS, UL, SGS, REACH

Performance Testing:

100% electrical and power performance testing before shipment



  • Application

This type of harness is a commonly used accessory for medical equipment Ethernet connections, with typical applications including:

- Ultrasound diagnostic units, DR/CT equipment: transmitting device data to workstations or PACS systems for real-time image upload and viewing.

- Patient monitors, infusion pumps, ventilators: data exchange with hospital central monitoring systems and information systems, transmitting patient vital signs data or device operating status information.

- Laboratory automation equipment (e.g., biochemical analyzers, immunoassay analyzers): connecting equipment to LIS systems for automated test data upload and recording.
