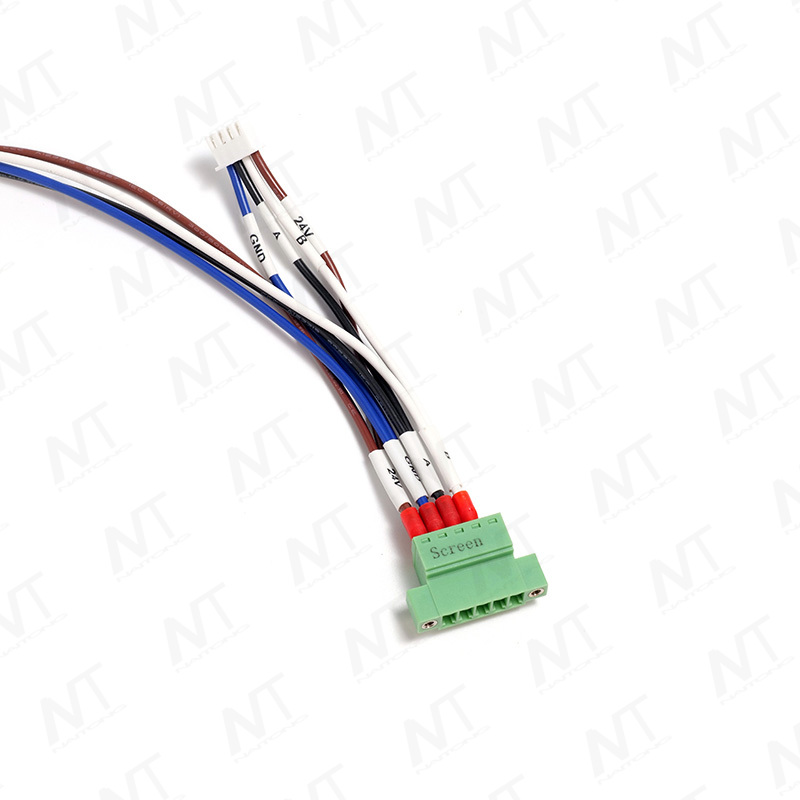

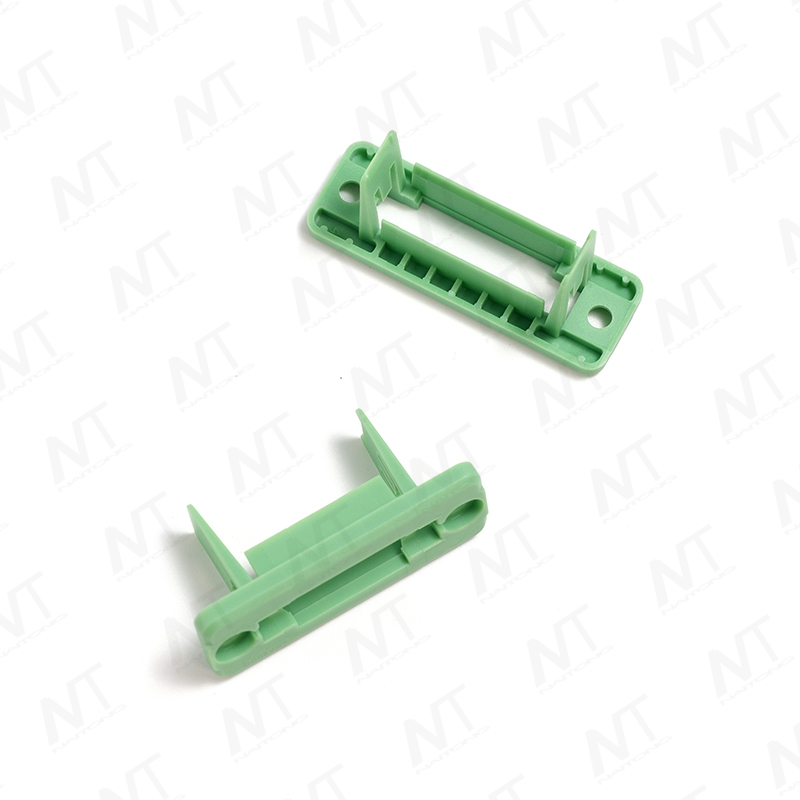

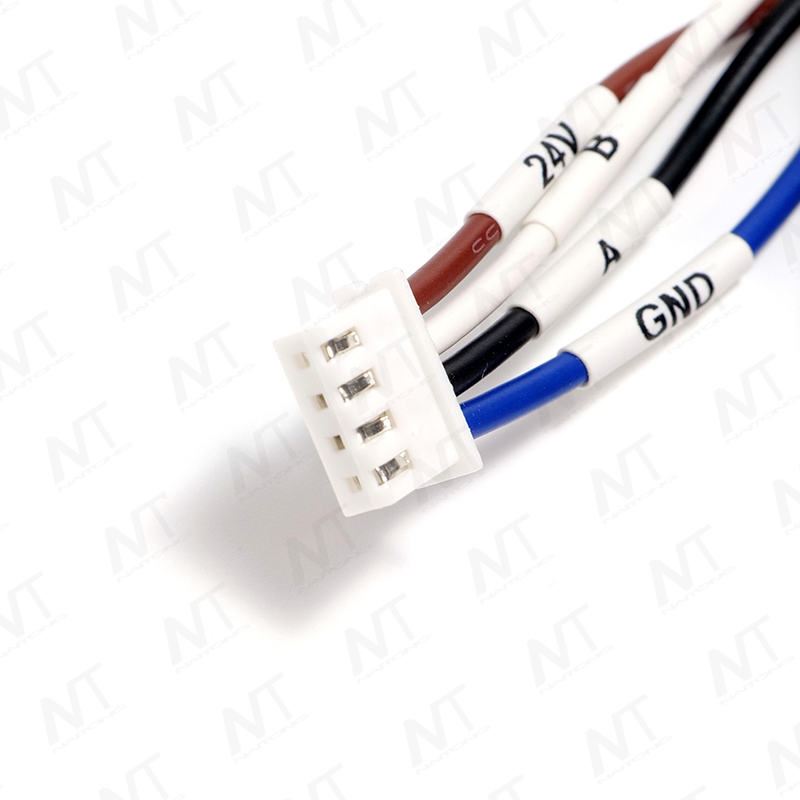

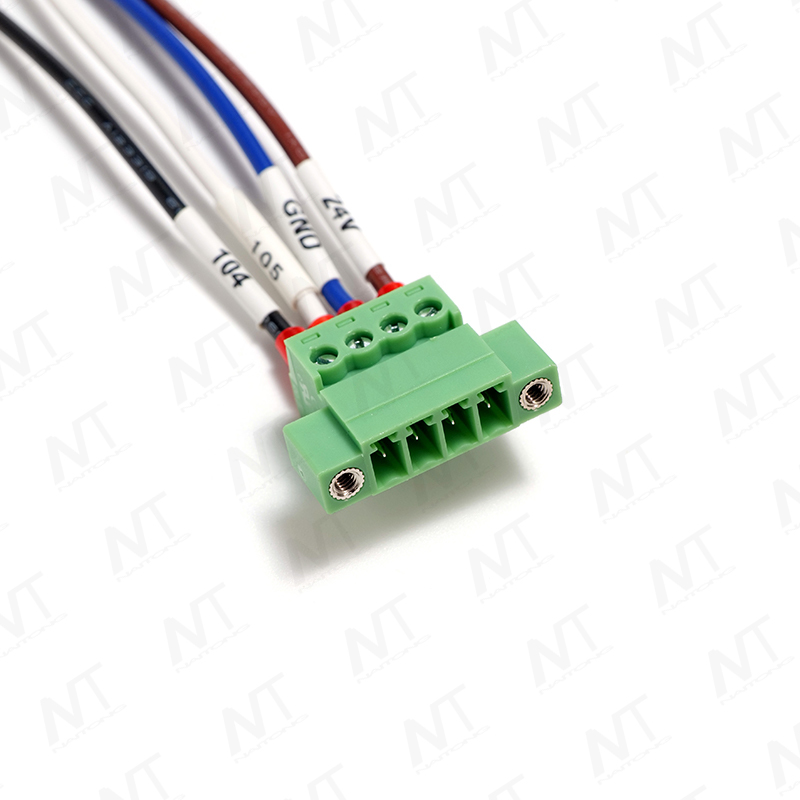

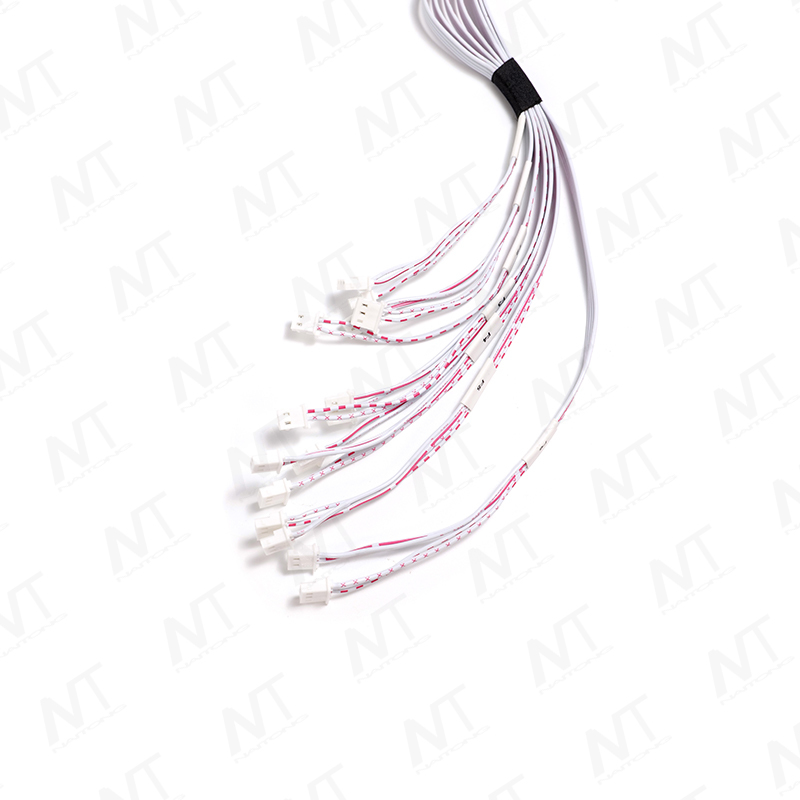

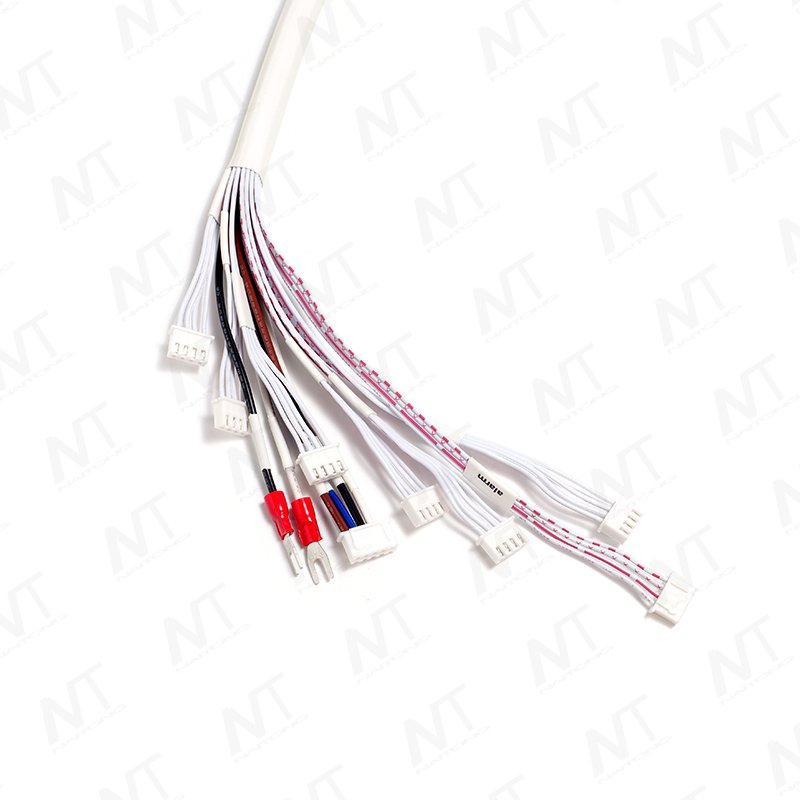

Medical equipment Internal integrated wire harness
Model: NT-Y26030
Minimum Order Quantity: 1,000 pcs
Payment Terms: T/T 30% deposit, balance before shipment
Lead Time: Samples 15–25 days, bulk orders 3–4 weeks
Port of Origin: Shanghai, Vietnam
Services: OEM/ODM, Customization
Packaging: customized box, label, and pallet.
The internal module interconnect harness is the 'vascular and nervous system' of medical equipment. Typical application scenarios include:
- Patient monitors: power and control signal transmission between power boards, main control boards, display modules, button panels, and buzzer/alarm modules.
- Infusion pumps/syringe pumps: power supply and control signals connecting main control boards, drive motors, flow sensors, and alarm modules.
- Small ultrasound/analysis equipment: connecting power modules, main control boards, probe interface boards, cooling fans, and other internal components.
Power Distribution and Signal Branching
The harness receives power/main control board input through the main terminal, then distributes power and signals to different modules via multiple branch connectors, simplifying internal device wire and improving production and maintenance efficiency.
|
Product Name |
Custom Integrated Internal Wire Harness for Medical Equipment |
|
Application |
Medical Equipment, Industrial Equipment |
|
Cable Color |
As per customer requirements |
|
Cable Length |
As per customer requirements |
|
Conductor |
Cu-ETP1 Tinned Copper |
|
Outer Insulation Material |
PVC, TPU, TPE |
|
Cable Sheath |
TPU/PVC/TPE/Silicone |
|
Connector Type |
Customized as per customer requirements |
|
Pin Connection |
As per customer requirements |
|
Inner Copper |
Cu-ETP1 Tinned Copper |
|
Quality Certificates |
ISO9001, IATF16949, ROHS, UL, SGS, ROHS, REACH |
|
Performance Testing: |
100% electrical and power performance testing before shipment |
The internal module interconnect harness is the 'vascular and nervous system' of medical equipment. Typical application scenarios include:
- Patient monitors: power and control signal transmission between power boards, main control boards, display modules, button panels, and buzzer/alarm modules.
