Medical equipment High-current power wire harness/D-Sub (3W3) connector

Model: NT-Y26026

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us
PREV：Medical devices DB25 multi-core signal wire harness (D-Sub25 to flying leads)NEXT：Low-temperature plasma (negative ion) surgical scalpels Main unit connection wire harness
  • Description

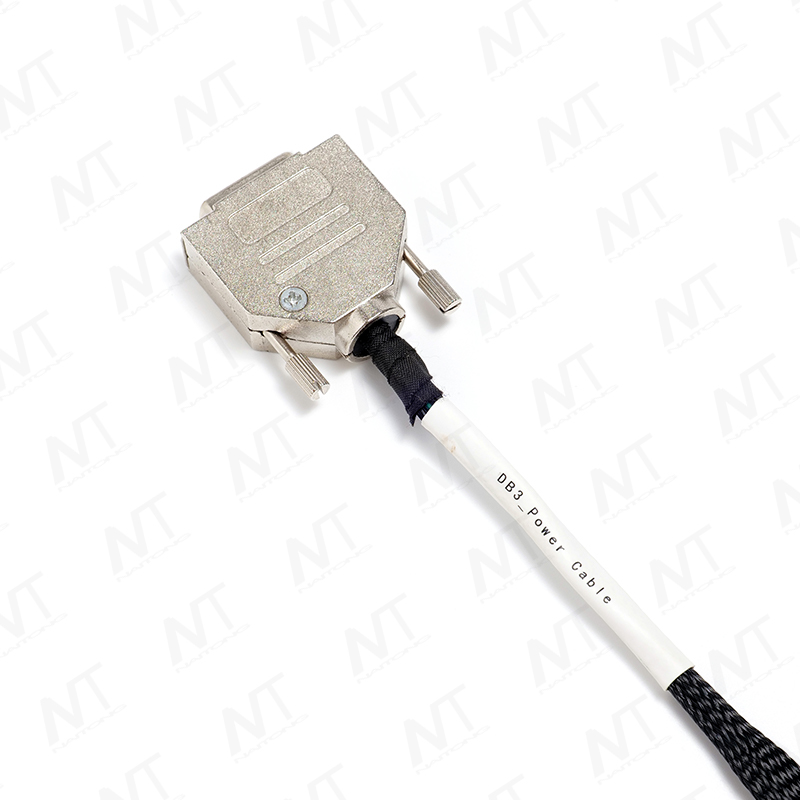

High-current power wire harness for medical equipment, using D-Sub (3W3) high-current connectors, primarily providing stable power transmission for internal or external modules of medical equipment.

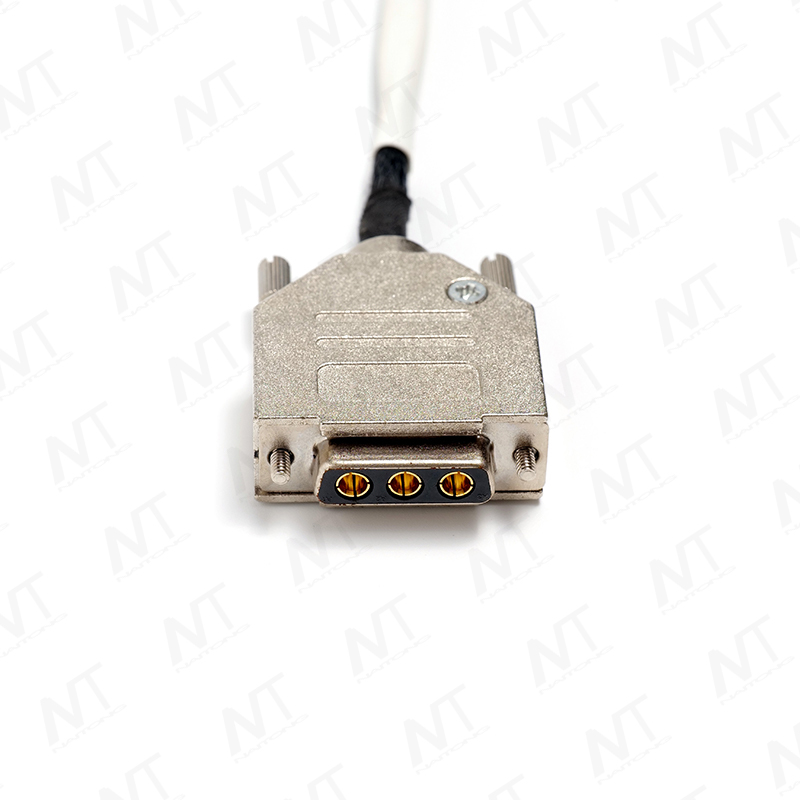

 Gold-plated contacts ensure low contact resistance and high reliability, suitable for frequent mating/unmating and long-term use;

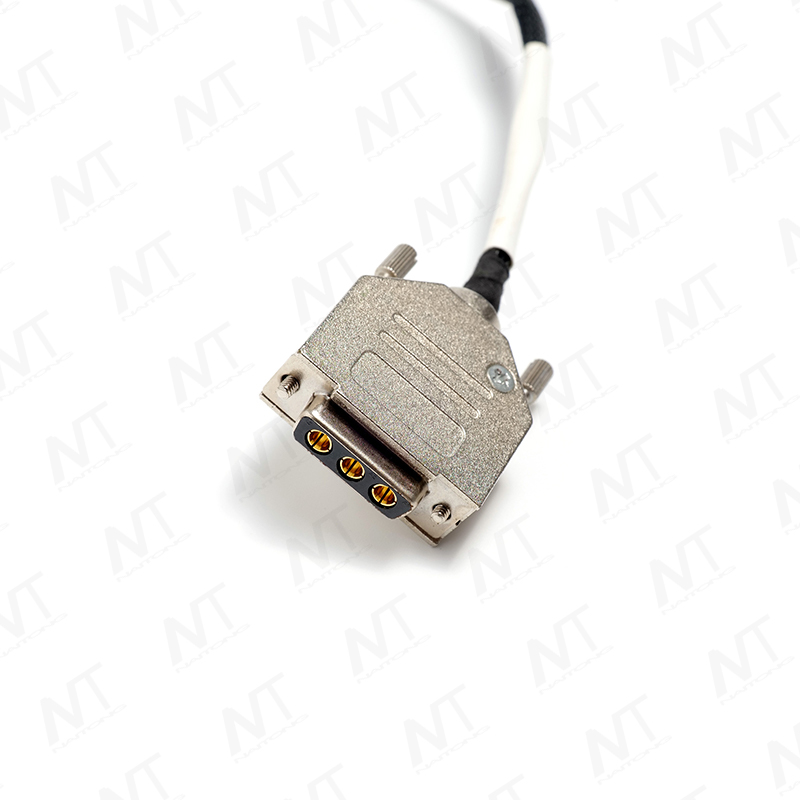

 Metal housing provides both mechanical protection and electromagnetic shielding, preventing power interference from affecting the equipment's precision circuits.

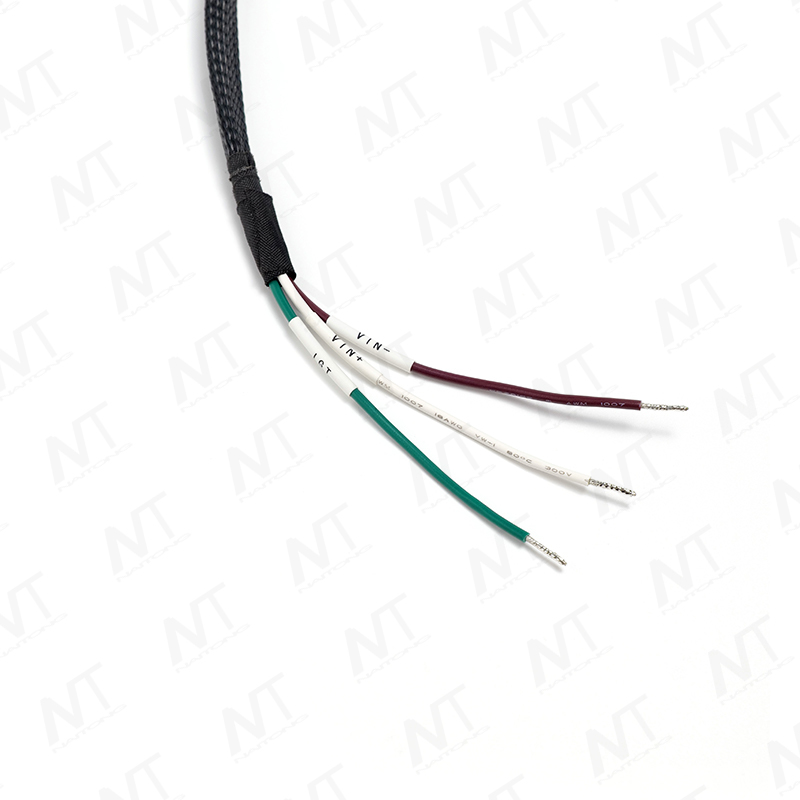

Black braided conduit provides abrasion-resistant and bend-resistant mechanical protection for the cable, adapting to complex wire environments inside medical equipment;

  • Specifications

Product Name

High-Current Power Wire Harness for Medical Equipment / D-Sub (3W3) Connector

Application

Medical Equipment

Cable Color

As per customer requirements

Cable Length

As per customer requirements

Conductor

Cu-ETP1 Tinned Copper, IEC 60601

Outer Insulation Material

PVC, TPU, TPE (compliant with ISO 10993) Sterile Standard

Cable Sheath

TPU/PVC/TPE/Silicone (compliant with ISO 10993) Sterile Standard

Connector Type

Dedicated medical-grade connector with dense pins and a foolproof design for reliable connection of electrical energy, signals, and cooling channels, preventing detachment during surgery.

Pin Connection

As per customer requirements

Inner Copper

Cu-ETP1+Ag Silver-Plated Copper, IEC 60601

Quality Certificates

ISO9001, IATF16949, ROHS, UL, SGS, REACH

Performance Testing:

100% electrical and power performance testing before shipment

  • Application

This type of harness is widely used in medical equipment requiring high-power supply, such as:

- High-frequency electrosurgical units, plasma surgical equipment (powering energy generators)

- Large imaging equipment (e.g., high-voltage power modules of X-ray machines and CT scanners)

- Physical therapy equipment, laser treatment equipment (providing stable power to treatment units)

- Medical ventilators, dialysis machines, and other life-support equipment requiring high-current power supply
