Signal Wire Harness with Waterproof Aviation Connector to RJ45 + 3-Pin Power / Medical Device Harness

Model: NT-Y26028

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：Industrial Ethernet Medical devices wire harness (RJ45 to M12 circular aviation plug)NEXT：Medical devices DB25 multi-core signal wire harness (D-Sub25 to flying leads)

Description

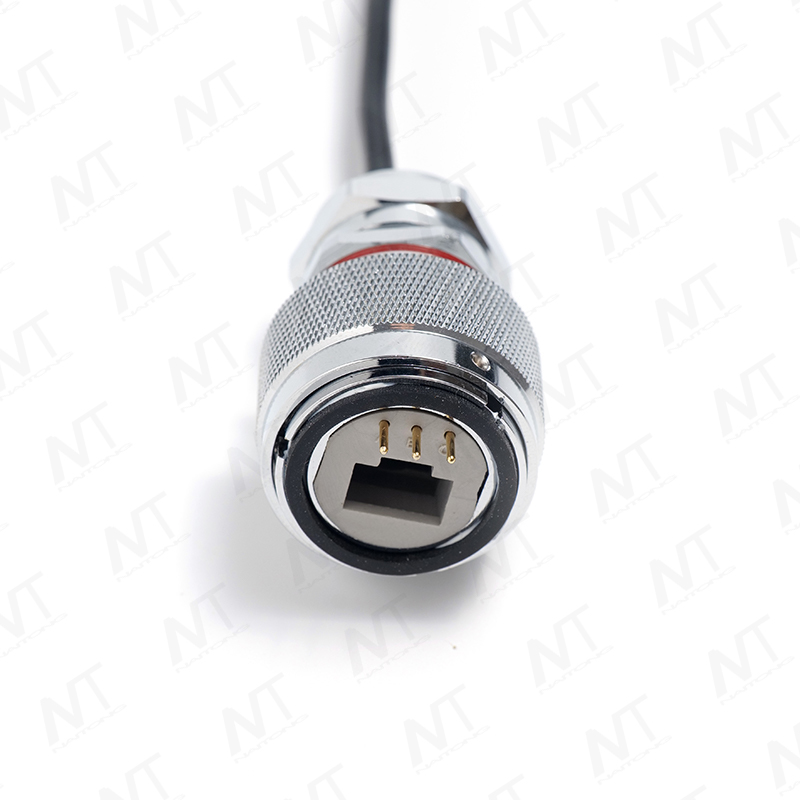

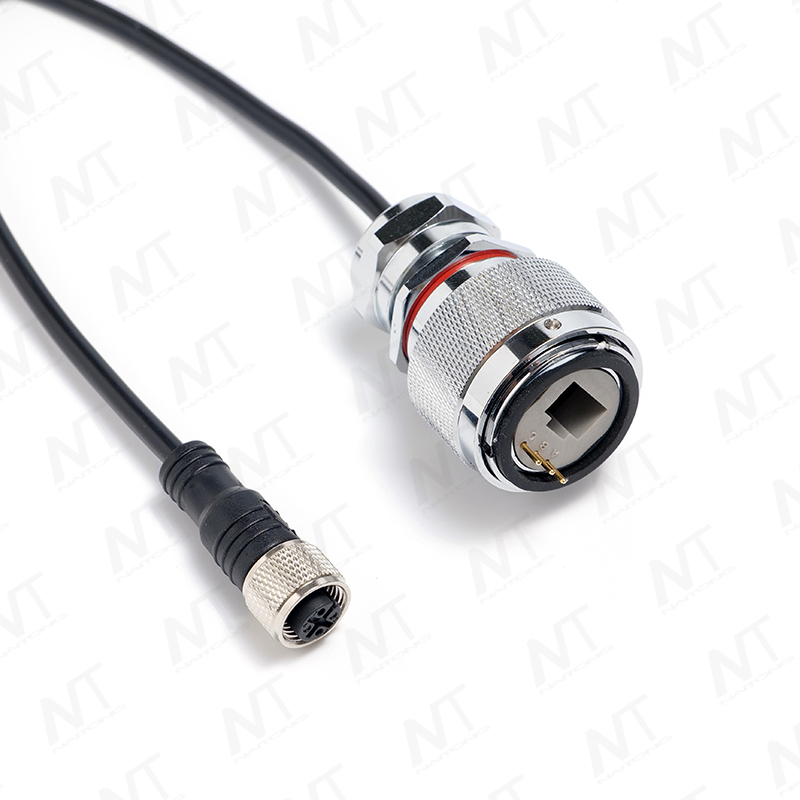

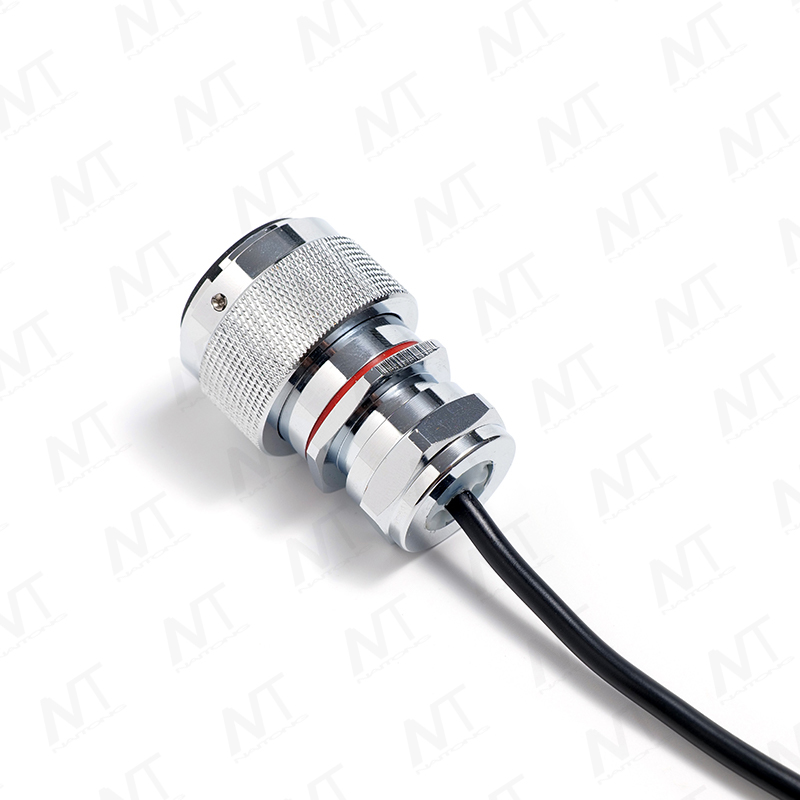

This is a custom signal/power adapter wire harness with a waterproof aviation connector, primarily used for internal or external connections in medical equipment and industrial inspection equipment. Detailed analysis below:

1. The interface internally integrates an RJ45 network port + 3-pin power/signal pins, a composite design that simultaneously transmits Ethernet data and power/control signals, achieving 'multi-purpose in one cable' to reduce device wire complexity.

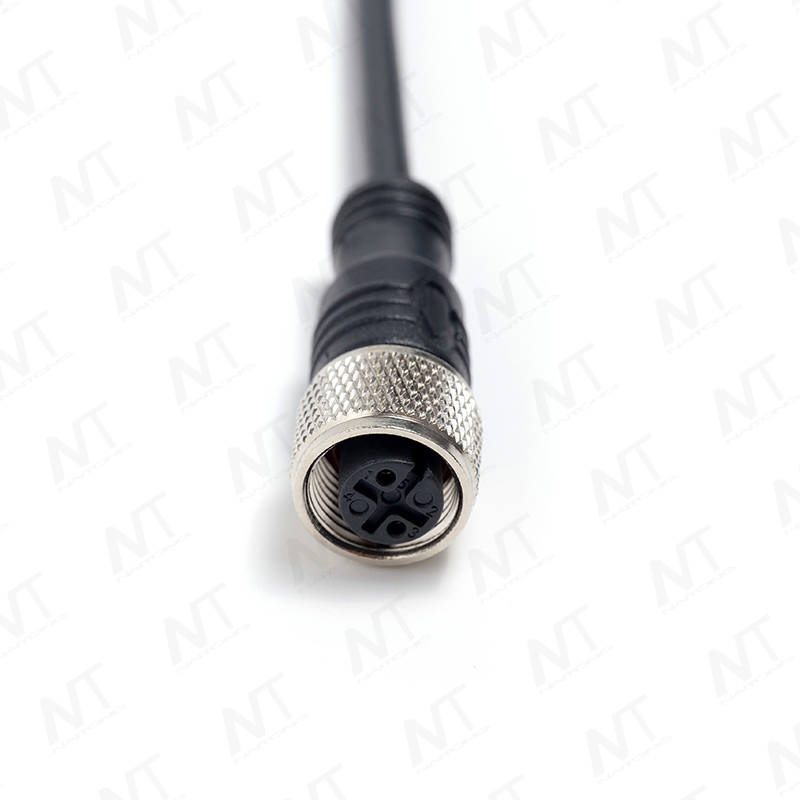

Small round connector (similar to M8/M12 specification) with knurled nut locking structure, also waterproof and anti-loosening, commonly used to connect sensors, power adapters, or expansion modules to equipment.

Specifications

Product Name	Custom Signal Wire Harness with Waterproof Aviation Connector to RJ45 + 3-Pin Power / Medical Device Harness
Application	Medical Equipment, Industrial Equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	RJ45 Network Port + 3-Pin / M12 4P Aviation Connector
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

Integrated Data + Power Connection for Medical Equipment

This 'network port + power' composite harness is commonly found in the following medical equipment:

- Portable/desktop ultrasound diagnostic units: control signal + power transmission between probe and main unit

- Multi-parameter monitors: data/power connection between external modules and main unit

- Laboratory testing equipment (e.g., biochemical analyzers, microplate readers): communication and power supply between sensor modules and main unit

High-Protection Industrial / Medical Equipment Connection

Aviation connector + IP-rated protection design, suitable for environments with multiple liquids and high cleanliness requirements such as operating rooms and emergency rooms, withstanding daily disinfection and liquid splashing to ensure stable equipment operation.
