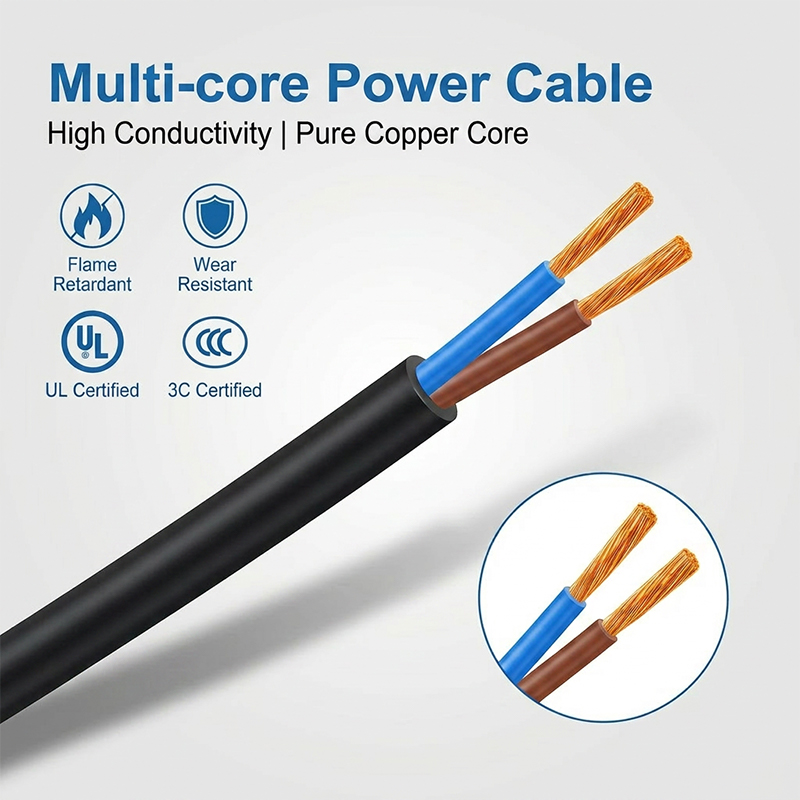

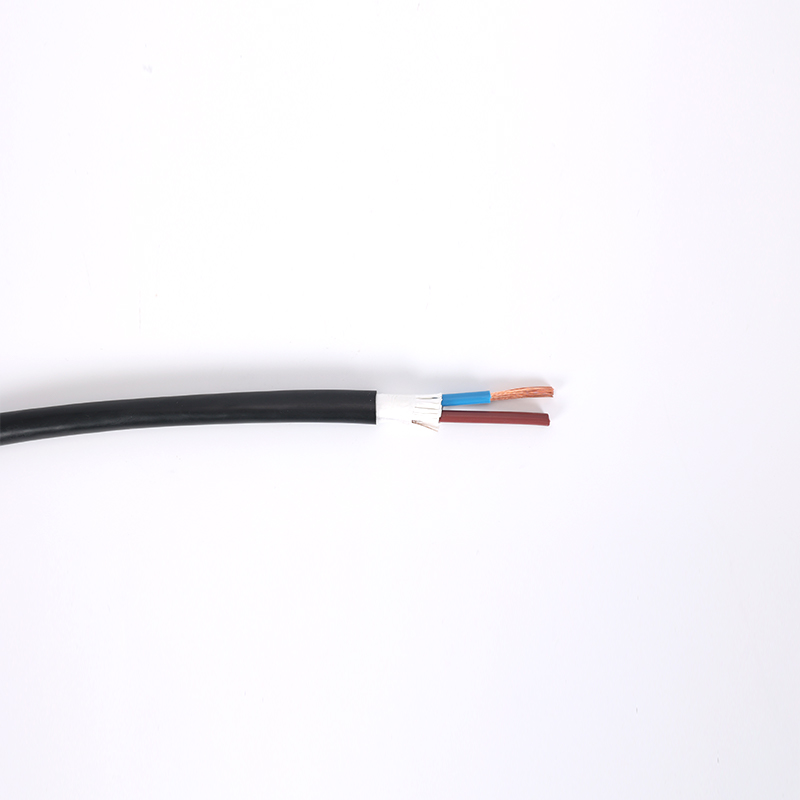

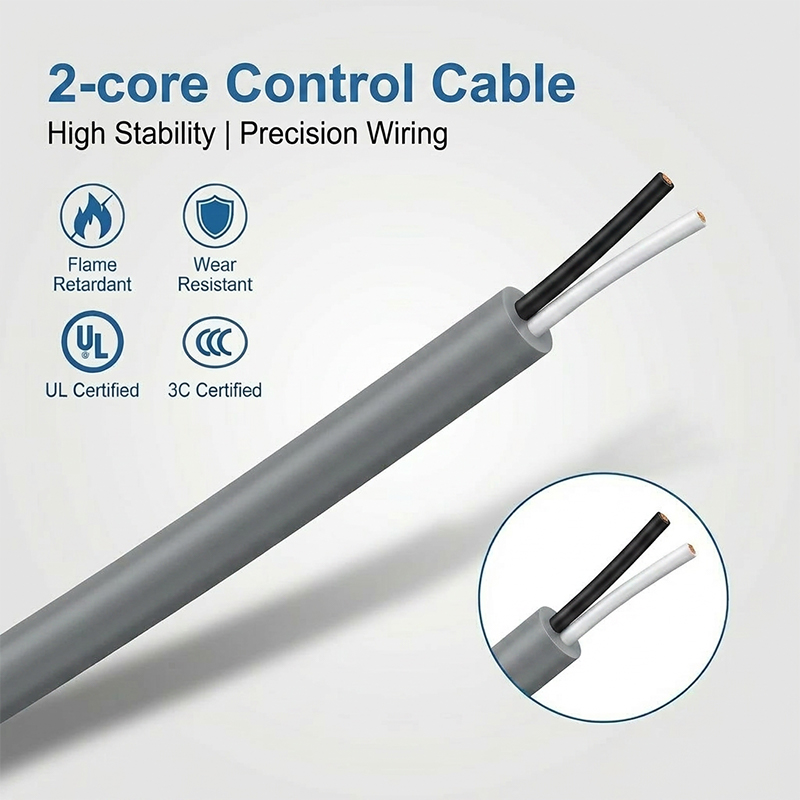

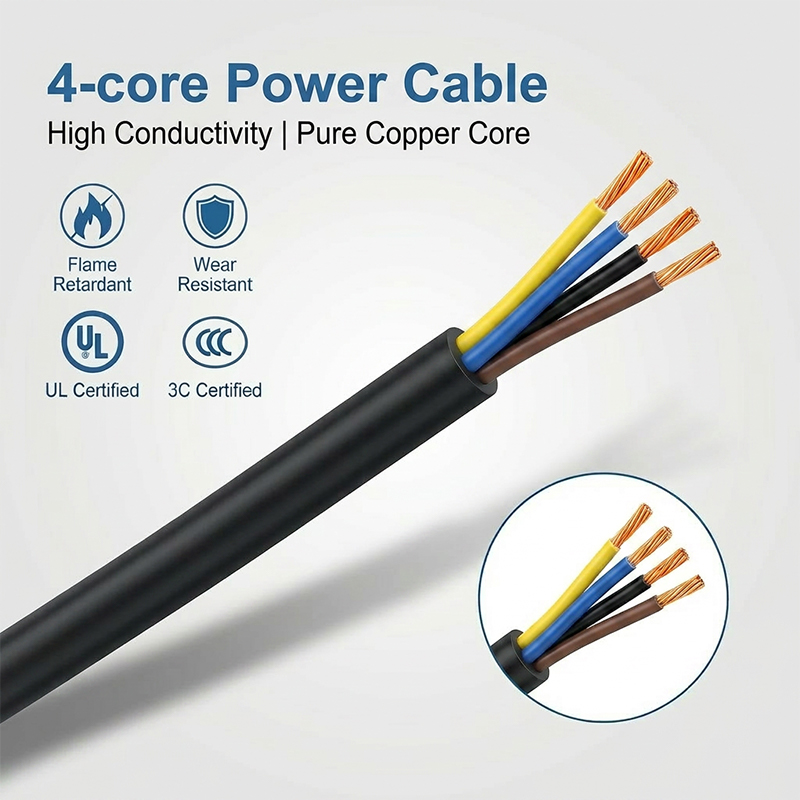

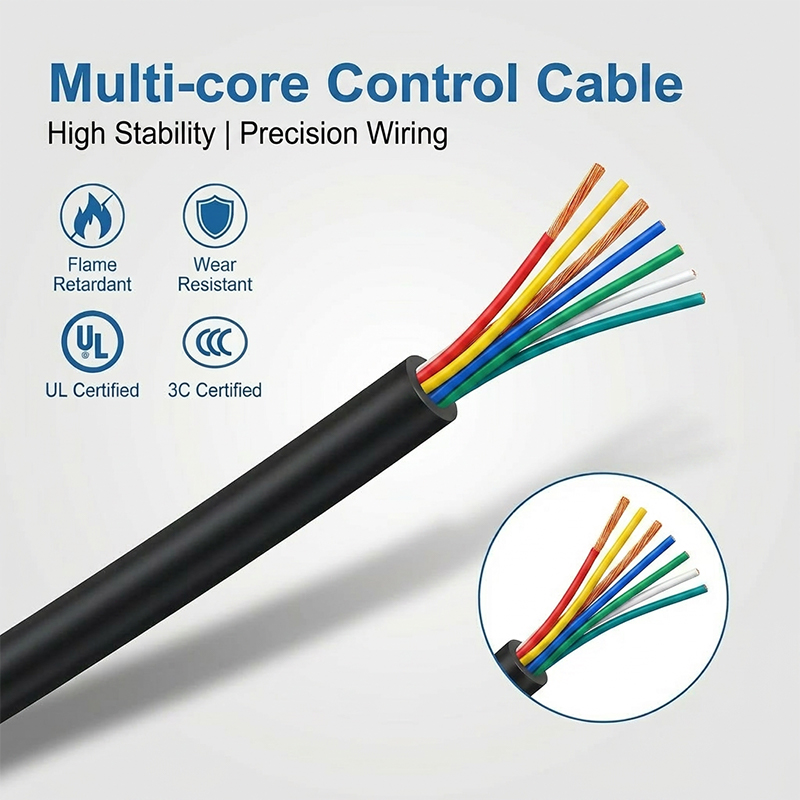

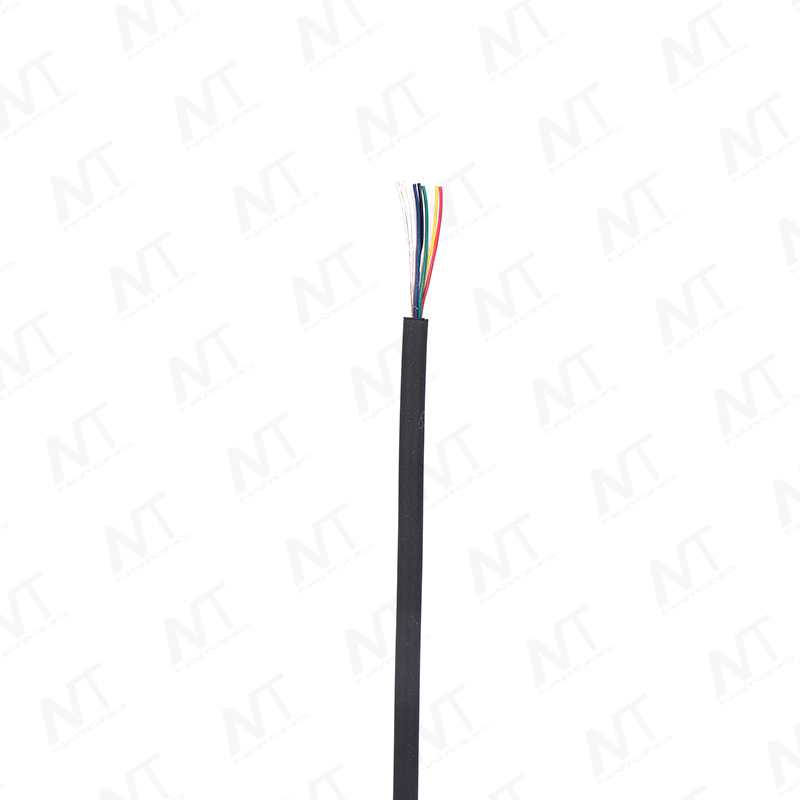

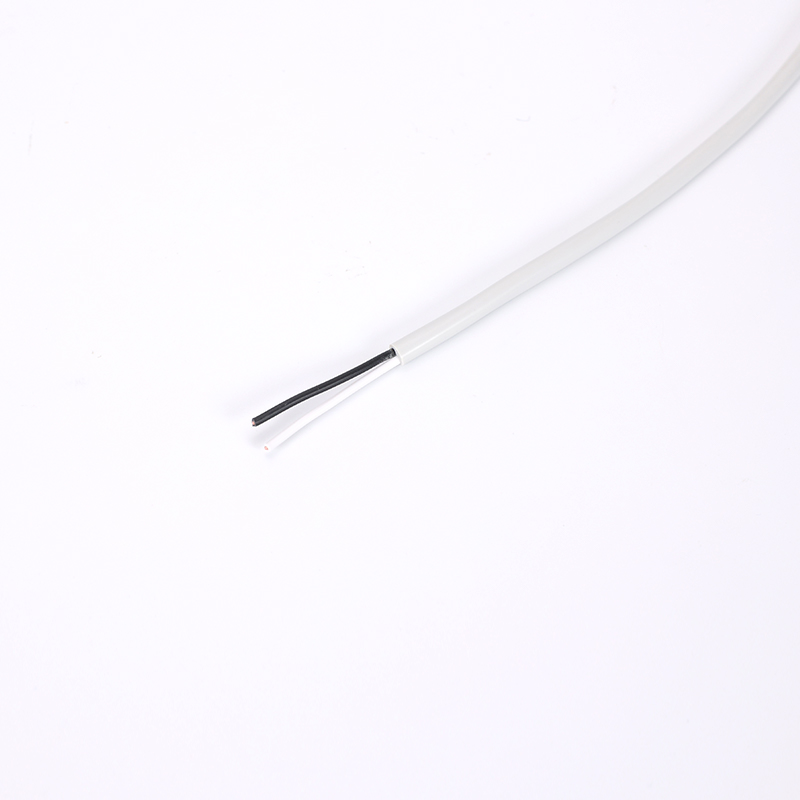

UL2464 multi-core wire

Product Description and Application

Rated Voltage: 300V, Rated Temperature: -40℃~+80℃

Conductor: 30AWG-10AWG bare copper or tin-plated wire, multi-core stranded

PVC Insulation, PVC Sheath, Shielding layer uses wrapped aluminum foil with an overlap rate ≥25%, plus tin-plated copper wire braiding 16×6/0.1

Can pass UL VW-1 and CSA FT1 FT2 vertical and horizontal burning tests

Contact us

PREV：UL2464 multi-core shielded wire NEXT：UL1185 single-core wire

Description

Applicable Environment Suitable for computers/office consumer electronics, industrial automation and control equipment, home appliances and smart homes, medical instruments (low interference shielding model), automotive/small equipment, and other scenarios;

Specifications

Conductor				Insulation		Wrap-up shielding	Cable	Maximum conductor resistance at 20℃
Line gauge	Wire count/wire diameter	Outer diameter	Number of core wires	Insulation thickness	Outer diameter	Wire count/wire diameter	Sheath thickness	Maximum conductor resistance at 20℃
AWG	NO/mm	mm	C	mm	mm	NO/mm	mm	Ω/KM
28	7/0.127	0.38	2-10	0.26	0.90	AL-mylar	0.76	72.00
26	7/0.16	0.48	2-10	0.26	1.00	AL-mylar		45.20
24	11/0.16	0.61	2-10	0.25	1.10	AL-mylar		28.30
22	17/0.16	0.76	2-10	0.27	1.30	AL-mylar		16.70
20	26/0.16	0.94	2-10	0.28	1.50	AL-mylar		10.50
18	41/0.16	1.20	2-10	0.30	1.80	AL-mylar		6.64
