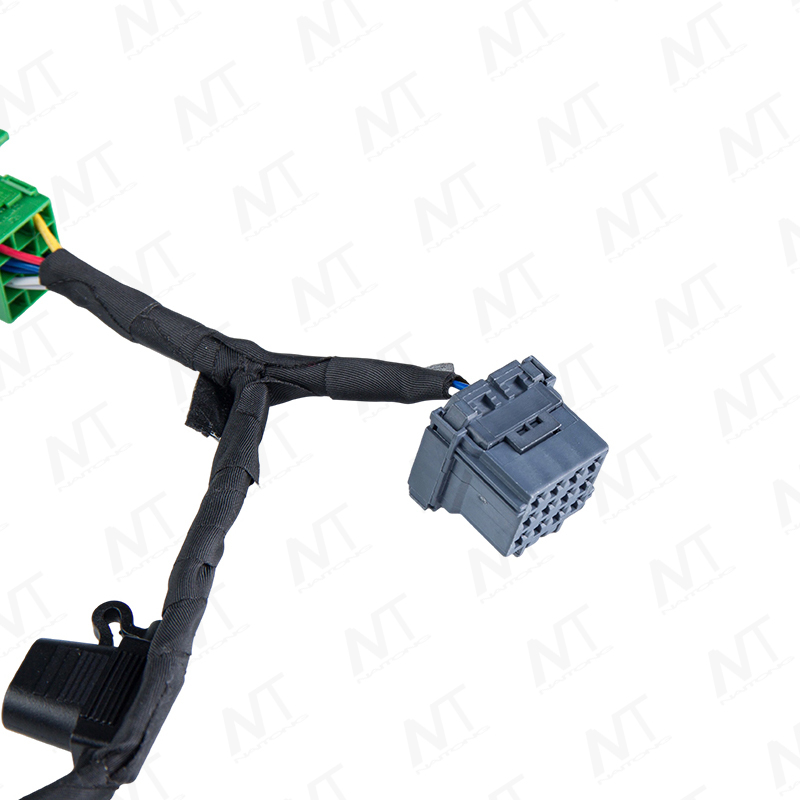

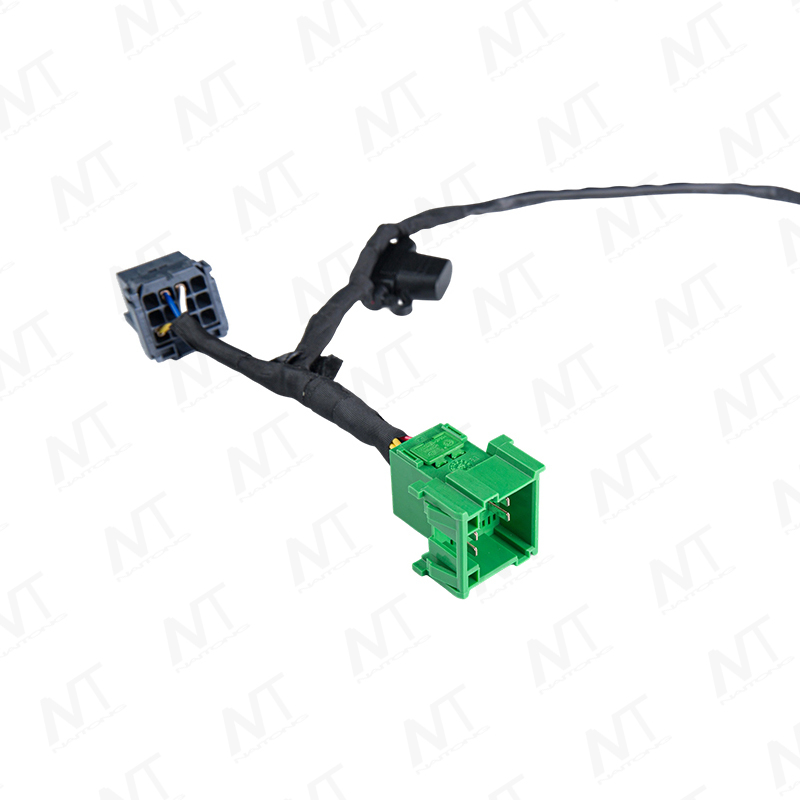

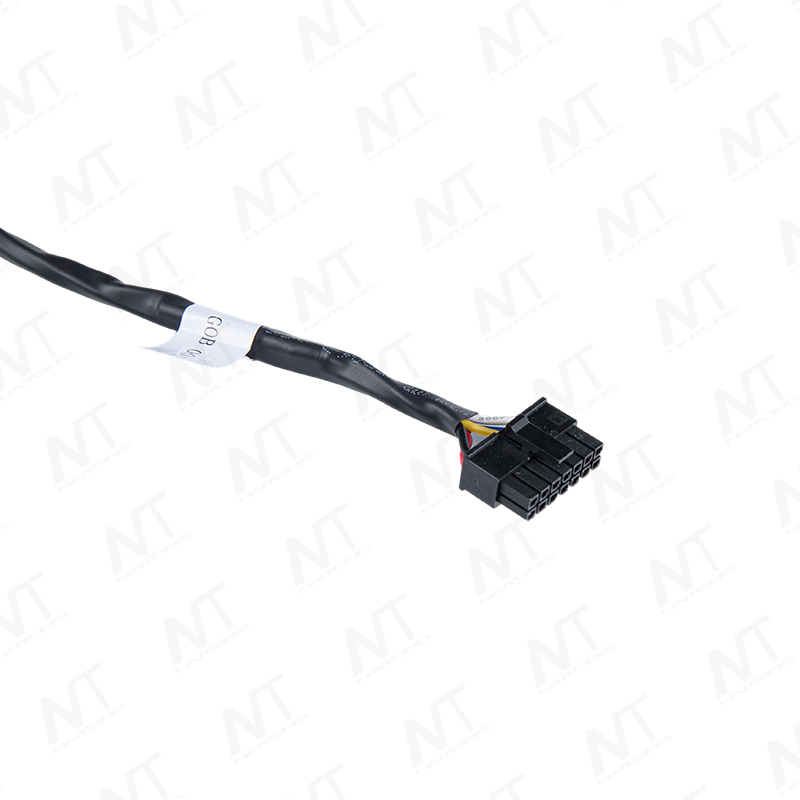

Automotive wire harness assembly with MCP connectors

Model: NT-OBD26007

Minimum order quantity: 500 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Truck diagnostic SAE J1939 conversion cable with APEX 2.8MM series connectors NEXT：Right-angle SAE J1939 to TE 967644-1 communication cable

Description

We have a wide range of material sources, and we can also support customers in customizing products to replace their existing ones. We can offer customers a variety of options, such as DEUTCH, JST, TE, MOLEX, KST, CINCH, DELPHI, etc.

For this automotive wire harness, we typically use AMP TYCO components. AMP MCP connectors and terminals are designed for automotive electronics and electrical applications, including use in environments with prolonged high vibration, high current, and high ambient temperatures. The unsealed connector housing, model number 1-967627-1, belongs to the AMP MCP 2.8, AMP MCP connector system. It is a male terminal housing with a 2.8mm pitch , wire-to-wire system, 12-pin connector, and other options with higher pin counts are available. Rated voltages are 12V and 24V, suitable for signal circuit applications. AMP MCP housing connectors offer 1-92 pin arrangements with locking snap or lever snap mating mechanisms. The AMP MCP housing accommodates 9.5, 6.3/4.8K, 2.8, and 1.5K size terminals, with maximum currents up to 100 amps.

Specifications

Product Name		Custom automotive wire harness assembly with MCP connector
Application areas		auto industry
Cable color		TXL cables are available in solid colors and striped patterns, with optional custom printing and/or numbering.
Cable length		According to customer requirements
Wire insulation		Cross-linked polyethylene (XLPE)
Specifications (cable)	Ford Specifications:	Ford (M1L-123A)
	Chrysler Specifications	Chrysler (MS-8288)
	SAE Specification	SAE J-1128
Number of positions		12,25,36,
Connector spacing		2.8mm
Operating temperature range		-40. 120 ℃
Cable sheath		XLPE insulating sleeve (black)
Connector type		Hybrid type, male terminal housing, wire-to-wire, 12-bit, 5mm [.197in] center distance, green, signal
Pin connection		Pin connection
Inner copper		Tin-plated copper
High quality		Durable relays and heavy-duty relay sockets with wire are made of high-quality materials to ensure superior quality.
Quality certification		ISO9001, IATF16949, ROHS, UL, SGS, ROHS, REACH
Performance testing:		100% terminal inspection & 100% electrical performance testing & 100% FQC & AQL=0.65
