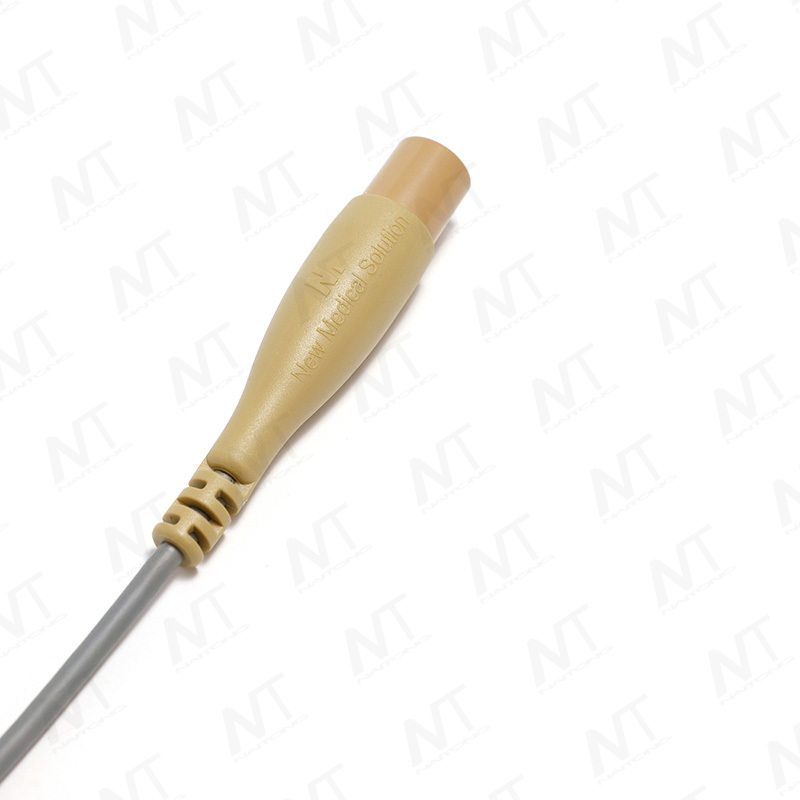

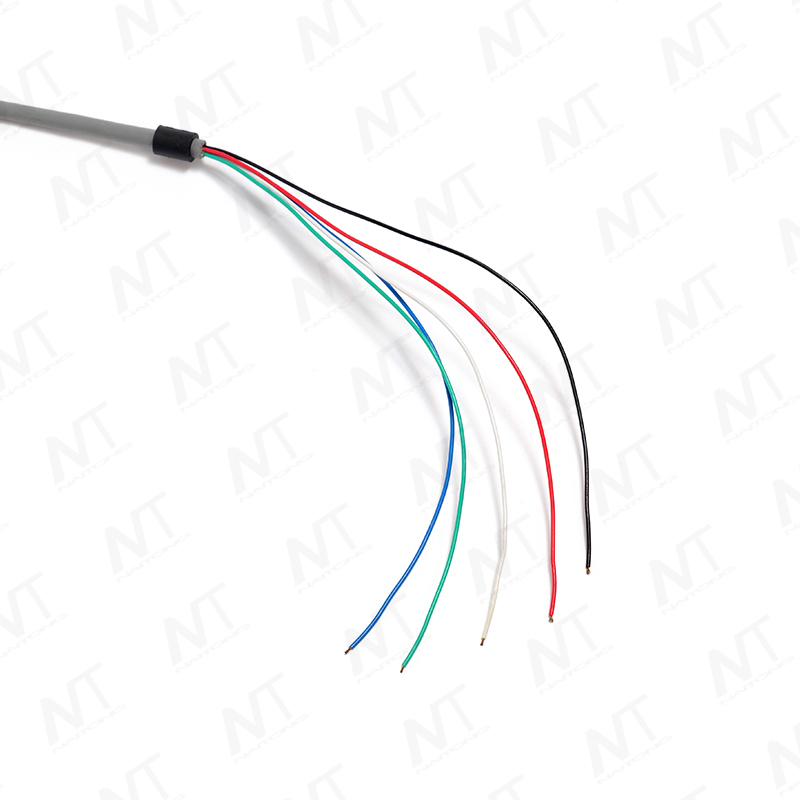

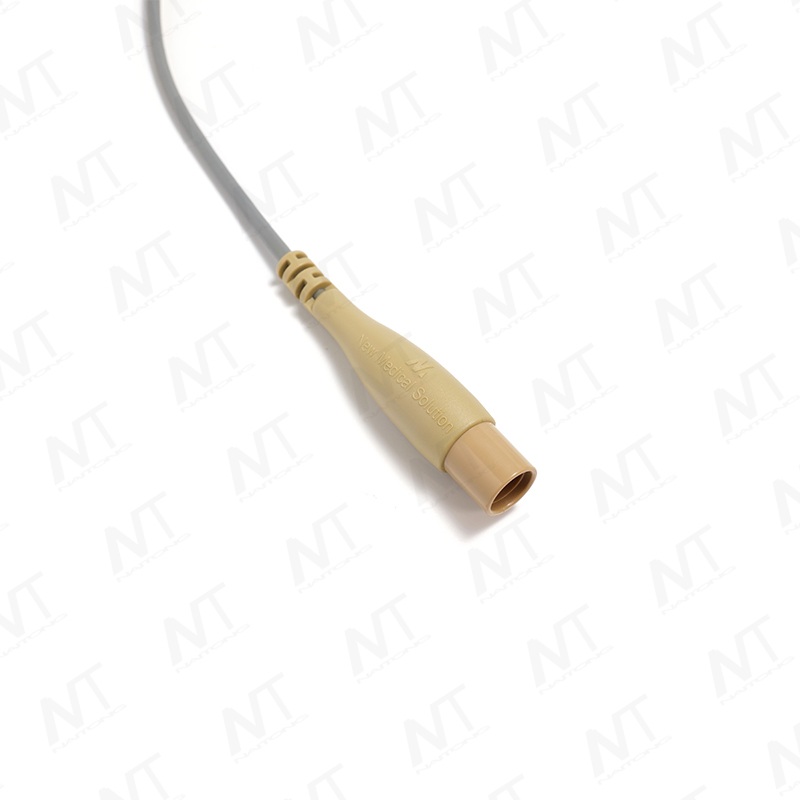

Low-temperature plasma (negative ion) surgical scalpels Main unit connection wire harness

Model: NT-Y26025

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：Medical equipment High-current power wire harness/D-Sub (3W3) connector NEXT：No next article

Description

This is the main unit connection wire harness for a low-temperature plasma (anion) surgical scalpel — the core component linking the surgical electrode handle to the plasma main unit, serving as the 'lifeline' for electrical energy, control signals, and cooling medium transmission during surgery.

1. High-Frequency Energy Transmission

Transmits the high-frequency energy output (typically RF/plasma energy) from the plasma main unit, providing the blade with energy required for cutting, ablation, and hemostasis, enabling tissue treatment at low temperatures.

2. Control Signal Transmission

Transmits button signals from the handle (cut/coagulation mode switching), foot switch control signals, while feeding back electrode status and temperature data to the main unit for precise control and safety protection.

3. Safety Circuit and Grounding

Built-in safety circuit continuously monitors electrode connection status and current circuit integrity; the main unit automatically stops output upon anomaly to prevent electric shock or burn risks to patients or surgeons.

Specifications

Product Name	Main Unit Connection Wire Harness for Low-Temperature Plasma (Anion) Surgical Scalpel
Application	Medical
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1+Ag Silver-Plated Copper, IEC 60601
Outer Insulation Material	PVC, TPU, TPE (compliant with ISO 10993) Sterile Standard
Cable Sheath	TPU/PVC/TPE/Silicone (compliant with ISO 10993) Sterile Standard

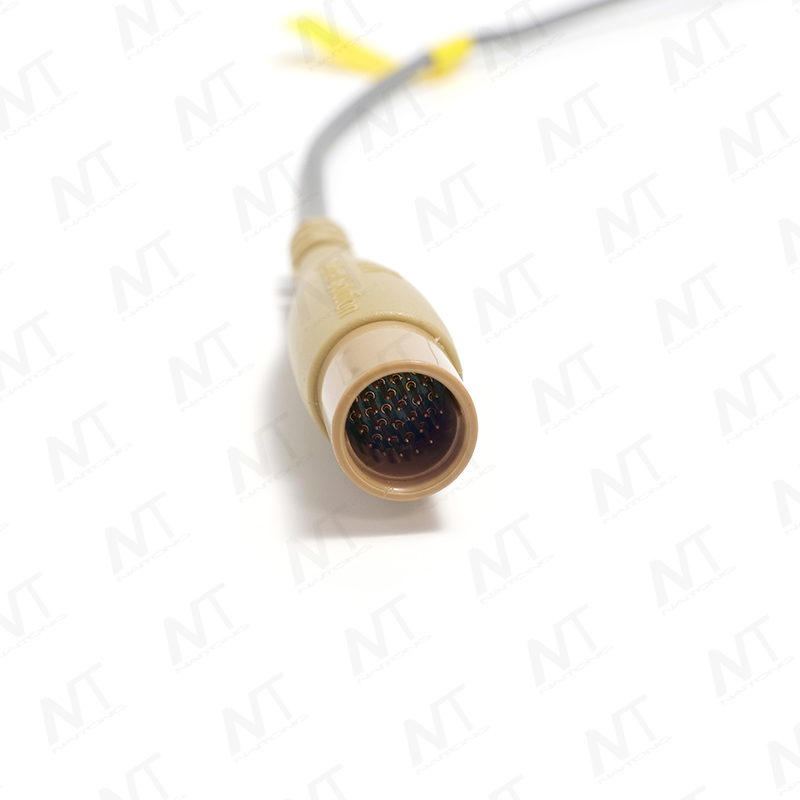

Connector Type	Dedicated medical-grade connector with dense pins and a foolproof design for reliable connection of electrical energy, signals, and cooling channels, preventing detachment during surgery.
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1+Ag Silver-Plated Copper, IEC 60601
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

1. Surgical Function: Without this harness, the main unit cannot transmit energy to the electrode, the plasma blade cannot operate, and cutting, ablation, and hemostasis procedures cannot be performed.

2. Safety Protection: Harness failure (wire breakage, poor contact) causes energy output interruption and circuit anomalies, preventing the main unit from functioning properly, and may trigger patient skin burns due to abnormal current circuit.

3. Sterility Compatibility: Single-use electrode harness are typically integrated in design to prevent cross-infection; reusable harness must withstand high-pressure steam/ethylene oxide sterilization to meet surgical room sterility requirements.
