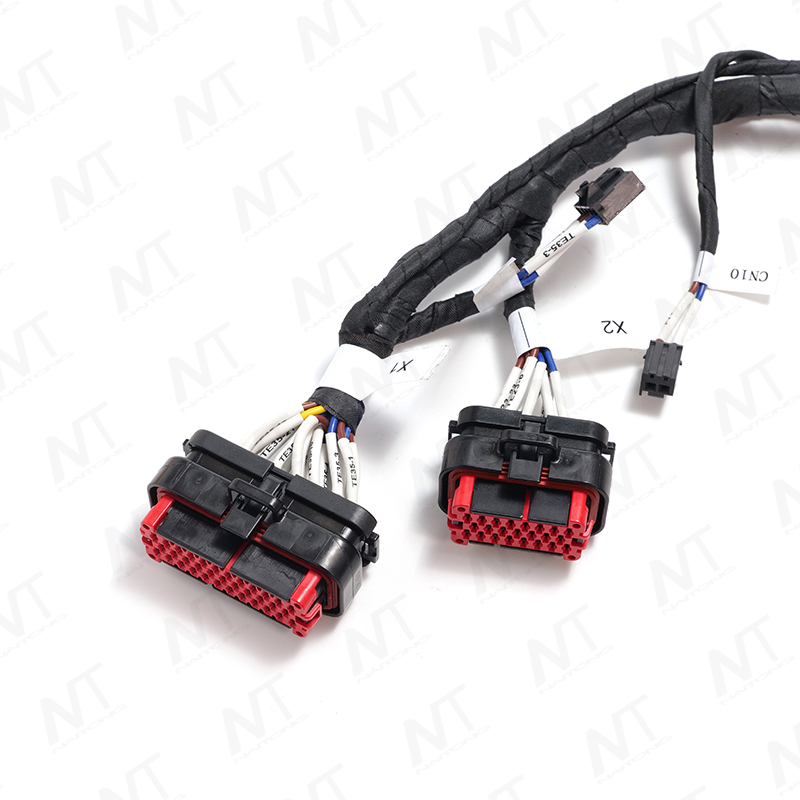

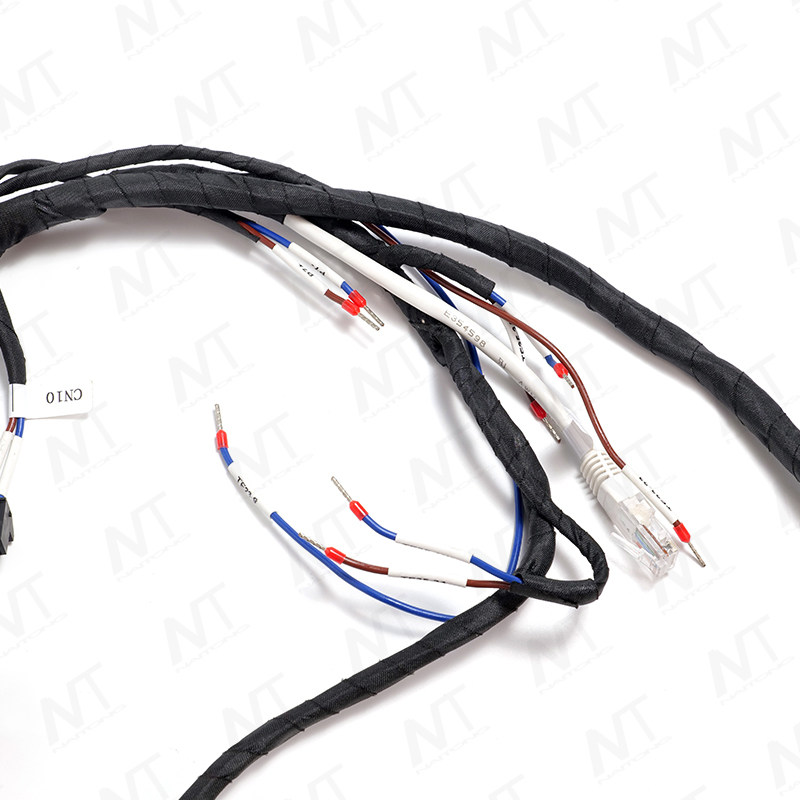

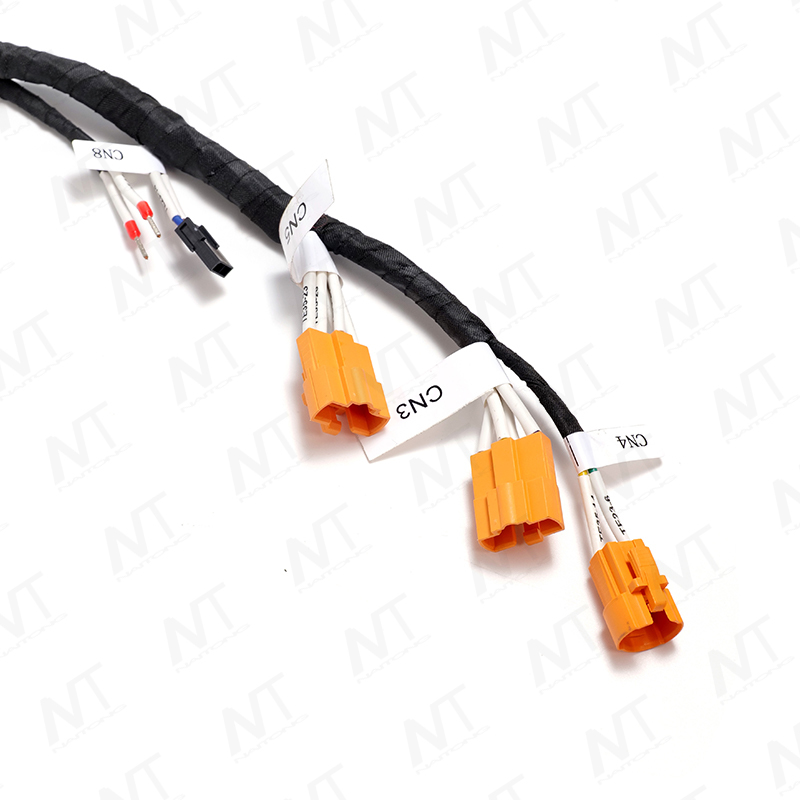

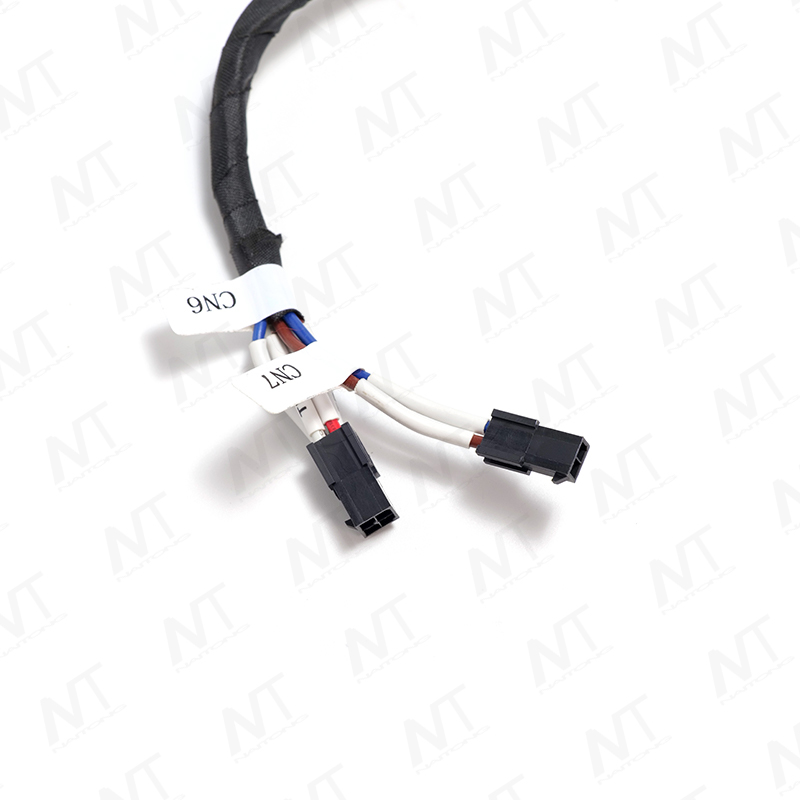

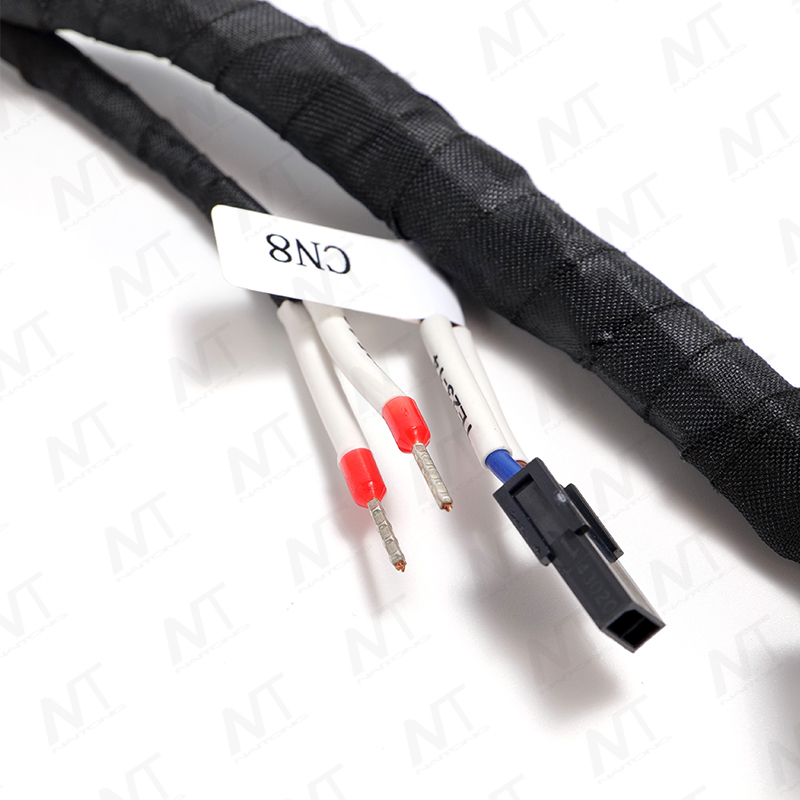

ECU connectors automotive dashboard wire harness robotic wire harness

Model: NT-OBD26004

Minimum order quantity: 500 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Heavy-duty truck J1939 green connector Diagnostic cable NEXT：OBD2 male to Y- type extended diagnostic cable

Description

This custom cable assembly utilizes TE AMPSEAL connectors. Cable fabrication strictly adheres to IPC620 standards, and our professional team provides extensive advice and technical support to facilitate efficient new product development. These advantages help customers significantly shorten delivery cycles with the most competitive costs and consistent quality. NT possesses the flexibility and capability to adapt to the entire product lifecycle, covering all stages from design to production. NT can collaborate with customers from the product concept stage to ensure optimal performance at the lowest manufacturing cost.

This OEM/ODM wire harness assembly features an ECU-sealed connector and is designed specifically for the automotive industry. The connector is an original waterproof and sealed type. The entire automotive wire harness assembly is encased in corrugated tubing for protection. The branching points are secured with 3M tape. Appropriate automotive wire harness, such as AVSS, AVS, FLRY, TXL, and GXL, can be selected according to customer requirements.

Specifications

Product Name	Customized ECU connectors for automotive dashboard wire harness, and wire harness for AGV (Automated Guided Vehicle) intelligent material handling robots.
Application	Car dashboard, AGV intelligent handling robot
Cable color	According to customer requirements
Cable length	According to customer requirements
Conductor	Cu-ETP1 bare wire or tin-plated, conforming to DIN EN13602 standard.
External insulation material	PVC (Polyvinyl Chloride) (Thin-walled)
Cable sheath	PVC/TPE/rubber/silicone, etc.
Connector type	Plug housing assembly for 1.0mm socket contacts, single locking , multi-pin option available.
Main connector spacing	ECU 35-pin rectangular housing connector plug, natural color, 0.157" (4.00mm)
Pin connection	According to customer requirements
Inner copper	Tin-plated/bare copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, ROHS, REACH
Performance testing:	100% electrical and power performance testing before shipment

Application

Wire harness play a crucial role in connecting various components in automotive dashboards and AGVs (Automated Guided Vehicles) . They are equipped with ECU 35-pin rectangular housing connector plugs, natural color, 0.157 inches (4.00 mm). Automotive wire harness are a combination of wires, terminals, and connectors, or an electrical wire system that runs throughout the vehicle and transmits information and electrical energy, used for transmitting information and energy within the automobile.
