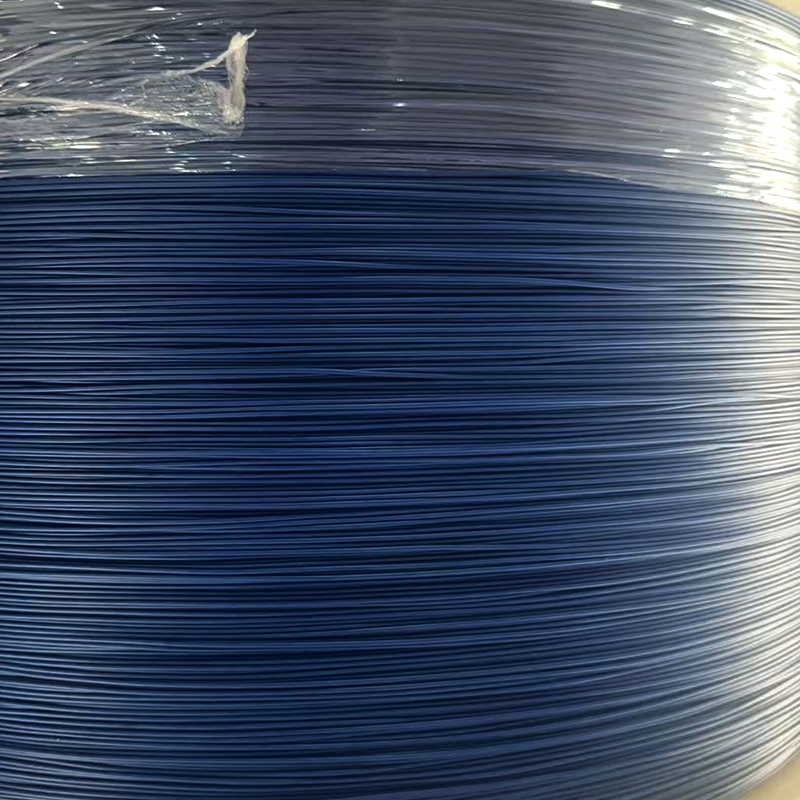

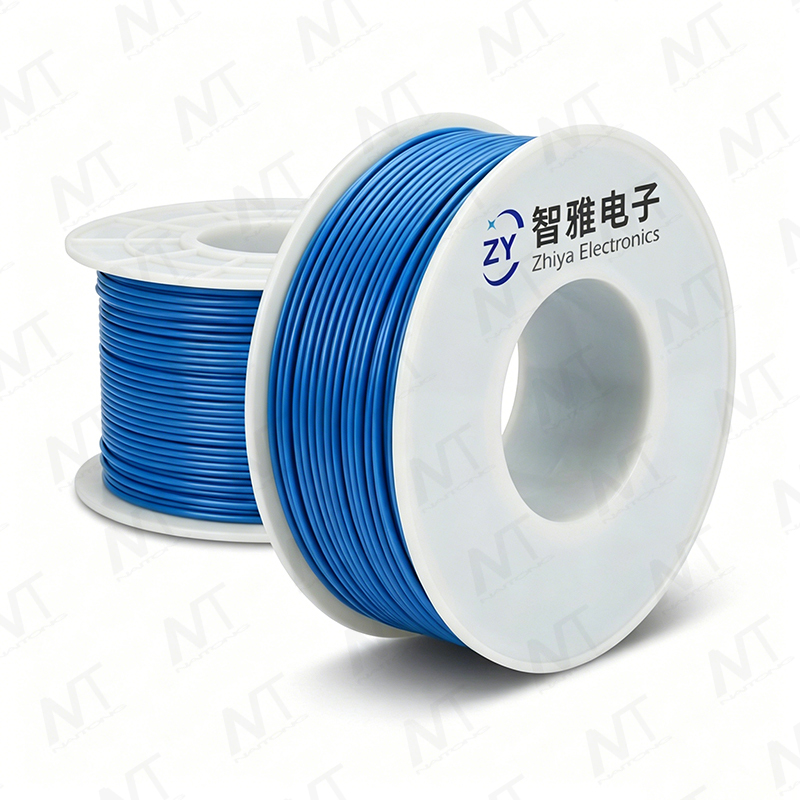

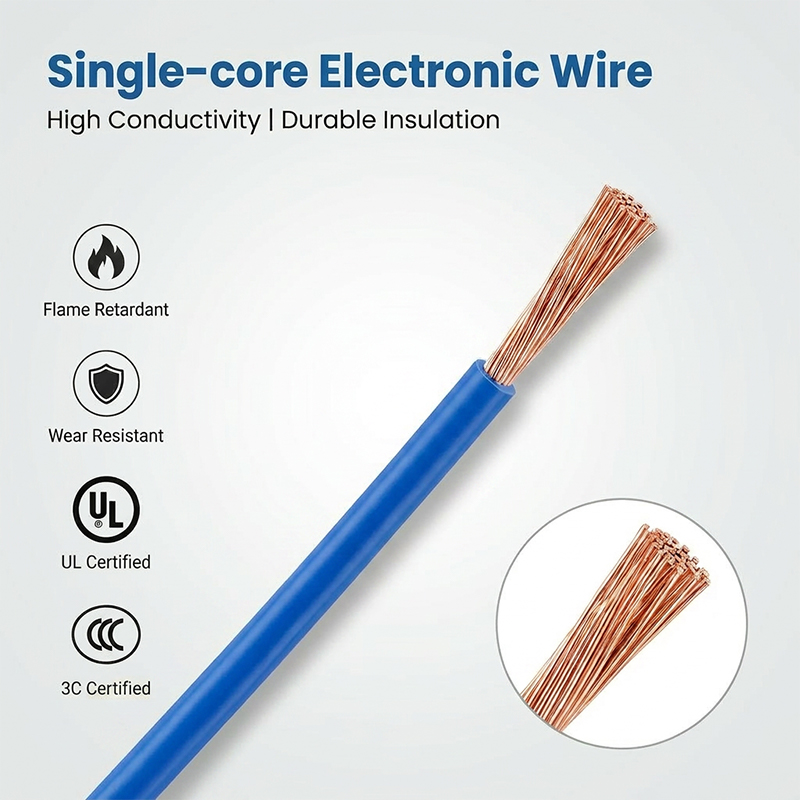

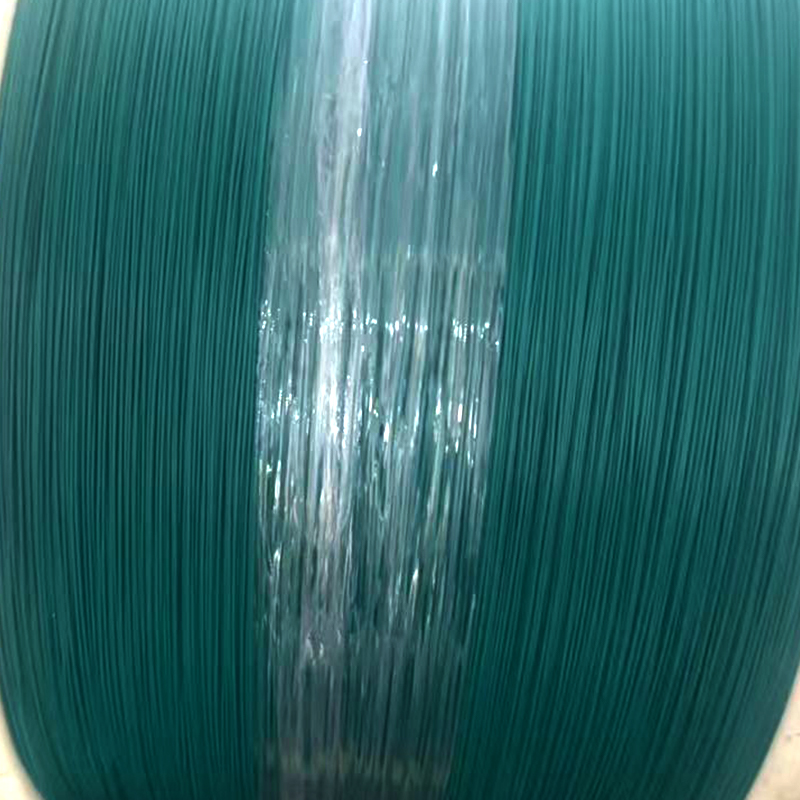

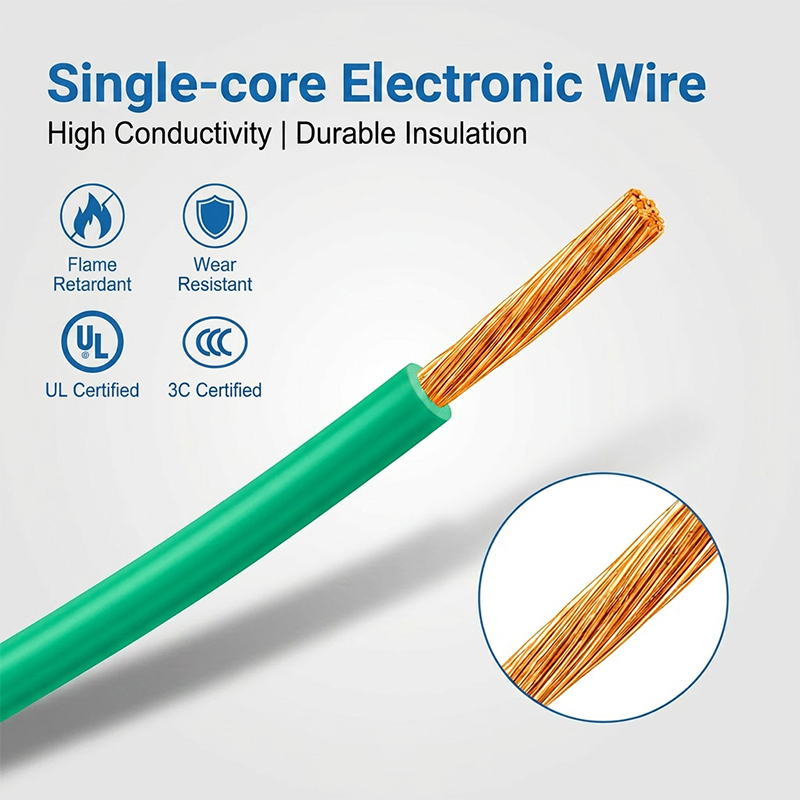

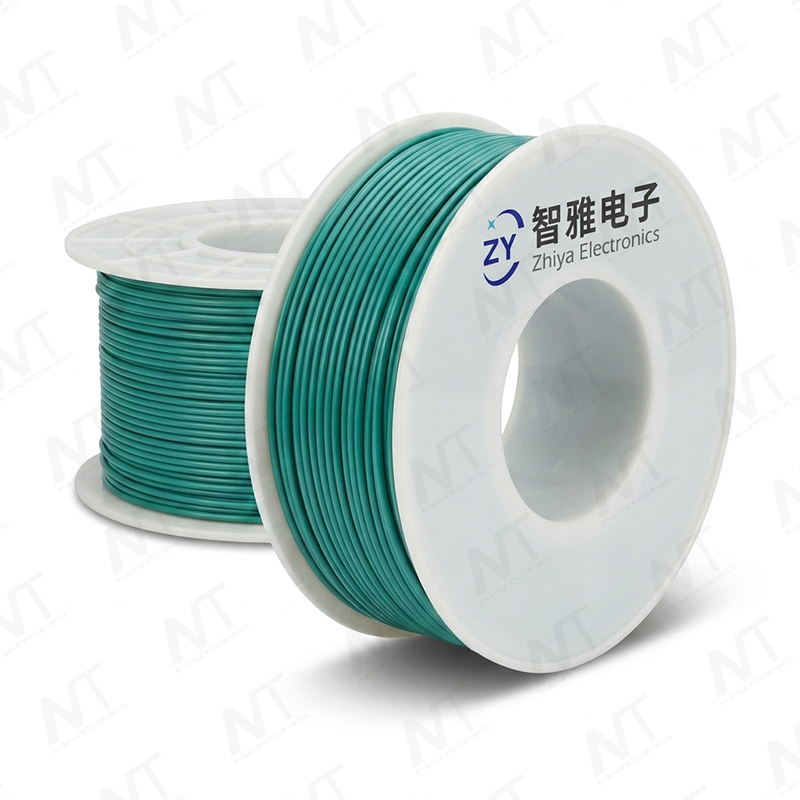

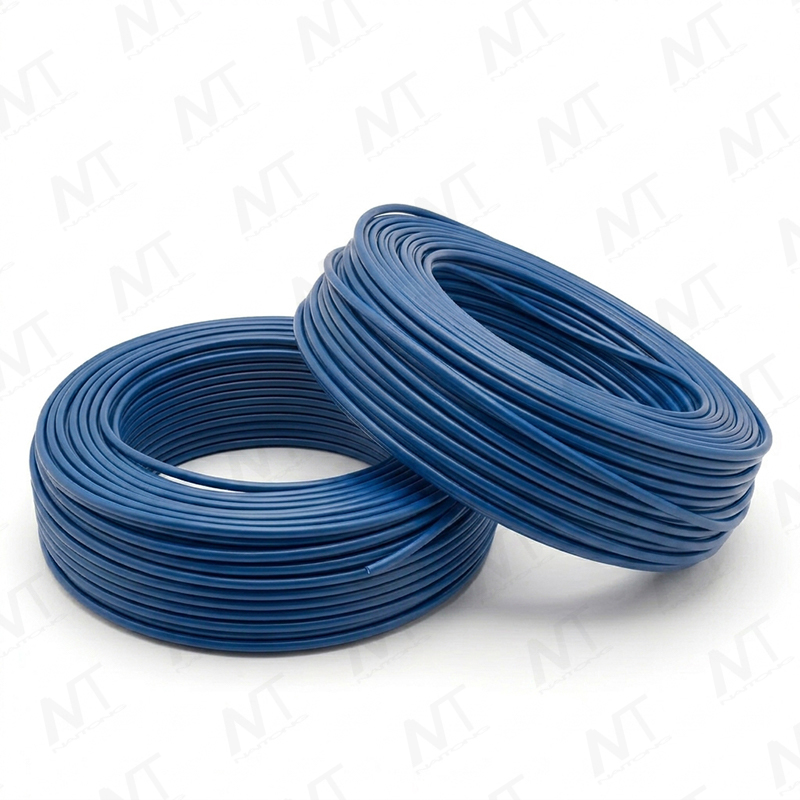

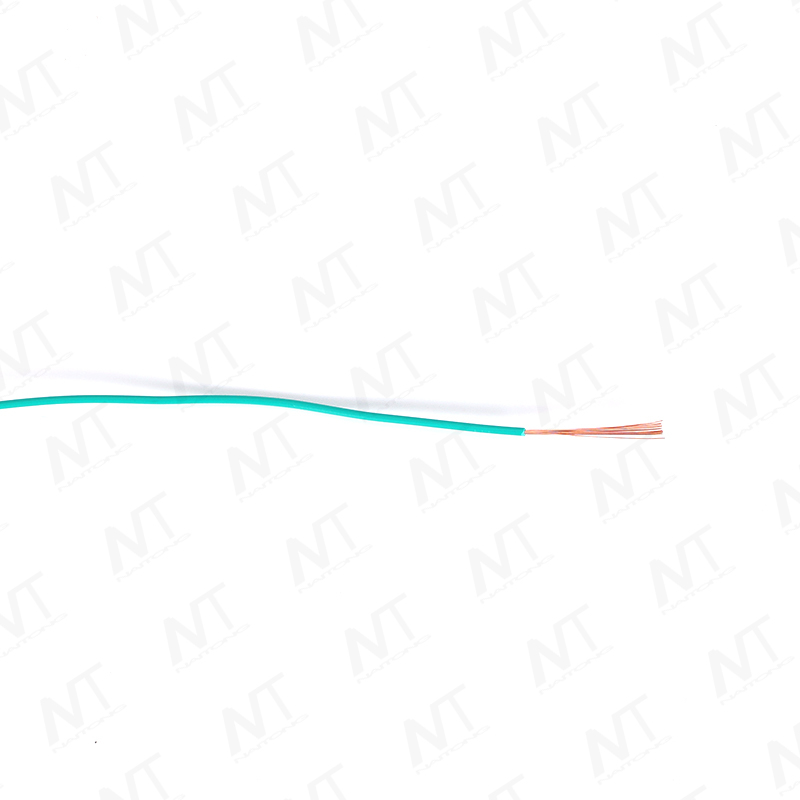

UL1185 single-core wire
Product Description and Application
Rated Voltage: 300V, Rated Temperature: 80℃
Conductor: Single or stranded 30AWG bare copper or tin-plated wire
PVC Insulation: Tin-plated or bare soft copper wire wrapped with shield
PVC Sheath: Passes UL VW-1 and CSA FT1 FT2 vertical and horizontal burning tests
Applicable Environment Suitable for wire in various household appliances, industrial machinery, electric heating products, etc.
|
Conductor type |
Conductor |
Insulation |
Wrap-up shielding |
Outer cover |
Maximum |
|||
|
Line gauge |
Wire count/wire diameter |
Insulation thickness |
Outer diameter |
Wire count/wire diameter |
Insulation thickness |
Outer diameter |
||
|
AWG |
NO./mm |
mm |
mm |
NO/mm |
mm |
mm |
Ω/KM |
|
|
Stranded conductor |
28 |
7/0.127 |
0.38 |
1.20 |
20/0.10 |
0.45 0.38 |
2.30 |
239.00 |
|
26 |
7/0.16 |
0.38 |
1.30 |
30/0.10 |
0.45 0.38 |
2.50 |
150.00 |
|
|
24 |
11/0.16 |
0.38 |
1.40 |
38/0.10 |
0.45 0.38 |
2.60 |
94.20 |
|
|
22 |
17/0.16 |
0.38 |
1.55 |
48/0.10 |
0.45 0.38 |
2.70 |
59.40 |
|
|
20 |
26/0.16 |
0.38 |
1.80 |
50/0.12 |
0.45 0.38 |
3.00 |
36.70 |
|
|
18 |
41/0.16 |
0.38 |
2.00 |
55/0.12 |
0.45 0.38 |
3.50 |
23.30 |
|
|
16 |
26/0.254 |
0.38 |
2.40 |
65/0.12 |
0.45 0.38 |
3.80 |
14.6 |
|
