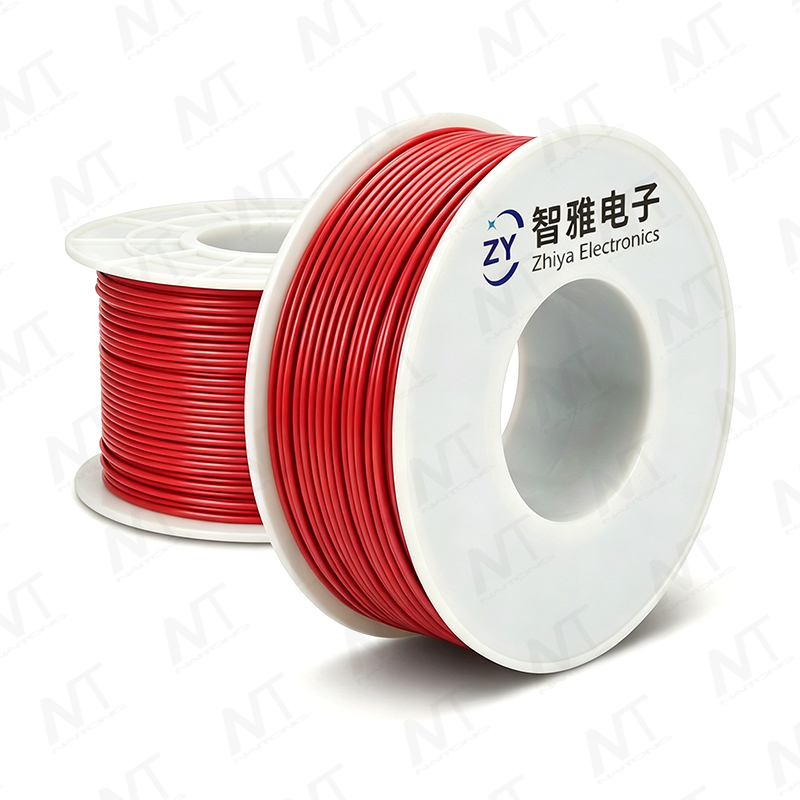

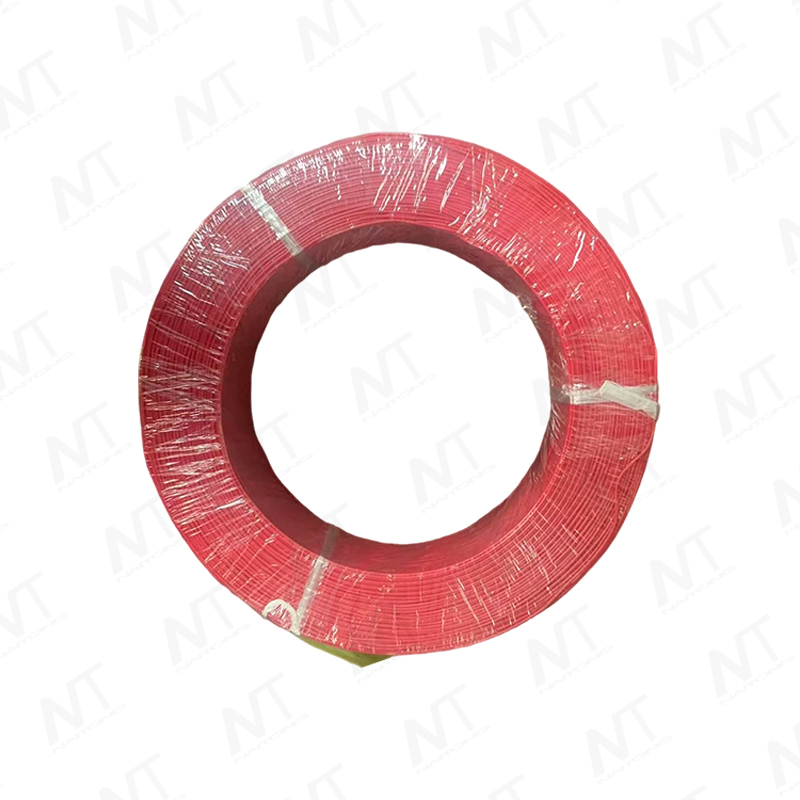

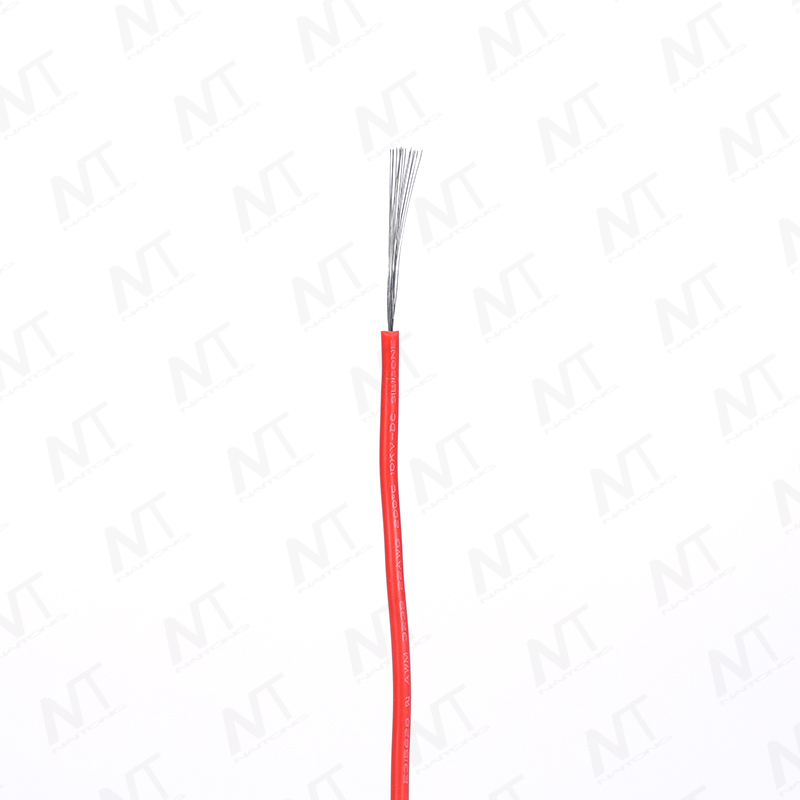

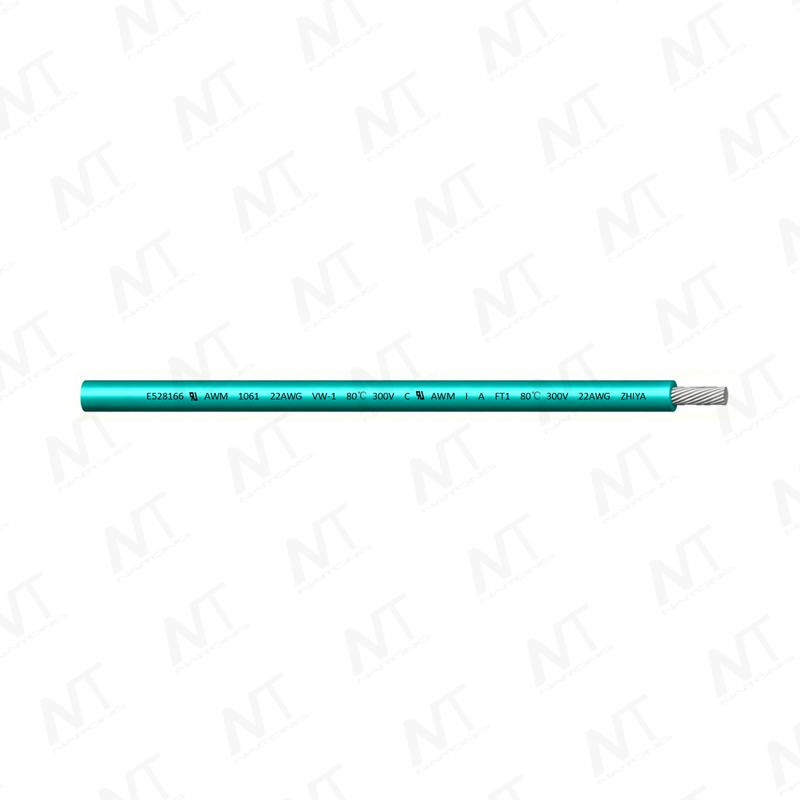

UL1061 single-core wire

Product Description and Application

Rated Voltage: 300V, Rated Temperature: 80℃

Conductor: Single or stranded 30AWG-16AWG bare copper or tin-plated wire

SRPVC Insulation

Passes UL VW-1 and CSA FT1 FT2 vertical and horizontal burning tests

Uses standard thickness, easy to peel and cut

Features acid and alkali resistance, oil resistance, moisture resistance, and mildew resistance

Contact us

PREV：UL1571 single-core wire NEXT：UL1569 Single-Core Wire

Description

Applicable Environment: Suitable for internal wire in general electronic and electrical equipment. Due to mechanical movement, it may experience wear and tear, requiring appropriate protection.

Specifications

Conductor type	Conductor			Insulation		Maximum conductor resistance at 20℃		Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	Line gauge	Wire count/wire diameter	Diameter	Nominal thickness	Nominal outer diameter	Tin plating	Bare copper	Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	AWG	NO./mm	mm	mm	mm	Ω/KM	Ω/KM	MΩ/KM	In	Ft(M)
Stranded conductor	30	7/0.10	0.3	0.25 0.23	0.80	381	354.24 354	15	1500	2000(610)
	28	7/0.127	0.38	0.25 0.23	0.88	239	223.75 223	15	1500	2000(610)
	26	7/0.16	0.48	0.25 0.23	0.98	150	139.73 140	15	1500	2000(610)
	24	11/0.16	0.61	0.25 0.23	1.11	94.2	93.30 87.6	15	1500	2000(610)
	22	17/0.16	0.76	0.25 0.23	1.26	59.4	55.00 55.4	15	1500	2000(610)
	20	26/0.16	0.94	0.25 0.23	1.54	36.7	34.60	15	1500	2000(610)
	18	41/0.16	1.18	0.25 0.23	1.84	23.2	21.80	15	1500	2000(610)
	16	26/0.254	1.49	0.25 0.23	2.19	14.6	13.70	15	1500	2000(610)
single conductor	28	1/0.32	0.32	0.25 0.23	0.32	227	227.39	15	1500	2000(610)
	26	1/0.404	0.404	0.25 0.23	0.90	143	142.79	15	1500	2000(610)
	24	1/0.511	0.511	0.25 0.23	1.01	89.3	89.39	15	1500	2000(610)
	22	1/0.643	0.643	0.25 0.23	1.14	56.4	54.30	15	1500	2000(610)
	20	1/0.813	0.813	0.25 0.23	1.41	35.2	33.90	15	1500	2000(610)
	18	1/1.024	1.024	0.25 0.23	1.68	22.2	21.40	15	1500	2000(610)
