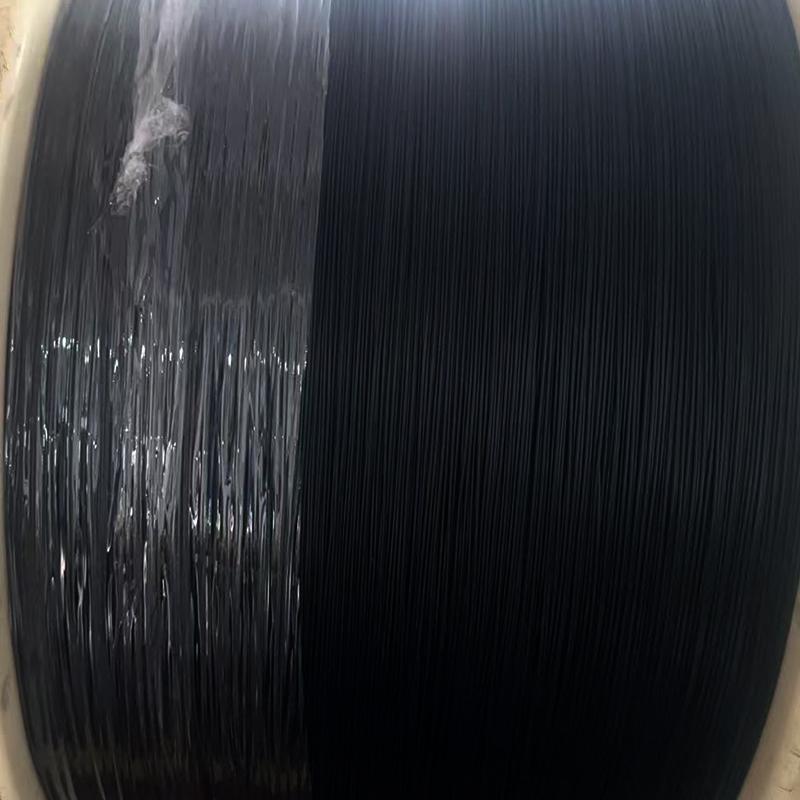

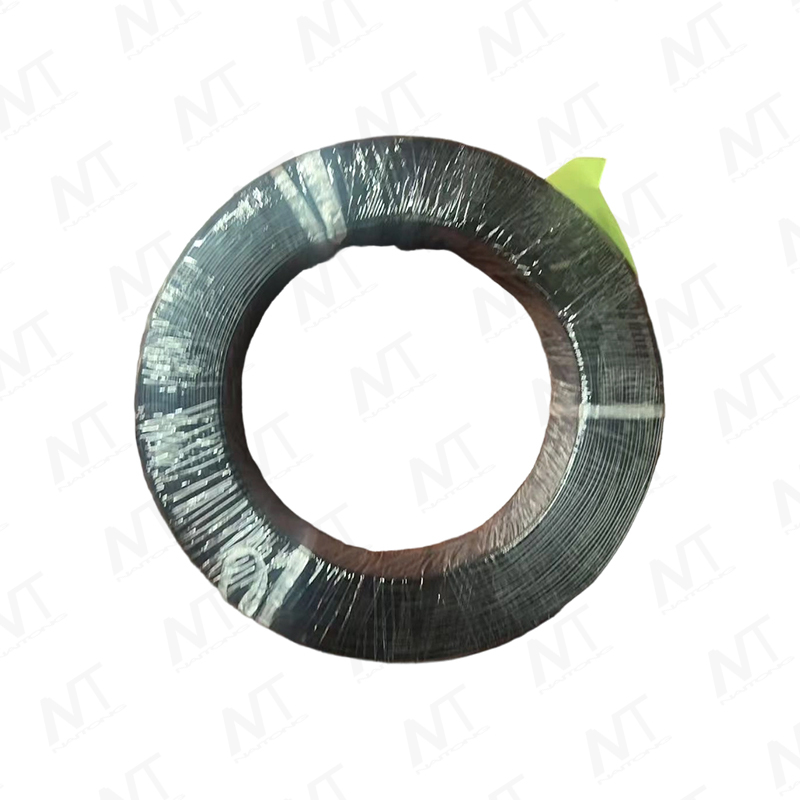

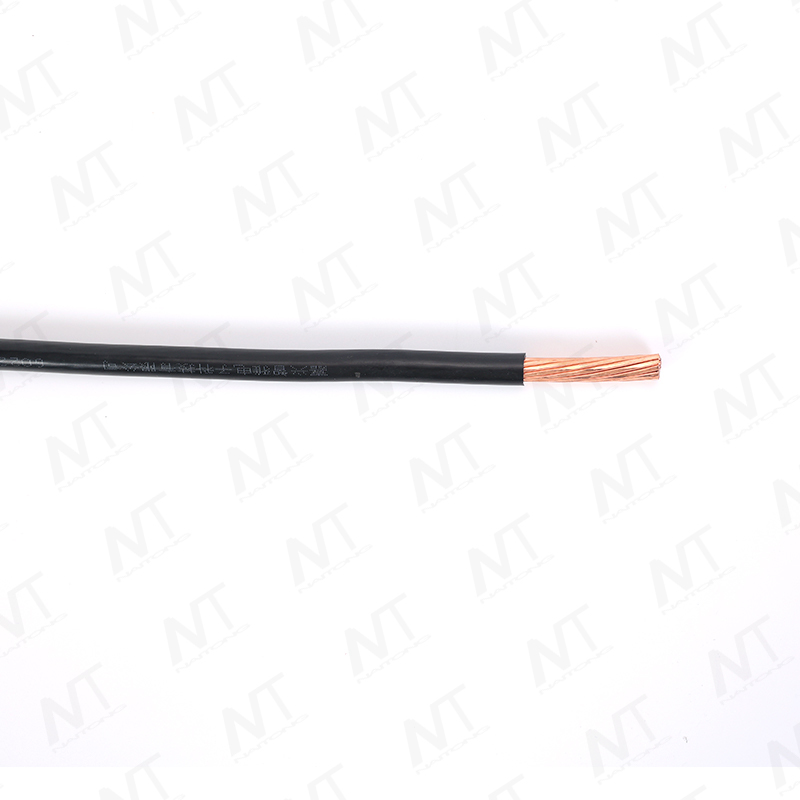

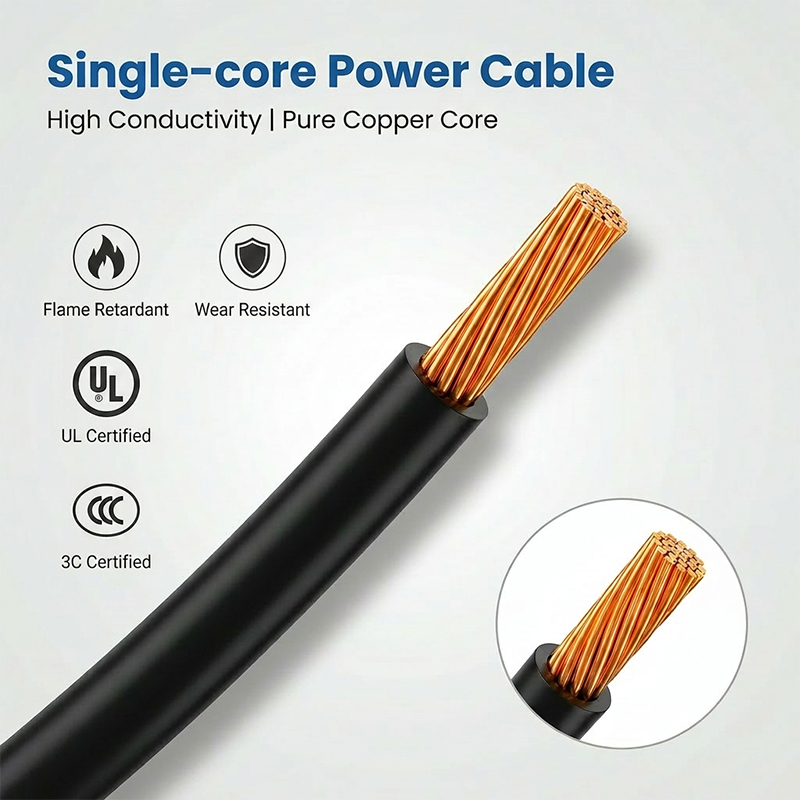

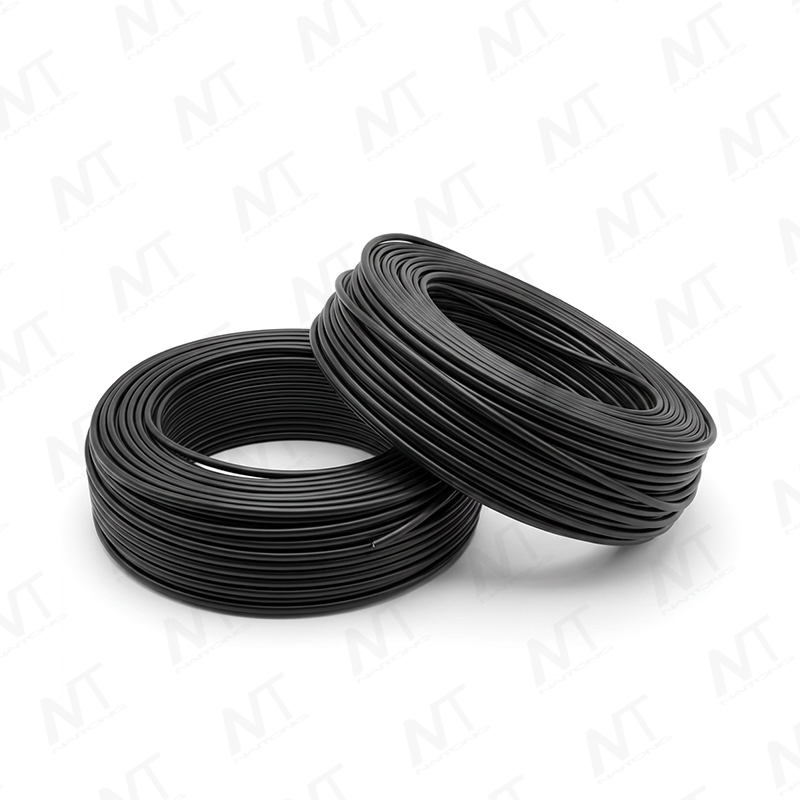

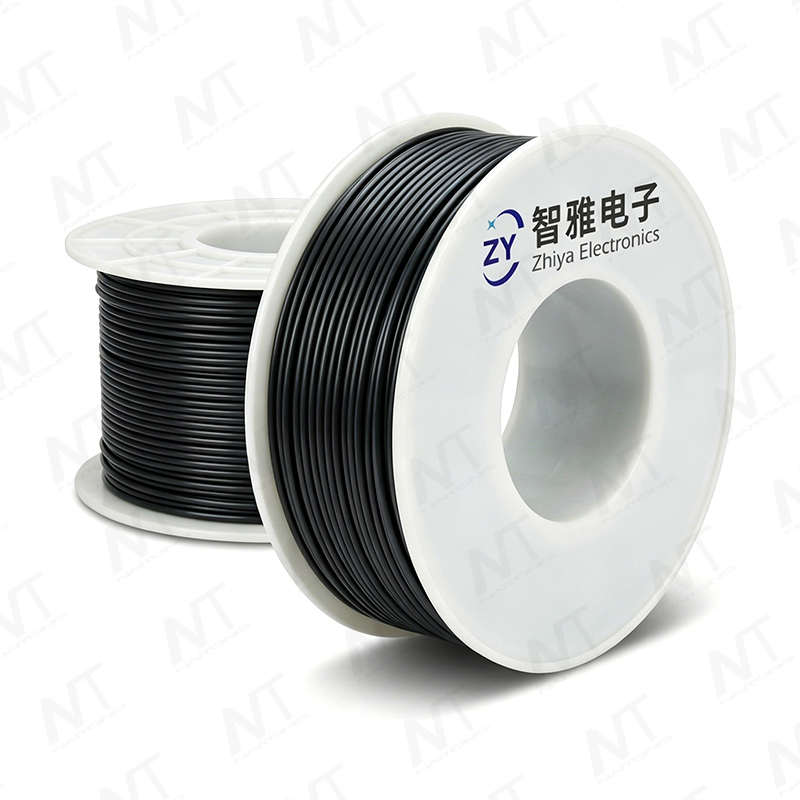

UL1569 Single-Core Wire

Product Description and Application

Rated Voltage: 300V, Rated Temperature: 105℃

Conductor: Single or stranded 32AWG-2AWG bare copper or tin-plated wire

PVC Insulation

Passes UL VW-1 and CSA FT1 FT2 vertical and horizontal burning tests

Uses standard thickness, easy to peel and cut

Features acid and alkali resistance, oil resistance, moisture resistance, and mildew resistance.

Contact us

PREV：UL1061 single-core wire NEXT：UL1015 Single-Core Wire

Applicable Environment: Suitable for internal wire in general electronic and electrical equipment; not suitable for environments with abrasion.

Conductor type	Conductor			Insulation		Maximum conductor resistance at 20℃		Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	Line gauge	Wire count/wire diameter	Diameter	Nominal thickness	Nominal outer diameter	Tin plating	Bare copper	Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	AWG	NO./mm	mm	mm	mm	Ω/KM	Ω/KM	MΩ/KM	In	Ft(M)
Stranded conductor	30	7/0.10	0.30	0.43 0.38	1.16	381	354.24 354	15	1500	2000(610)
	28	7/0.127	0.38	0.43 0.38	1.24	239	223.75 223	15	1500	2000(610)
	26	7/0.16	0.48	0.43 0.38	1.34	150	139.73 140	15	1500	2000(610)
	24	11/0.16	0.61	0.43 0.38	1.47	94.2	93.30 87.6	15	1500	2000(610)
	22	17/0.16	0.76	0.43 0.38	1.62	59.4	55.00 55.4	15	1500	2000(610)
	20	26/0.16	0.94	0.43 0.38	1.80	36.7	34.60	15	1500	2000(610)
	18	41/0.16	1.18	0.43 0.38	2.04	23.2	21.80	15	1500	2000(610)
	16	26/0.254	1.49	0.43 0.38	2.35	14.6	13.70	15	1500	2000(610)
	14	41/0.254	1.88	0.43 0.38	2.78	8.96	8.62	15	1500	2000(610)
	12	65/0.254	2.37	0.43 0.38	3.27	5.64	5.43	15	1500	2000(610)
	10	105/0.254	3.40	0.43 0.38	4.36	3.546	3.41 3.409	15	1500	2000(610)
