New energy vehicles High-voltage power wire harness

Model: NT-OBD26019

Minimum order quantity: 1000 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Electric motorcycles Low-voltage main wire harness NEXT：New energy vehicle BMS assembly wire harness

Description

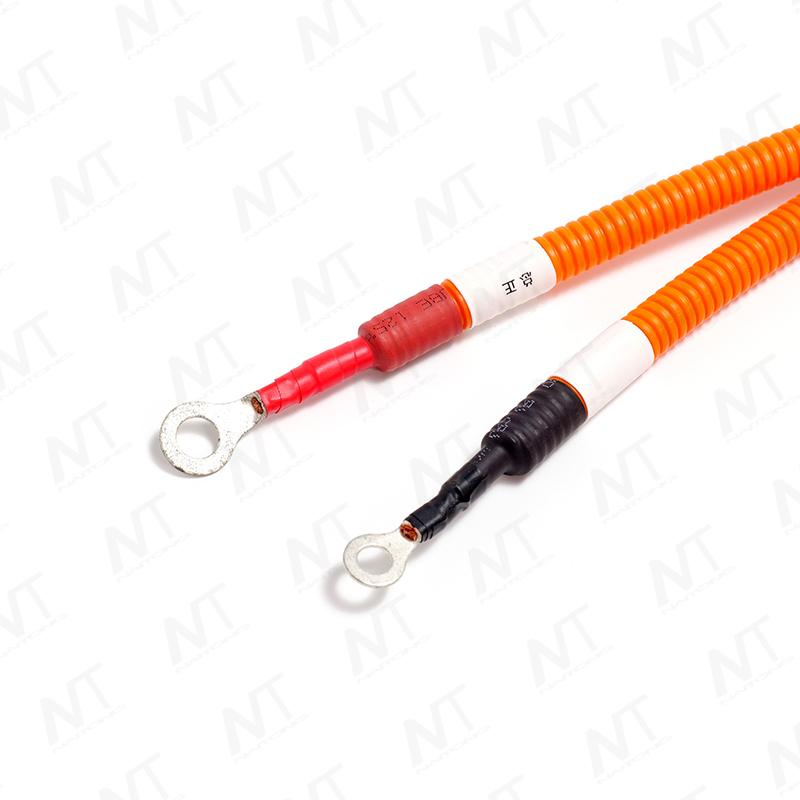

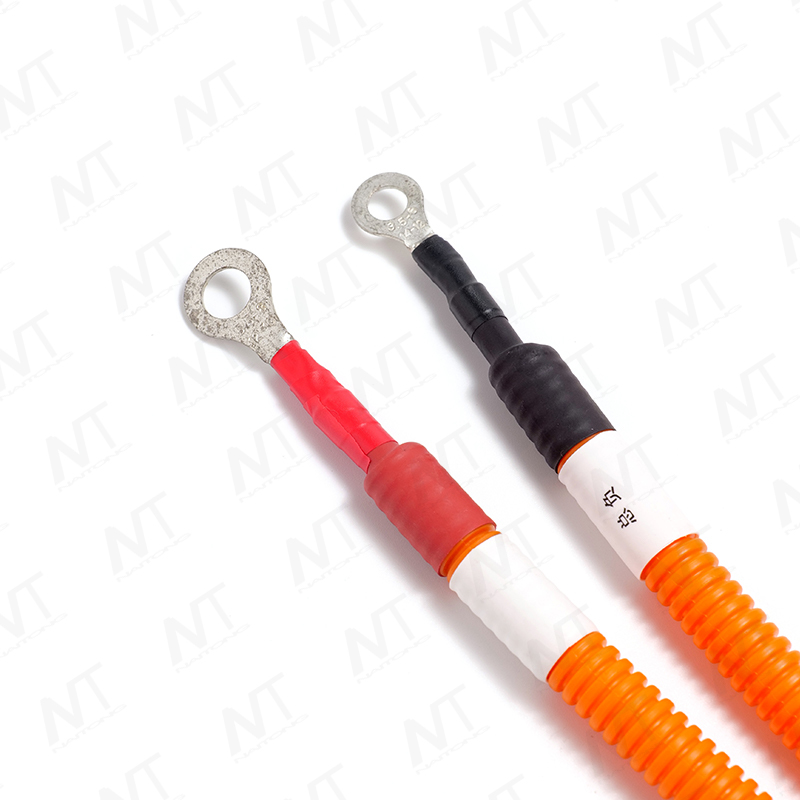

Power transmission between the power battery and high-voltage components

The most common scenario is connecting the power battery pack and high-voltage components such as the high-voltage distribution unit (PDU), drive motor, on-board charger (OBC), and air conditioning compressor, which are responsible for transmitting high-voltage DC power (usually 300V-800V) to power the vehicle's power system or high-voltage accessories.

Integrated high-voltage interlock (HVIL) safety circuit

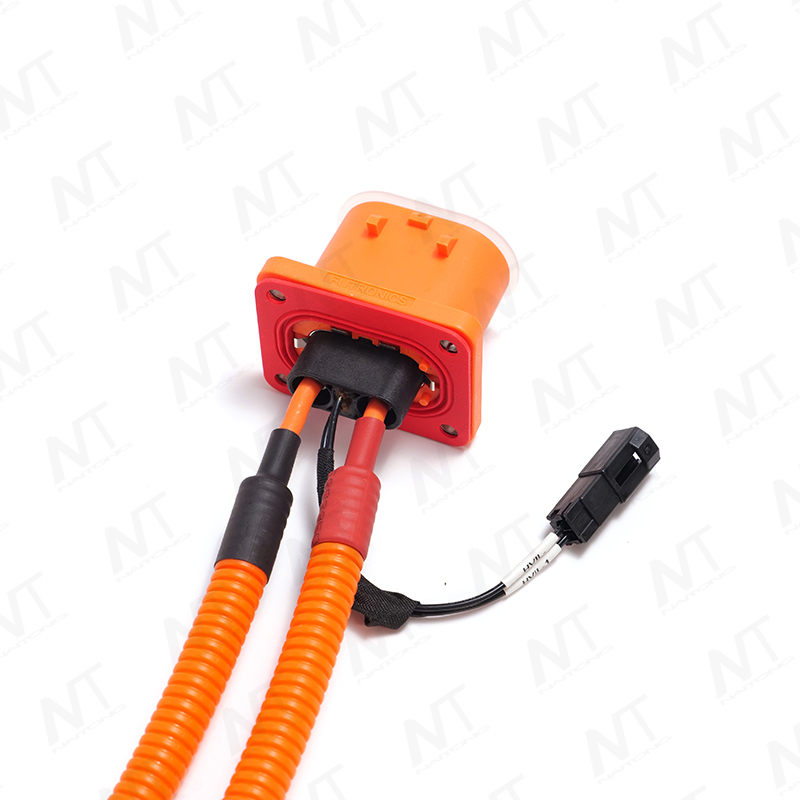

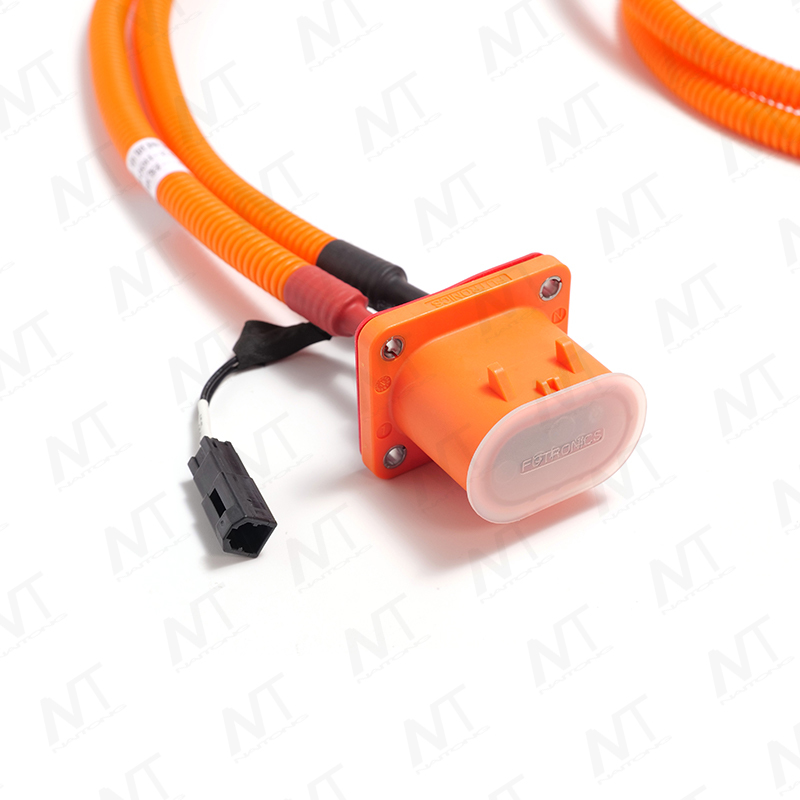

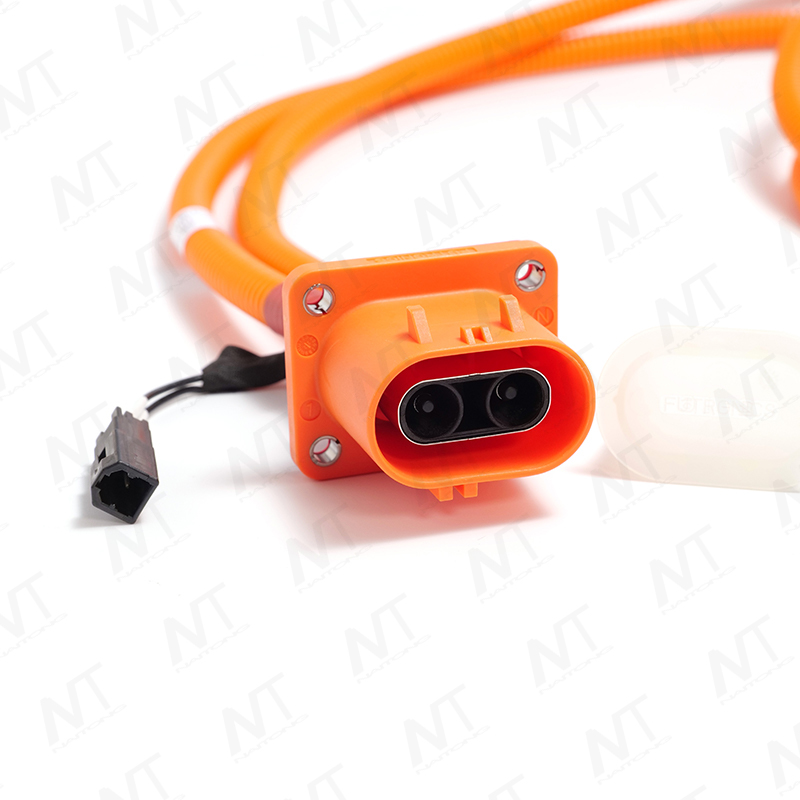

The small black plug shown in the picture is the high-voltage interlock signal terminal, which is the "safety sentinel" of the high-voltage system. It can monitor the connection status of the high-voltage connector in real time. Once the plug is loose or not properly inserted, it will trigger the vehicle controller to cut off the high-voltage power to avoid the risk of leakage and arcing.

Specifications

Product Name	High-voltage power harness for new energy vehicles
Application	Battery pack → High-voltage distribution box (PDU) , Battery pack → Air conditioning compressor/Electric heating PTC
Cable color	According to customer requirements
Cable length	According to customer requirements
Conductor	Cu-ETP1 bare wire or tin-plated, conforming to DIN EN13602 standard.
External insulation material	PP, PVC, TPU
Cable sheath	PP/ PVC/TPE/rubber/silicone, etc.
Connector type	Plug housing assembly suitable for 1.0mm – 4.0mm socket contacts, single locking, multi-pin option available.

Pin connection	According to customer requirements
Inner copper	Tin-plated/bare copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance testing	100% electrical and power performance testing before shipment

Application

New energy vehicle battery pack → High-voltage distribution box (PDU) , battery pack → Drive motor controller , battery pack → On-board charger (OBC) , battery pack → Air conditioning compressor/electric heating PTC. It is only responsible for high-current power transmission and safety interlocking, and does not participate in signal sampling or communication .
