Electric motorcycle AC slow-charging port (vehicle side) High-voltage wire harness assembly

Model: NT-OBD26021

Minimum order quantity: 1000 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Electric motorcycle high voltage wire harness assembly NEXT：Electric motorcycles Low-voltage main wire harness

Description

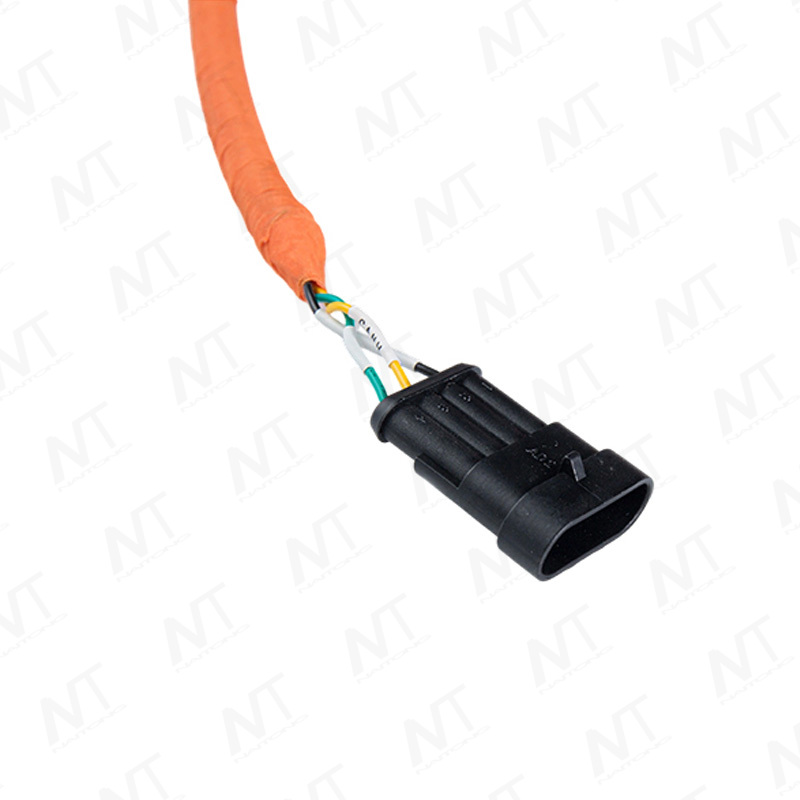

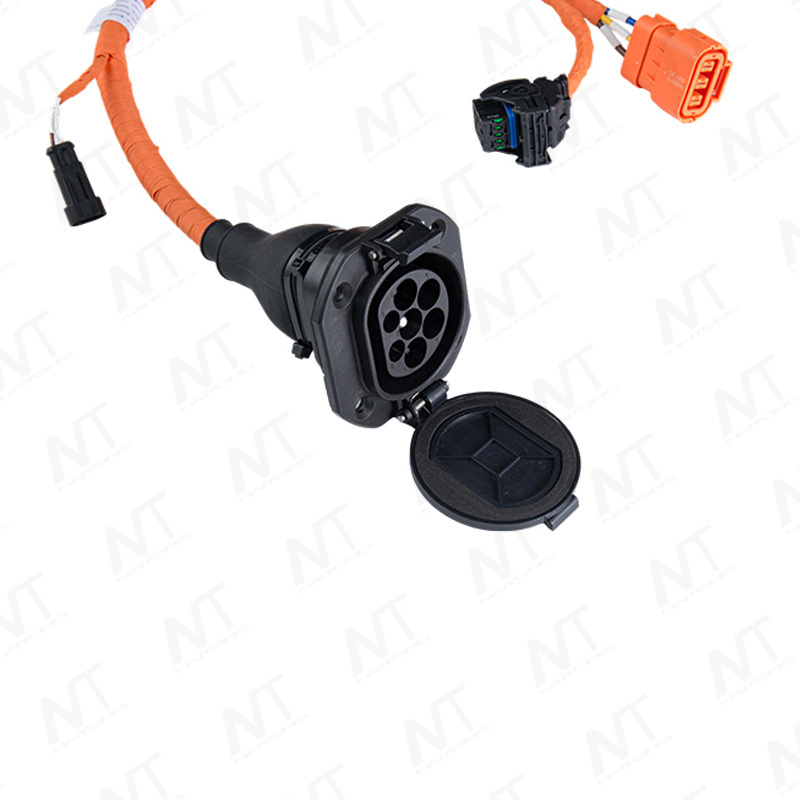

For new energy electric motorcycles , also known as the slow charging socket wire harness, is a dedicated high-voltage wire harness that connects the vehicle's slow charging port to the on-board charger (OBC). The small interface attached to the wire harness is the charging control signal circuit:

CP/CC signal interface: Used to communicate with the charging pile, confirm the connection status, negotiate the charging current, and control the start, stop, and power of charging.
Electronic lock drive interface: Powers the electronic lock of the charging port, automatically locking after the gun is inserted to prevent the gun head from accidentally falling off during charging.
Temperature sensor interface: Some models will have an NTC temperature sensor built into the socket to monitor the temperature in real time during charging and prevent overheating.

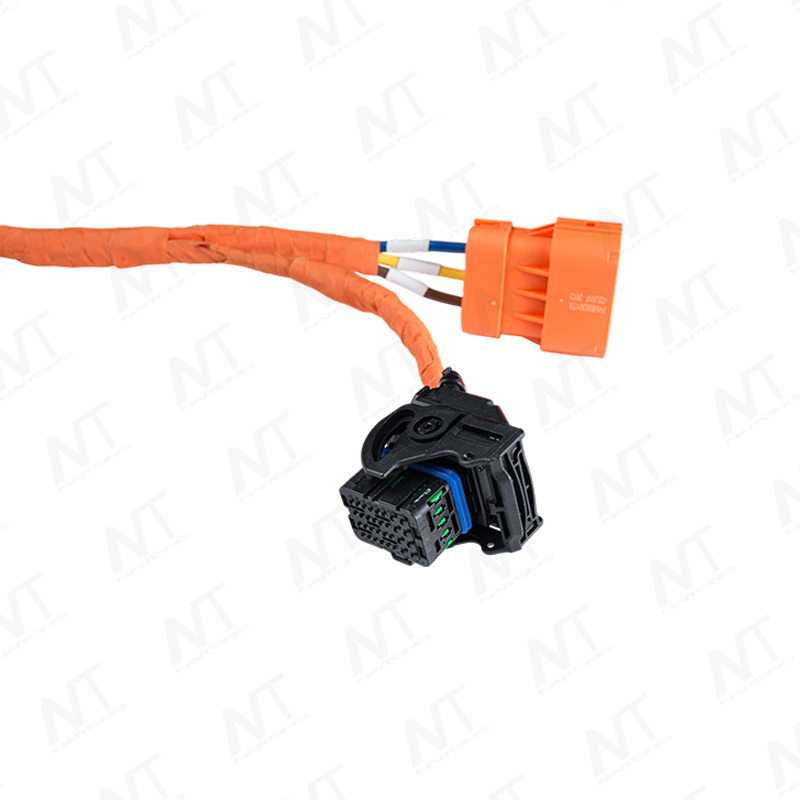

End high voltage connector

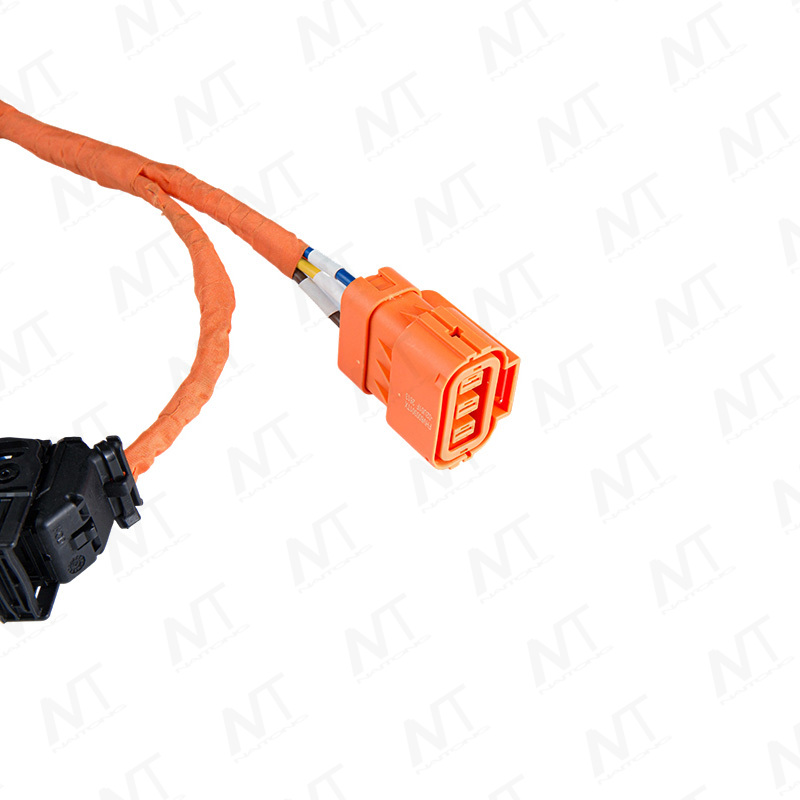

The large orange plug is a high-voltage connector that interfaces with the on-board charger (OBC) to ensure a reliable connection between the wire harness and the high-voltage components inside the vehicle.

Specifications

Product Name	Electric motorcycle AC slow charger (vehicle end) charging port high voltage wire harness assembly
Application	Electric motorcycles
Cable color	According to customer requirements
Cable length	According to customer requirements
conductor	Cu-ETP1 bare wire or tin-plated, conforming to DIN EN13602 standard.
External insulation material	PP, PVC, TPU
Cable sheath	PP/ PVC/TPE/rubber/silicone, etc.
Connector type	AC slow charging interface, OBC high voltage connector
Pin connection	According to customer requirements
Inner copper	Tin-plated/bare copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance testing	100% electrical and power performance testing before shipment

Application

New energy electric motorcycles and two-wheeled electric vehicles. Serving as a bridge between the external AC power source and the on-board charger, it completes power transmission and communication, and is an essential component for the vehicle's slow charging function.
