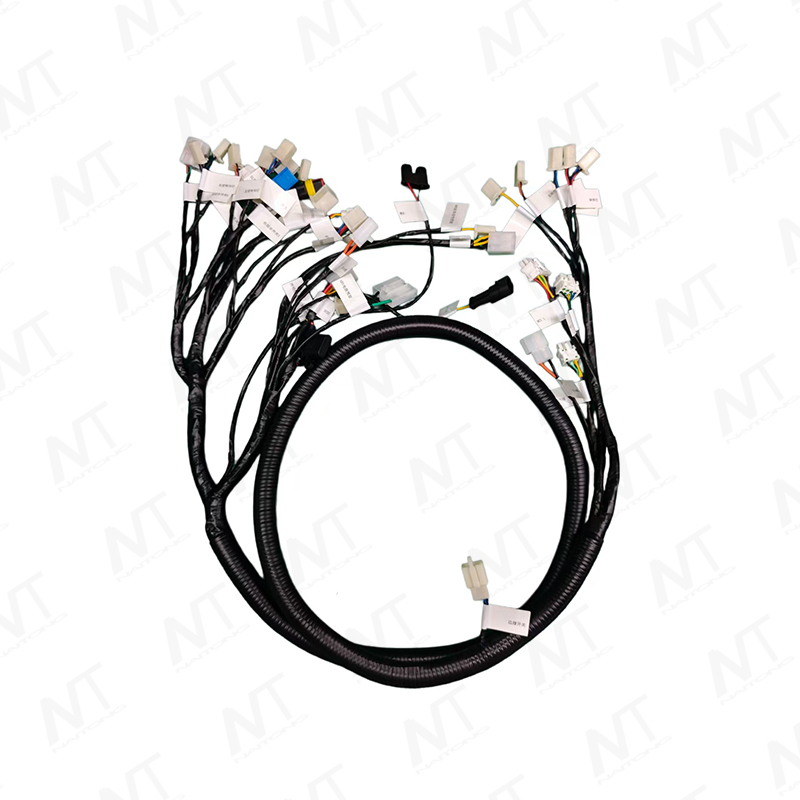

Electric motorcycles Low-voltage main wire harness

Model: NT-OBD26020

Minimum order quantity: 1000 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Electric motorcycle AC slow-charging port (vehicle side) High-voltage wire harness assembly NEXT：New energy vehicles High-voltage power wire harness

Description

It is the "electrical trunk line" for all low-voltage electrical components in the vehicle, equivalent to the "nervous system" of the whole vehicle. Its core function is to connect the controller, power supply and various electrical components to realize power supply and signal transmission.

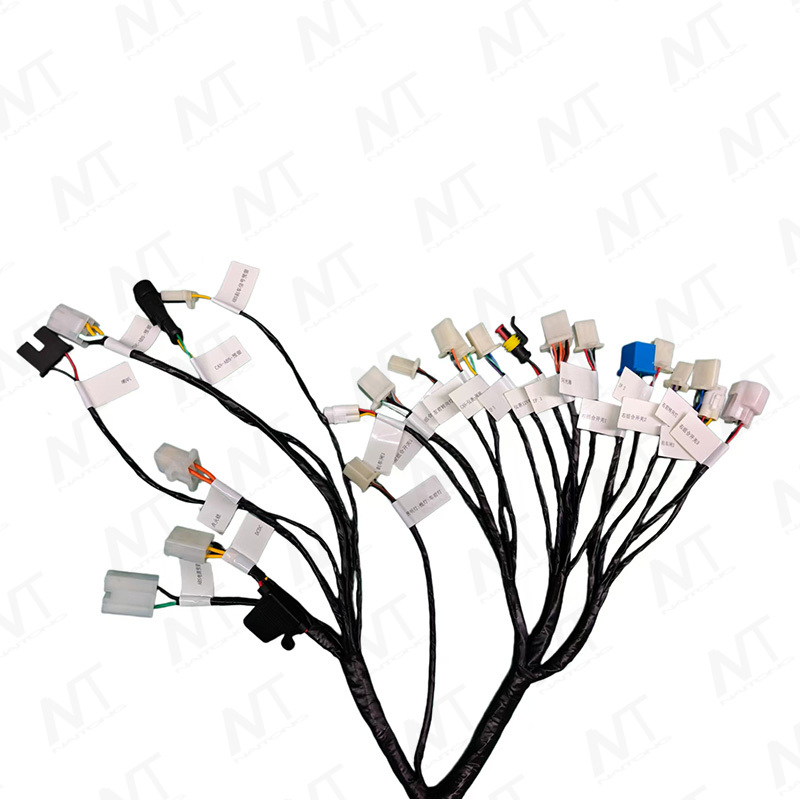

Multi-branch, multi-interface design: different colored and pin-shaped interfaces correspond to different components to avoid incorrect connection; labels indicate the interface names for easy maintenance and troubleshooting.

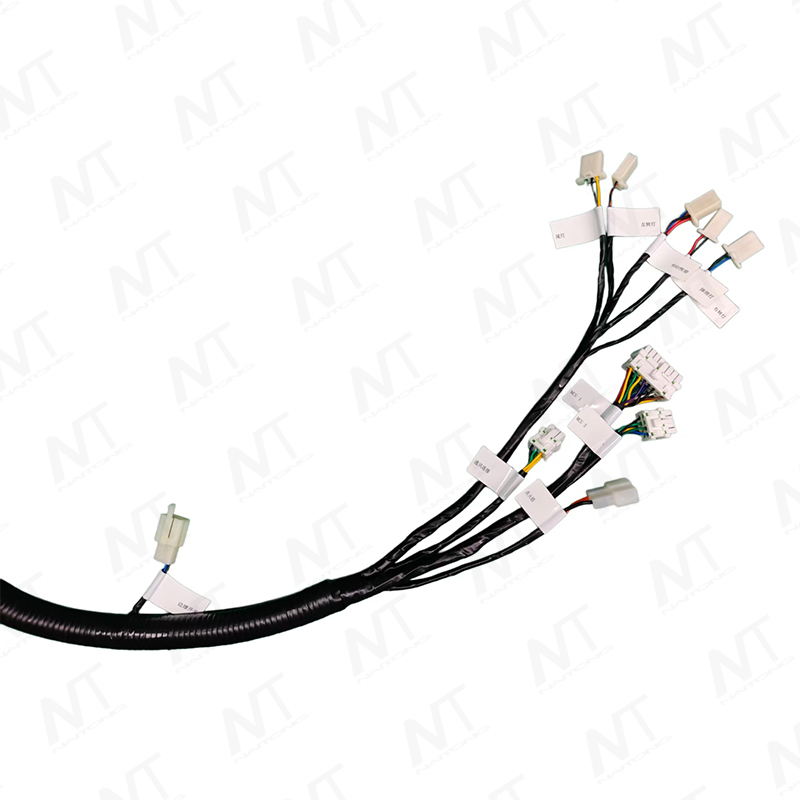

Protective design: The main harness is wrapped with corrugated tubing, and the branches are wrapped with tape, making it wear-resistant, oil-proof, and heat-resistant, suitable for vibrations and harsh environments during riding.
Independent circuits: The circuits for functions such as lights, brakes, speed control, and instruments are independent, so a fault in one branch will not directly affect the normal operation of other components.

Specifications

Product Name	Low-voltage main wire harness of an electric motorcycle
Application	Electric motorcycles
Cable color	According to customer requirements
Cable length	According to customer requirements
Conductor	Cu-ETP1 bare wire or tin-plated, conforming to DIN EN13602 standard.
External insulation material	PP, PVC, TPU
Cable sheath	PP/ PVC/TPE/rubber/silicone, etc.
Connector type	Different colored and pin-shaped interfaces correspond to different components to avoid incorrect connections; labels indicate the interface name.
Pin connection	According to customer requirements
Inner copper	Tin-plated/bare copper
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance testing:	100% electrical and power performance testing before shipment

Application

New energy electric motorcycles and two-wheeled electric vehicles.
