Electric wheelchairs Integrated power and control wire harness

Model: NT-Y26031

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 15–25 days, bulk orders 3–4 weeks

Port of Origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.

Contact us

PREV：ECG / Bioelectrode Snap Lead Wire Harness NEXT：Medical equipment Internal integrated wire harness

Description

Integrated power and control wire harness dedicated to electric wheelchairs, the core component for wheelchair power supply, motor drive, and control signal transmission.

The red and black connectors are Anderson high-current plugs, the most commonly used battery interface for electric wheelchairs, supporting high currents (typically 30A–100A).

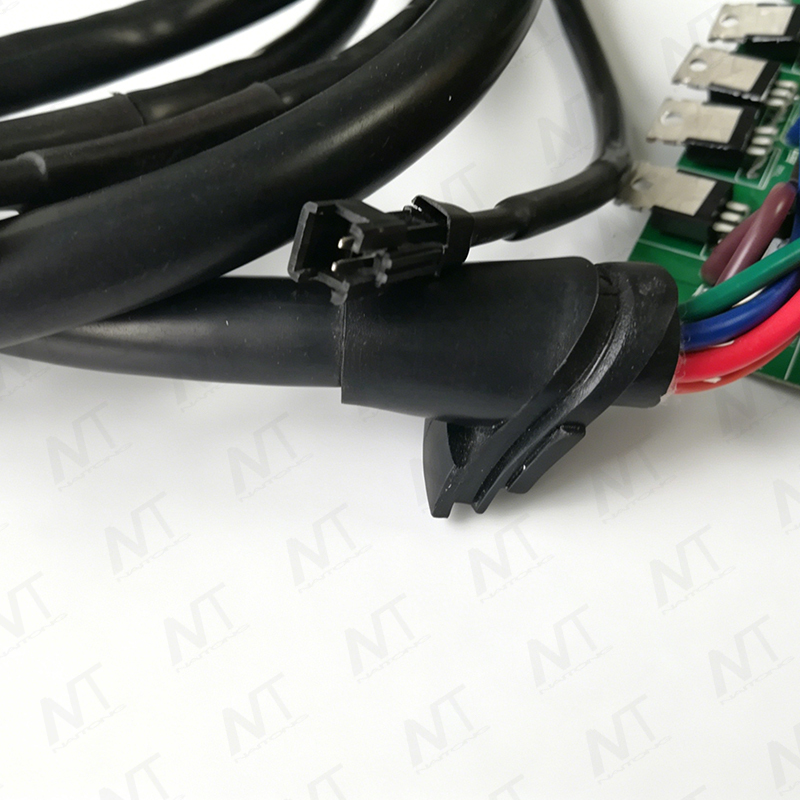

The multiple thick black cables are motor power lines, responsible for providing a high-current power supply to the wheelchair's left and right drive motors, driving forward, reverse, and steering movement. The thinner colored cables (red/blue/green/purple, etc.) are motor Hall wires/control signal lines, used to feed back motor speed and position signals, enabling precise speed control and speed stabilization by the controller.

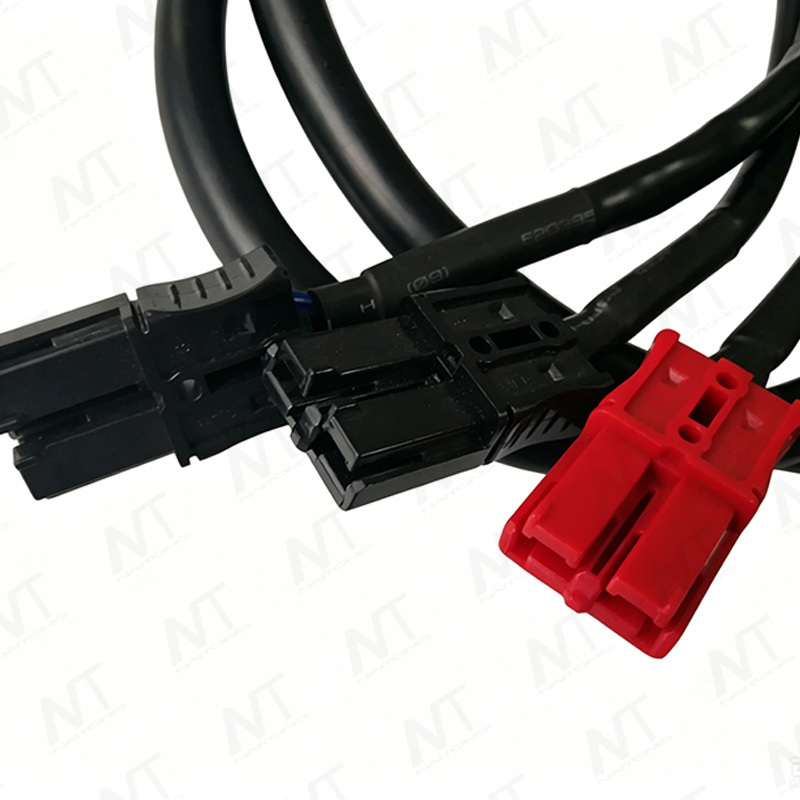

The small black connectors are control signal interfaces connecting the wheelchair controller and joystick module, transmitting user operation commands (e.g., steering, acceleration/deceleration).

Specifications

Product Name	Integrated Power and Control Wire Harness for Electric Wheelchairs
Application	Medical Equipment, Industrial Equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	Anderson, JST, MOLEX
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

Integrated power and control wire harness dedicated to electric wheelchairs, the core component for wheelchair power supply, motor drive, and control signal transmission.
