M12 Male/Female Panel-Mount Waterproof Sensor Adapter Wire Harness

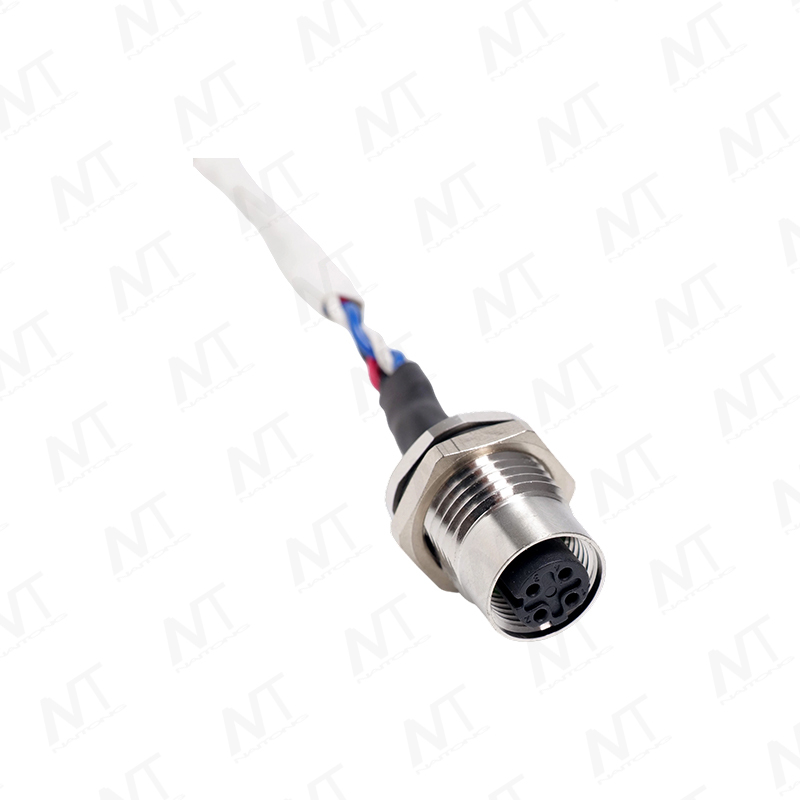

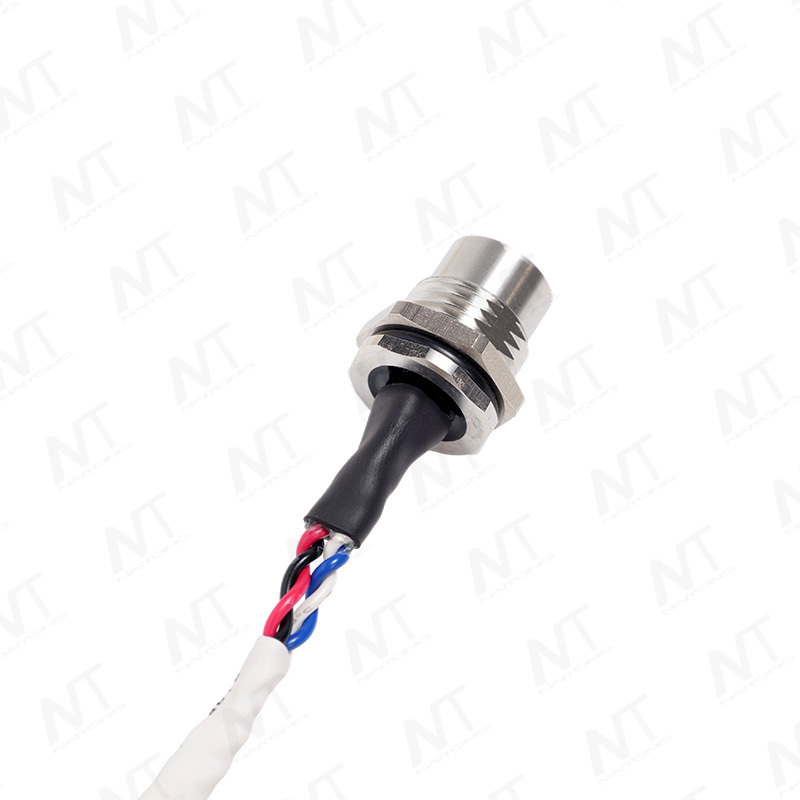

Front End: M12 Metal Threaded Waterproof Aviation Socket (Device Mounting End)

Standard M12 round industrial connector, available in 4-core/5-core pin or socket types, metal hex thread locking structure, with built-in rubber waterproof gasket:

- Mounting method: panel cutout on cabinet or device housing, secured with locking nut, with sealing gasket achieving IP65/IP67 dust and water resistance;

- Electrical specifications: 4–5 pin contacts, carrying 24V low-voltage power + differential signal, compatible with proximity switches, photoelectric sensors, encoders, temperature sensors, and other industrial sensing equipment;

- Protection advantages: metal housing resistant to impact, oil, and corrosion, isolating workshop dust, water mist, and cutting fluid.

Mid Cable: Twisted Pair Shielded Signal Wire

- Uses red-blue / red-black twisted pairs, with a differential twisted structure greatly reducing electromagnetic crosstalk, suitable for high-frequency pulse and analog sensing signals;

- Outer layer, optionally white braided sheath or standard PVC insulation, bend-resistant and oil-resistant, suitable for tight internal device wire;

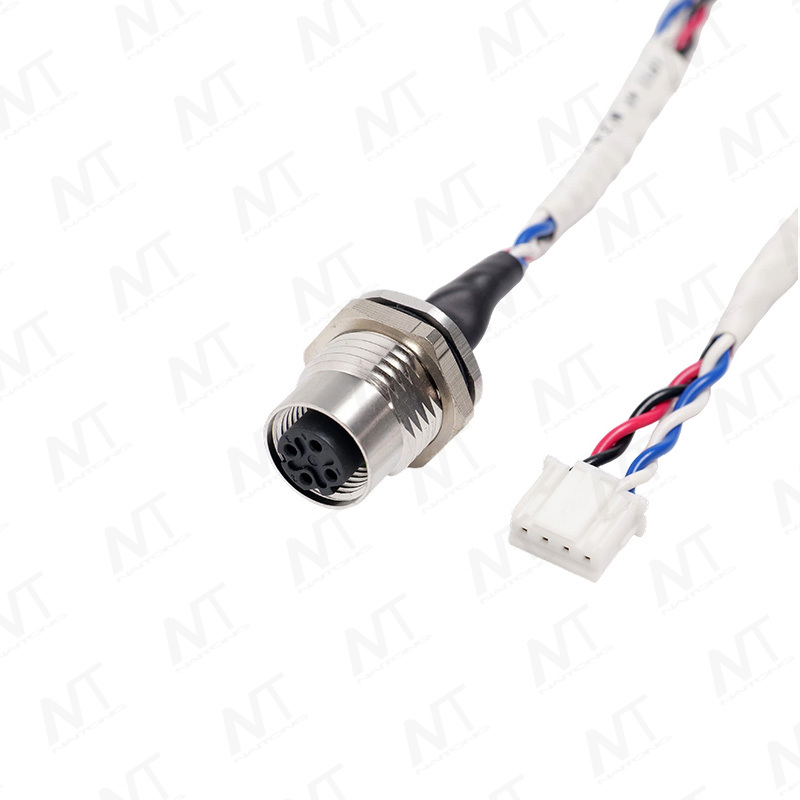

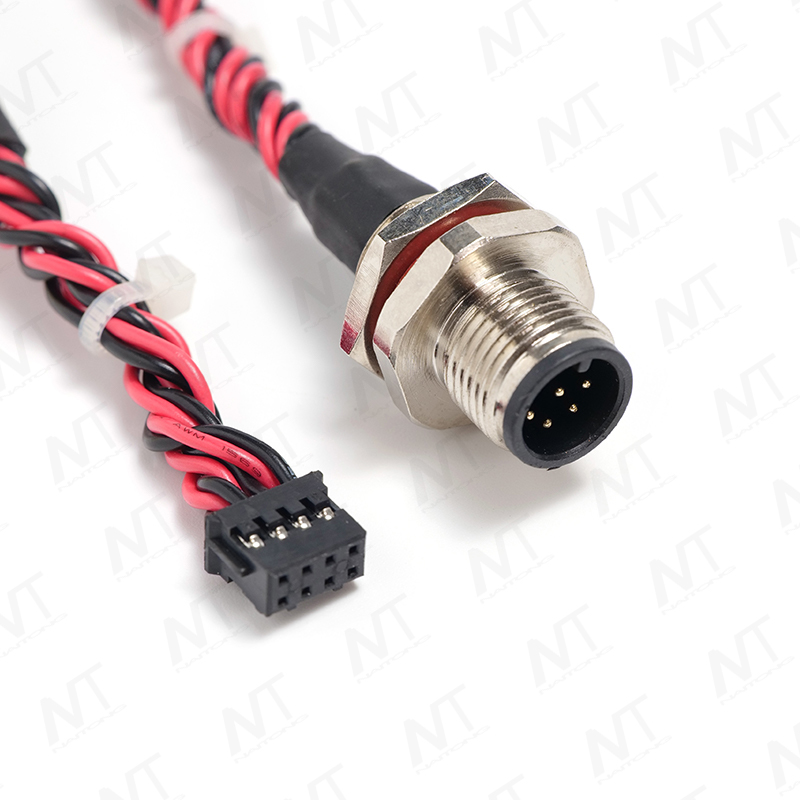

Rear End: Standard Plastic Terminal (Mating with Main Control Board)

Two common detachable terminal options:

White 4-pin XH2.54 female socket: universal for consumer devices, small industrial controls, and electric vehicle equipment, 4-core direct power + signal connection;

Black 5-pin Dupont-style locking plastic shell: dedicated for automation equipment and encoders, 5 circuits for power, A/B phase pulse, and ground.
