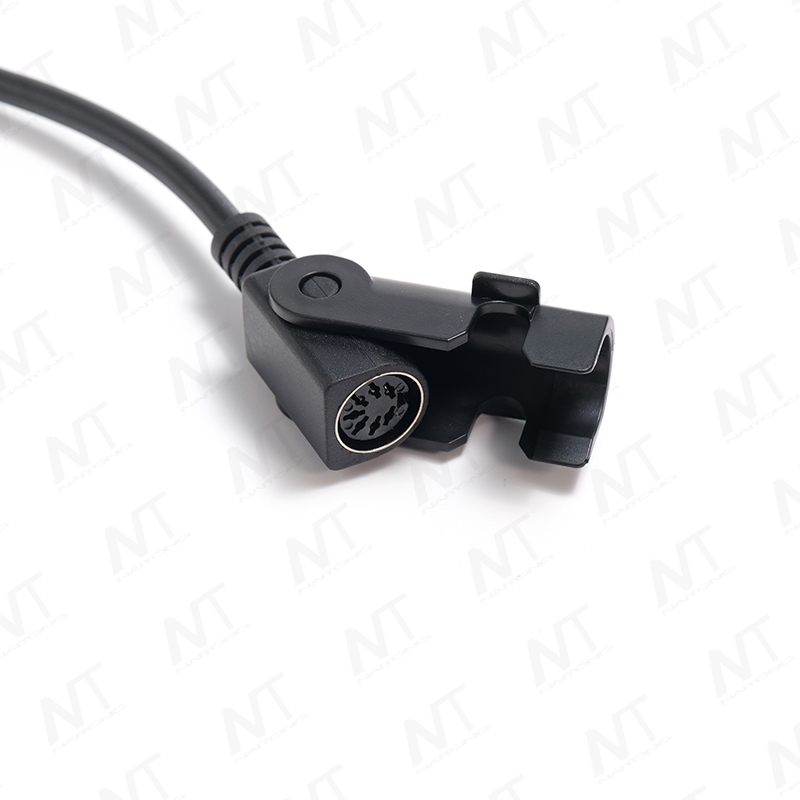

Large DIN 8-Pin Female to DIN 5-Pin Male + 01-Type Female Y-Type 1-to-2 Smart Home Wire Harness

Single-Port Composite Signal 1-to-2 Parallel Splitting

Only 1 DIN8-pin main control interface simultaneously outputs 5-pin multi-channel drive signals and 2-pin low-voltage power, eliminating the need for dual interfaces reserved on the mainboard, significantly simplifying internal device wire and reducing production cable costs.

Combined Power + Signal Synchronous Transmission

DIN5P branch: carries high-power drive signals for massage air bags and multiple vibration motors.

01-type female branch: supplies low-voltage DC for electric lift actuators, motion-sensor lights, and limit sensors; the two lines run in parallel without mutual interference, effectively suppressing motor electromagnetic noise.

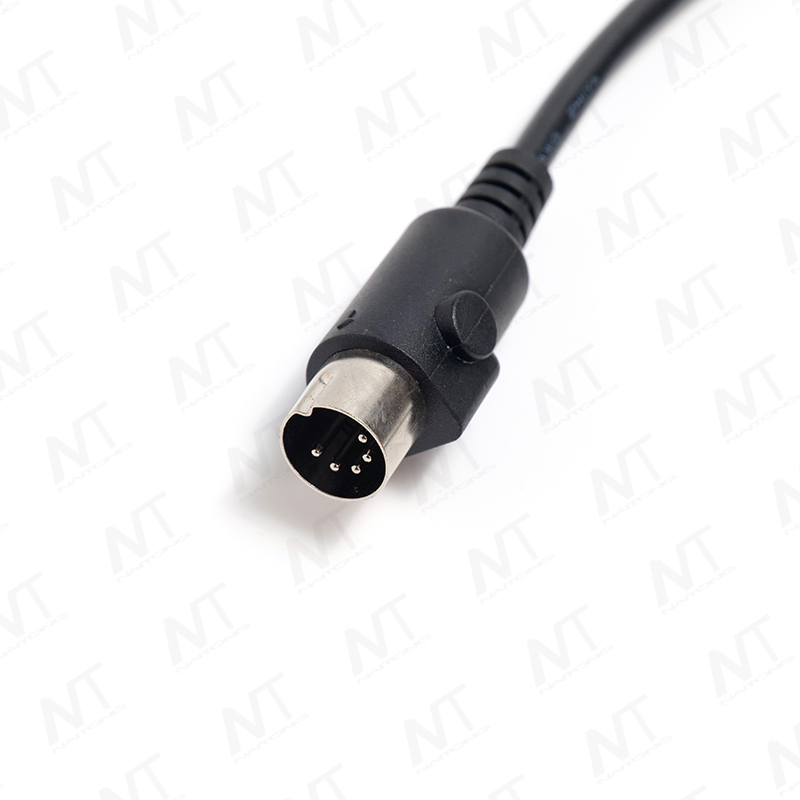

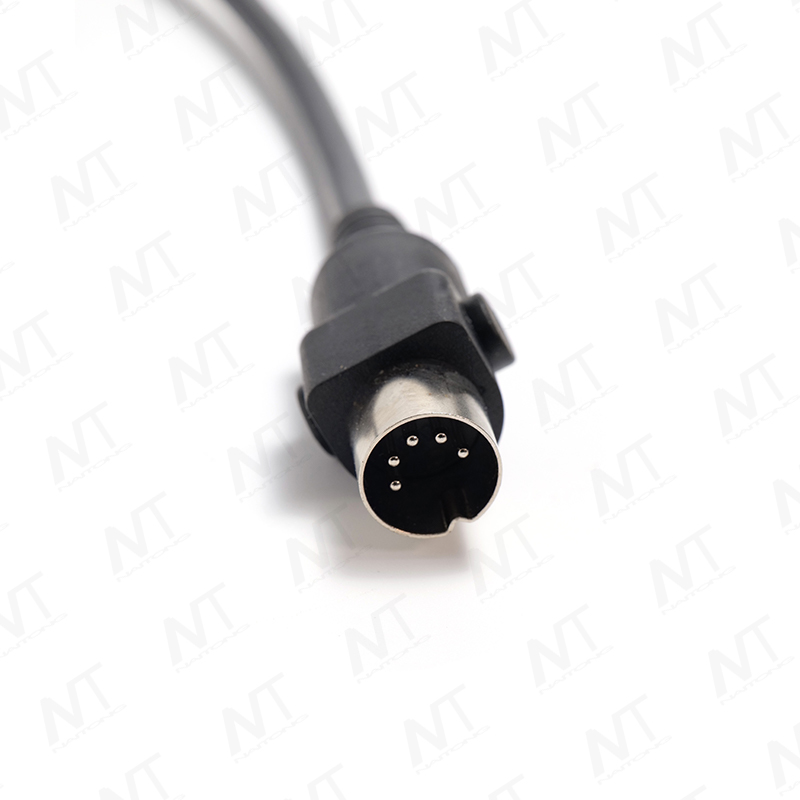

Large DIN 5-Pin Male Connector

5-pin round DIN male connector, compatible with massage host units, multi-channel air bag controllers, and multi-way vibration modules, transmitting high-power drive signals; rotary locking structure ensures a secure fit that won't loosen under equipment vibration.

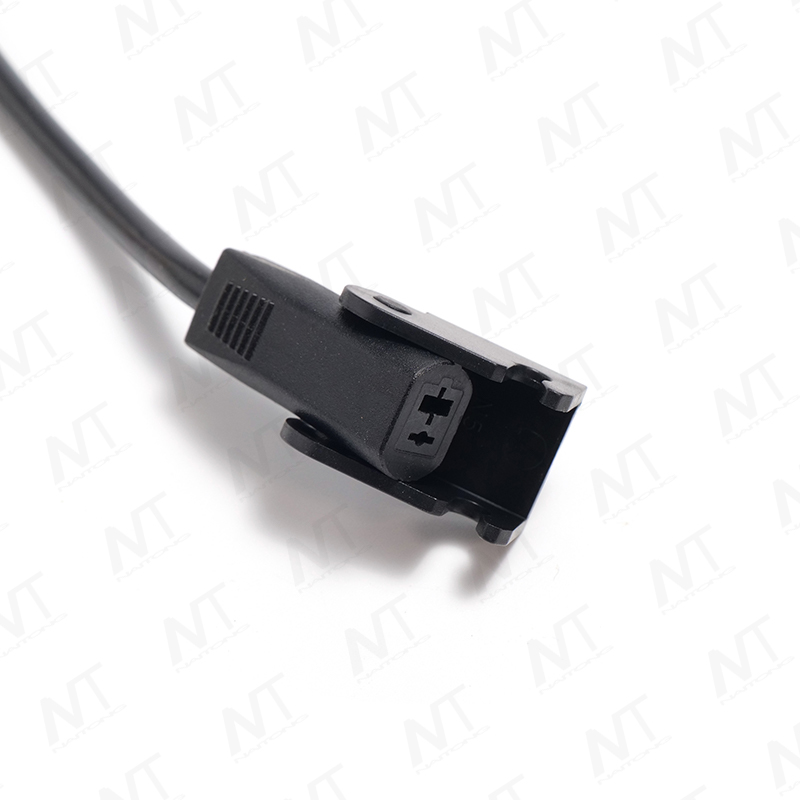

Flip-Lock 01-Type 2-Pin Female Socket

Standard flip-lock 2-pin quick-connect female connector, used for low-voltage power supply to electric lift actuators, small sensor LED strips, and limit switches; pressing down the flip cover automatically locks the connector, tool-free assembly/disassembly, with single-circuit faults individually serviceable.
