In-Vehicle/Marine Embedded USB+3.5mm Audio+RCA Audio Wire Harness / RCA Harness

Model: NT-XH26054

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：Dual Ferrite Ring USB Male-to-Male EMI Data Cable NEXT：Electric Vehicle Brushless Controller Main Signal Hall Interface Wire Harness

Description

Panel Embedded Side (Equipment Mounting Side)

It adopts a round threaded waterproof mounting base for cutout panel installation, integrating two interfaces in one unit:

- USB-A female jack: Supports USB 2.0 data transmission and 5V power supply, compatible with USB flash drive music playback, mobile phone charging, and data communication.

- 3.5mm AUX audio female jack: 3-pole stereo analog audio input, mating with phone or player headphone jacks, transmitting stereo audio signal.

The housing features a threaded locking nut, mountable directly on automotive center consoles, yacht control panels, or RV dashboards, secure, dust-proof, and splash-resistant.

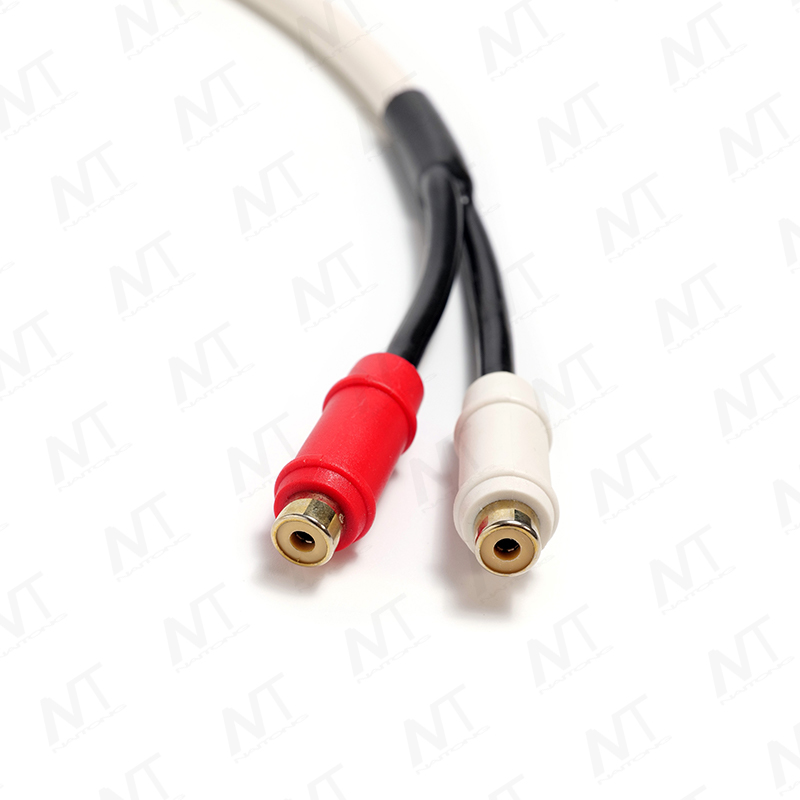

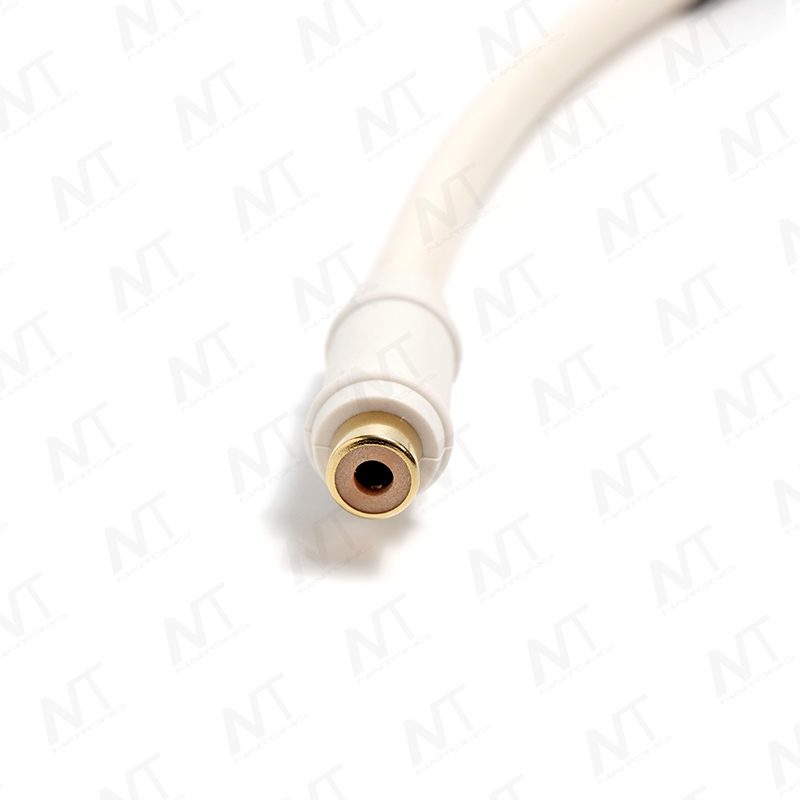

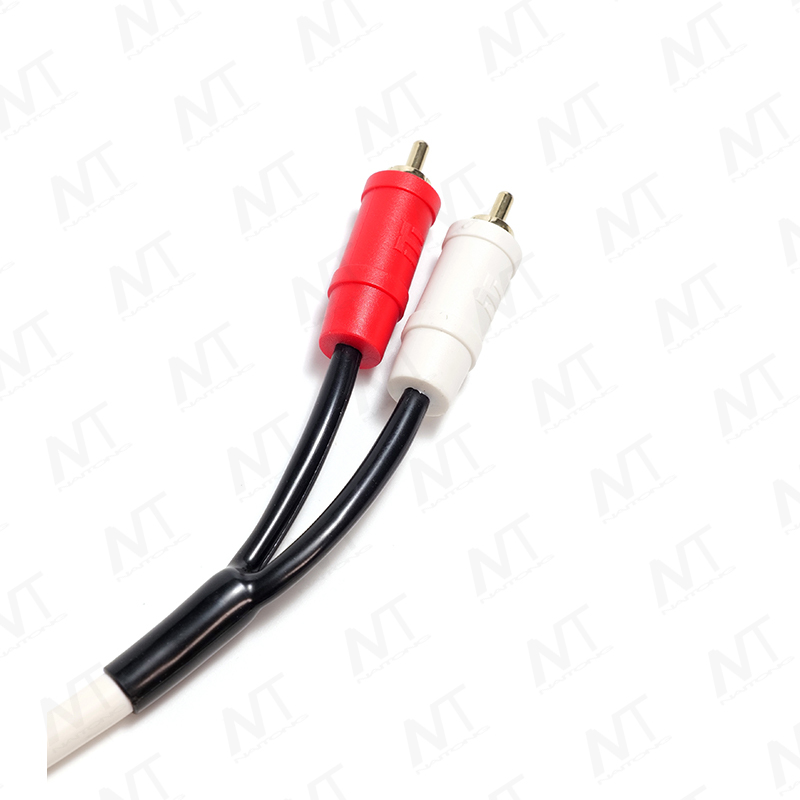

Output Splitter End (Connecting to Head Unit/Amplifier Side, Three Independent Branch Cables)

The cable is marked OIL RESISTANT, with an PVC jacket that is oil-resistant and UV stabilized, suitable for long-term outdoor/marine exposure without cracking or aging; split into 3 independent functional lines: main line oil-resistant sheath resistant to engine oil, diesel, and sea spray corrosion; black branch lines UV stabilized, suitable for outdoor use on boats, construction machinery, RVs, and modified vehicles.

Specifications

Product Name	Custom In-Vehicle/Marine Embedded USB+3.5mm Audio+RCA Audio Wire Harness
Application	Automotive, marine, etc.
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE OIL
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	USB Male + 3.5mm Audio Female + RCA Male/Female
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% electrical and power performance testing before shipment

Application

- Yacht / Speedboat Audio System Retrofit

Panel cutout mounting at the helm, in-cabin wire connecting to the marine amplifier, enabling on-water music listening and phone navigation audio output, resistant to seawater, oil, and sun exposure.

- RV / Camper Van Center Console Audio Expansion

When the original head unit lacks front USB/AUX, this harness can be added with a multimedia input port reserved on the dashboard, expanding audio sources without modifying original wire.

- Truck / Construction Machinery Audio System Retrofit

Cab environments with heavy oil exposure and strong sunlight; oil- and UV-stabilized cabling adapts to harsh conditions, connecting external phones or USB drives for music playback.

- Special Vehicle (Sightseeing Cart, Patrol Vehicle) Audio Upgrade

Uniform embedded mounting, neat appearance, waterproof and dustproof, stable audio, and USB data transmission.
