Electric Vehicle Brushless Controller Main Signal Hall Interface Wire Harness

Model: NT-XH26053

MOQ: 1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：In-Vehicle/Marine Embedded USB+3.5mm Audio+RCA Audio Wire Harness / RCA Harness NEXT：GX16-4P Aviation Male-Female Extension Wire Harness

Description

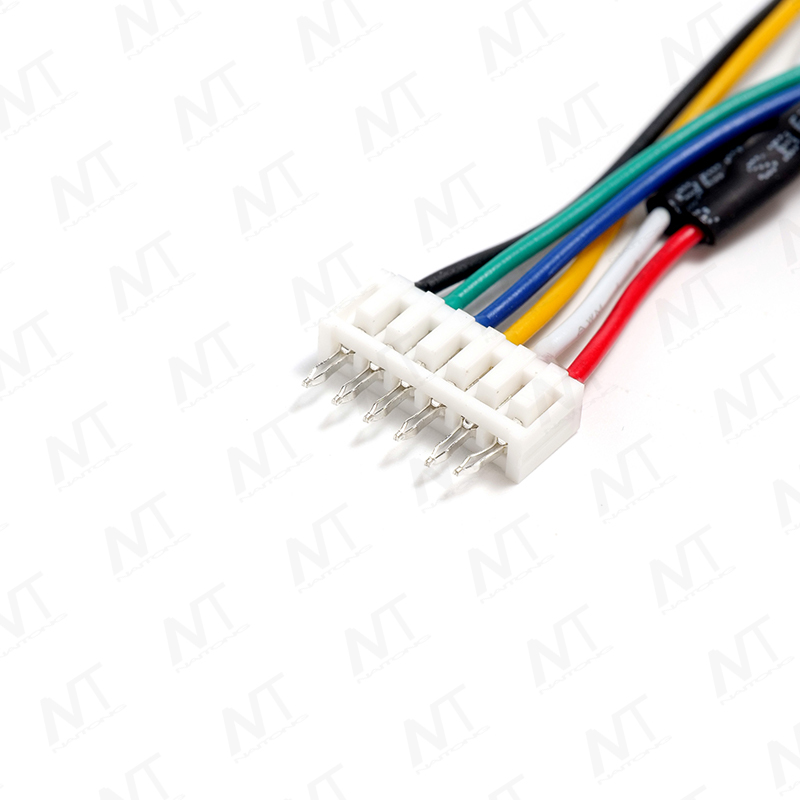

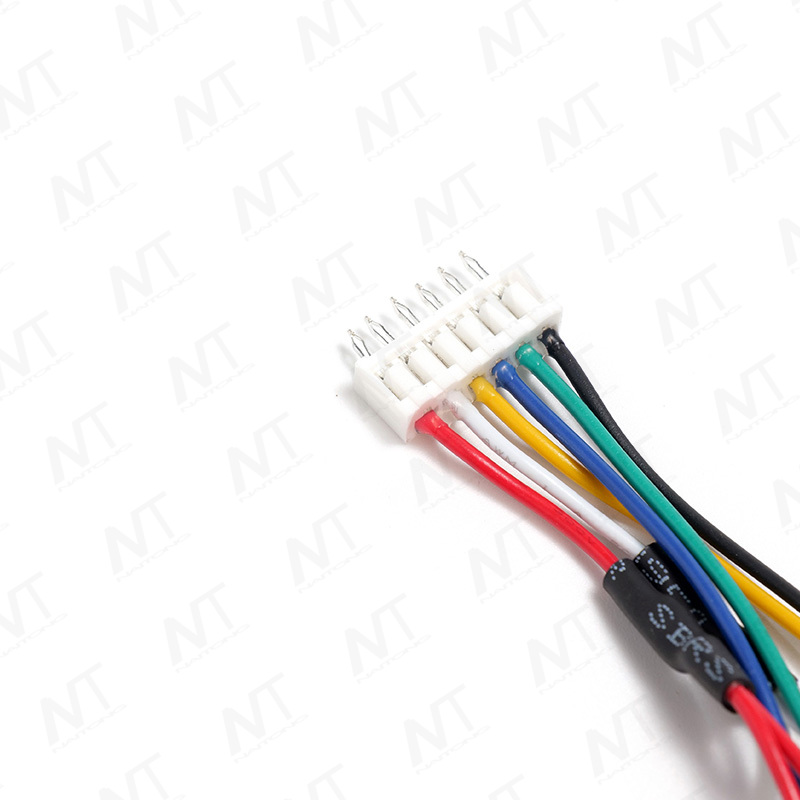

Input End: 8-pin XH2.54 straight pin header, standard XH2.54-pitch 8-pin terminal, mating with the electric vehicle brushless controller main signal Hall interface — the total signal input source of the harness, carrying 5V power supply, GND, 3-phase Hall signals, and throttle/brake control signals.

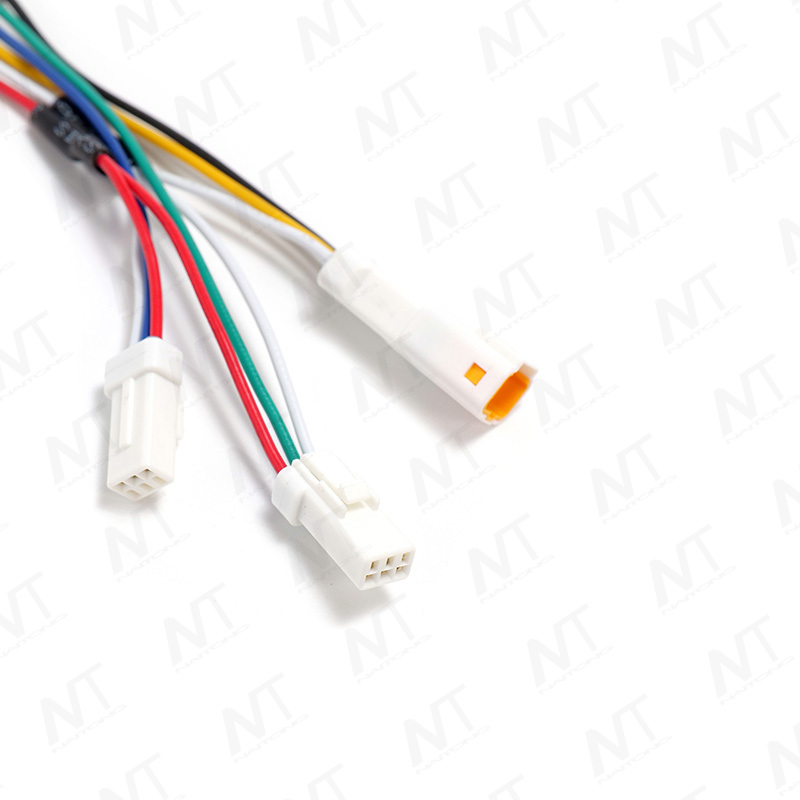

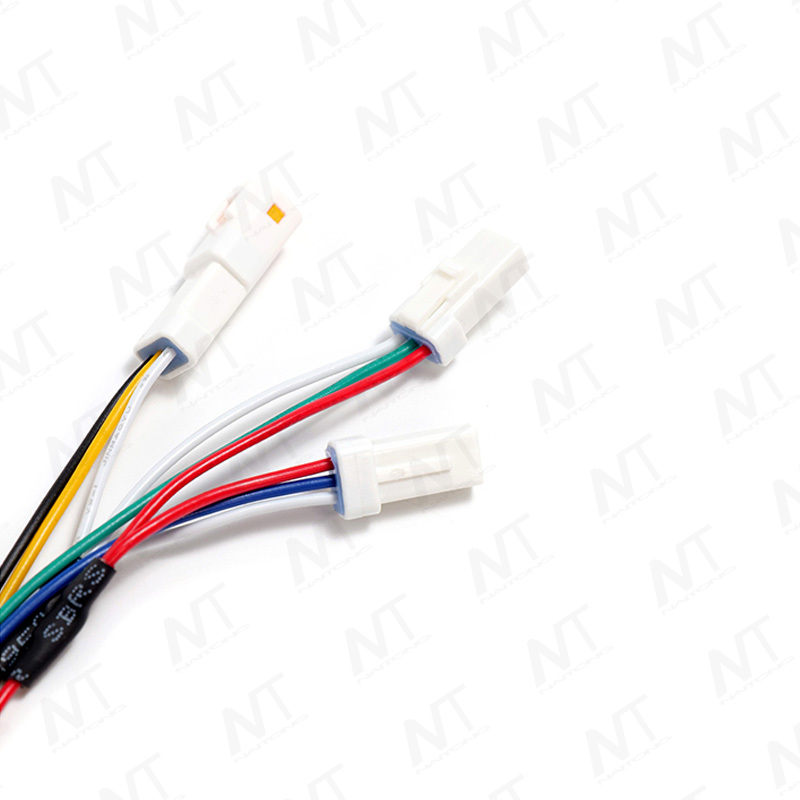

- Output End Three-Way Split (3 Independent Connectors)

- ① 6-pin white dual-row female socket (red/green/white): Dedicated motor Hall connector, transmitting 3-phase Hall signals + 5V + ground, mating with the motor Hall sensor;

- ② 4-pin white dual-row female socket (red/blue): Vehicle throttle + power-cut brake signal line, transmitting speed control voltage and brake power-cut level signal;

- ③ Single-hole orange locking waterproof connector (yellow/black): Power/auxiliary function signal line, typically the instrument speed signal line, anti-theft lock phase line, or low-power lighting control.

Specifications

Product Name	Custom Hall Signal Cable Assembly for EV Brushless Controllers
Application	Electric two-wheelers, 250W–1500W brushless DC motor controllers, and repair or replacement wire
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	XH2.54
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

Compatible with new national standard models from brands such as Yadea, Aima, and TAILG with built-in module controllers; universal for 250W–1500W brushless DC electric vehicle motor controllers — a standard adapter wire item kept by repair shops.
