Smart Home Large DIN Round DC Power Wire Harness

Model: NT-J26041

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：Various Types Smart Home LED Strip / Sensor / RGB / Warm White Wire NEXT：No next article

Description

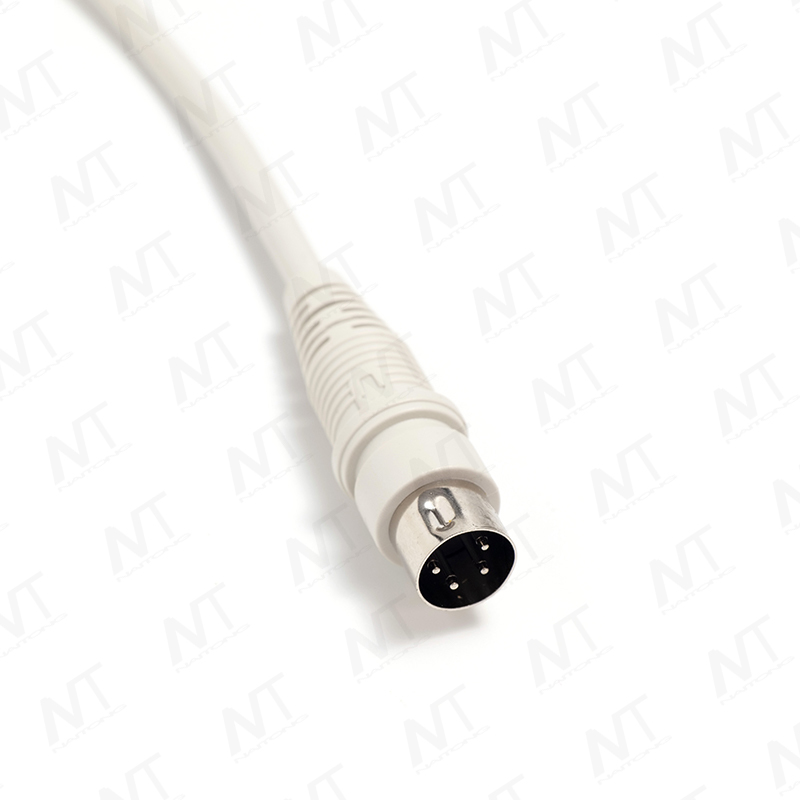

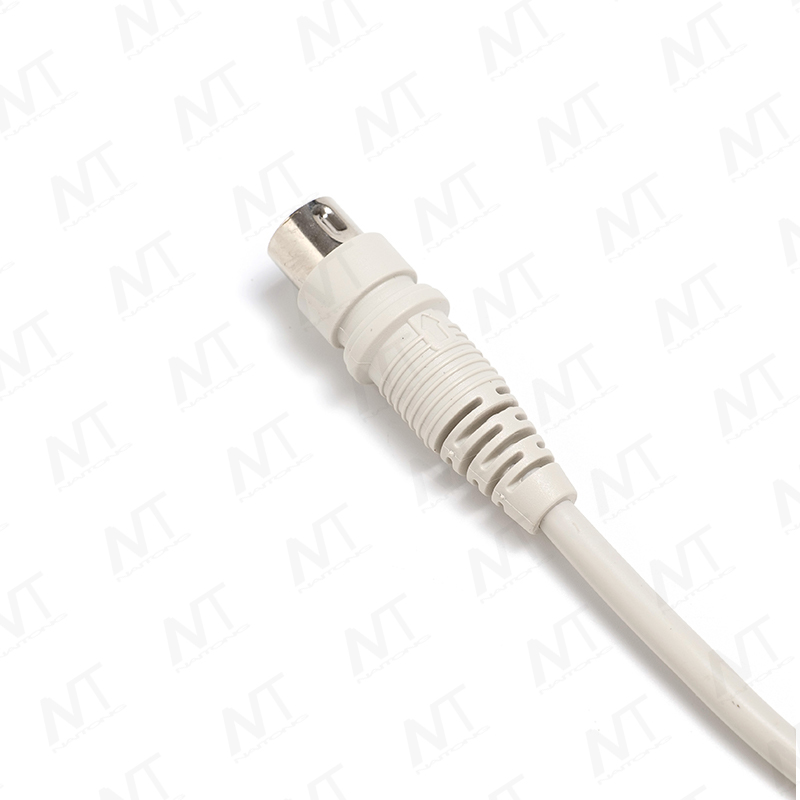

Uses a 4-core round DIN power male connector (also commonly seen in S-Video style connector dimension), with metal housing and alignment groove, polarized anti-reverse design preventing reverse insertion.

Uses white PVC-insulated cable, bend-resistant and easy to clean, adapting to the usage and cleaning needs of home environments.

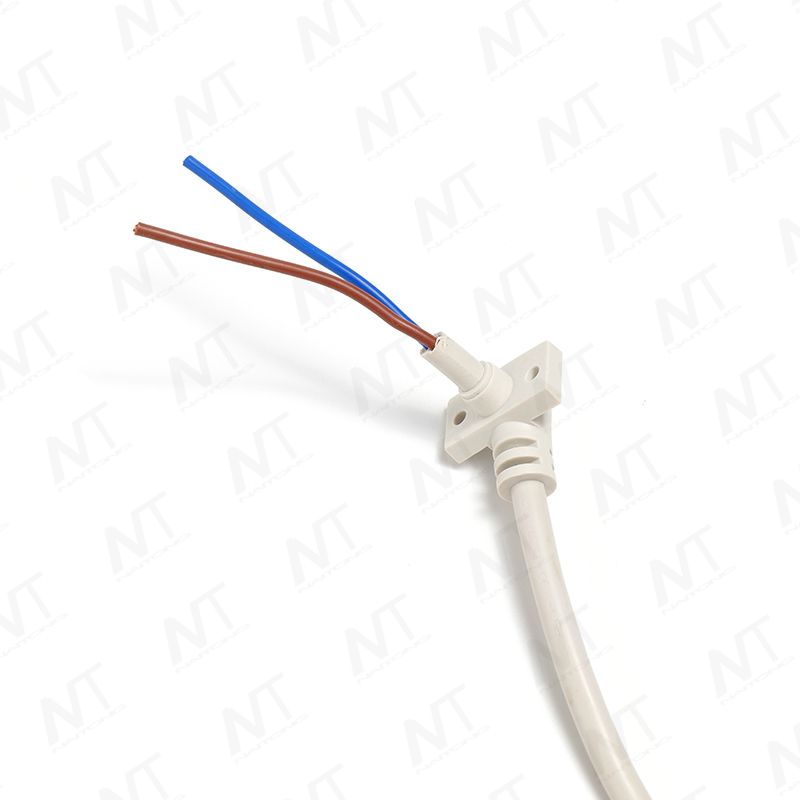

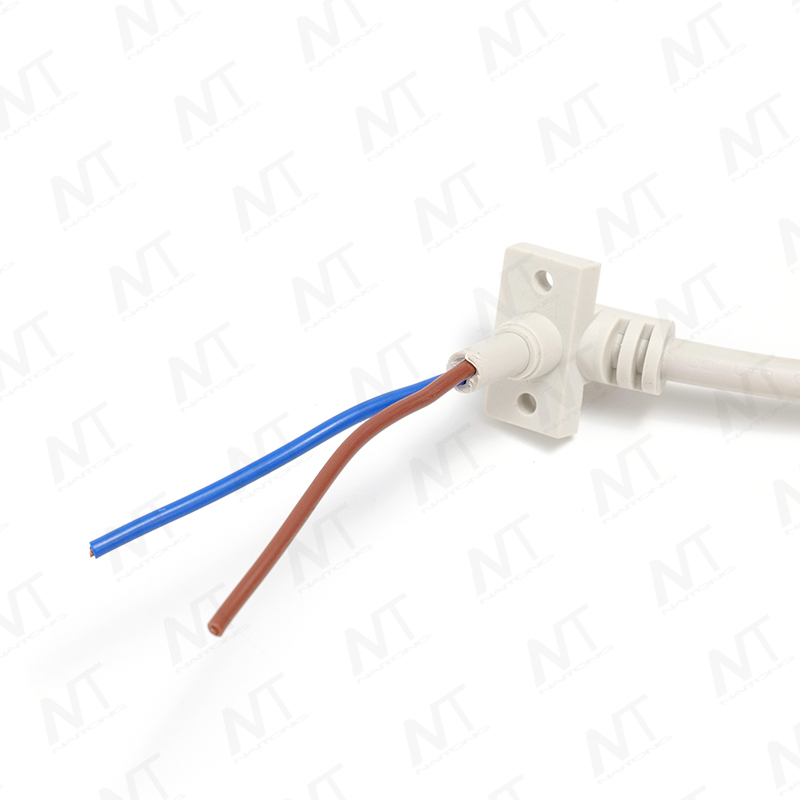

The terminal end is stripped to expose red/blue (brown/blue) wire cores, corresponding to positive and negative power terminals, which can be directly soldered or crimped to device power boards or adapter terminals.

Cable length is customizable to meet the wire needs of different installation positions for smart home devices.

Specifications

Product Name	Smart Home Large DIN Round DC Power Wire Harness
Application	Smart home / electric furniture
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper, IEC 60601
Outer Insulation Material	PVC, TPU, TPE (compliant with ISO 10993) Sterile Standard
Cable Sheath	TPU/PVC/TPE/Silicone (compliant with ISO 10993) Sterile Standard
Connector Type	Large DIN
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1+Ag Silver-Plated Copper, IEC 60601
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% electrical and power performance testing before shipment
