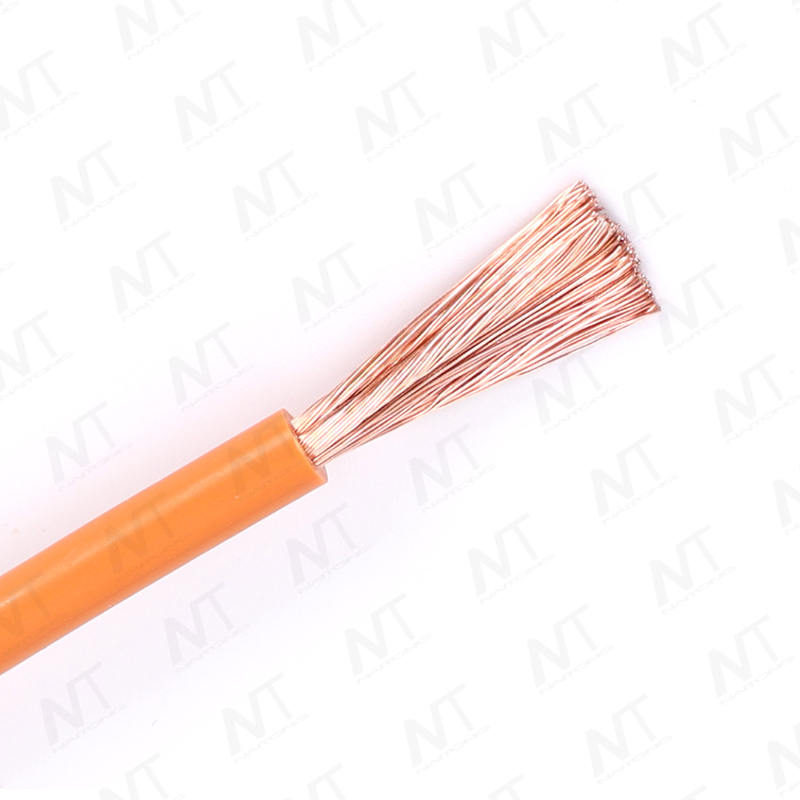

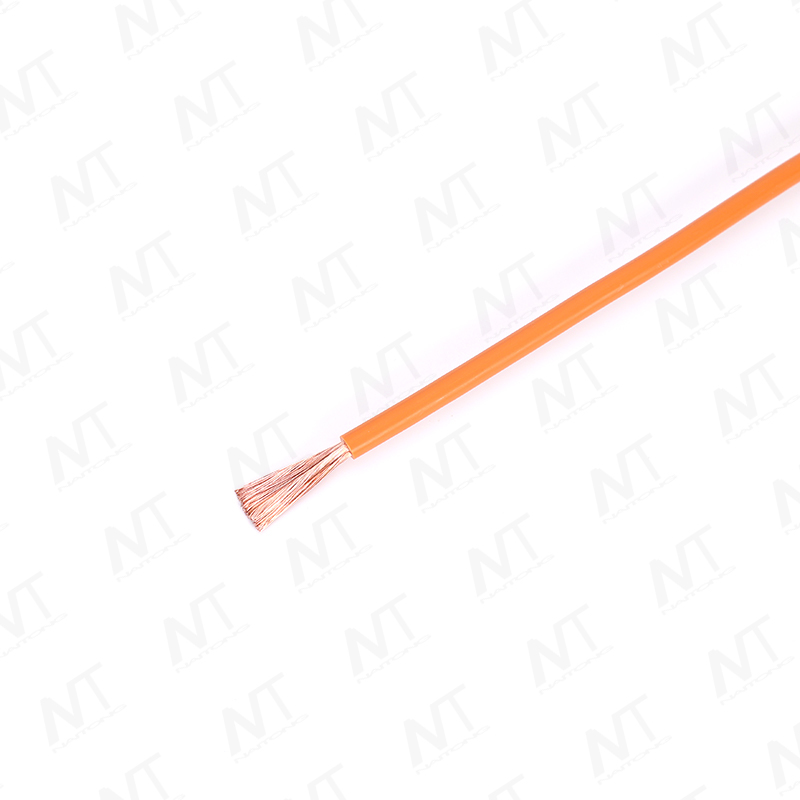

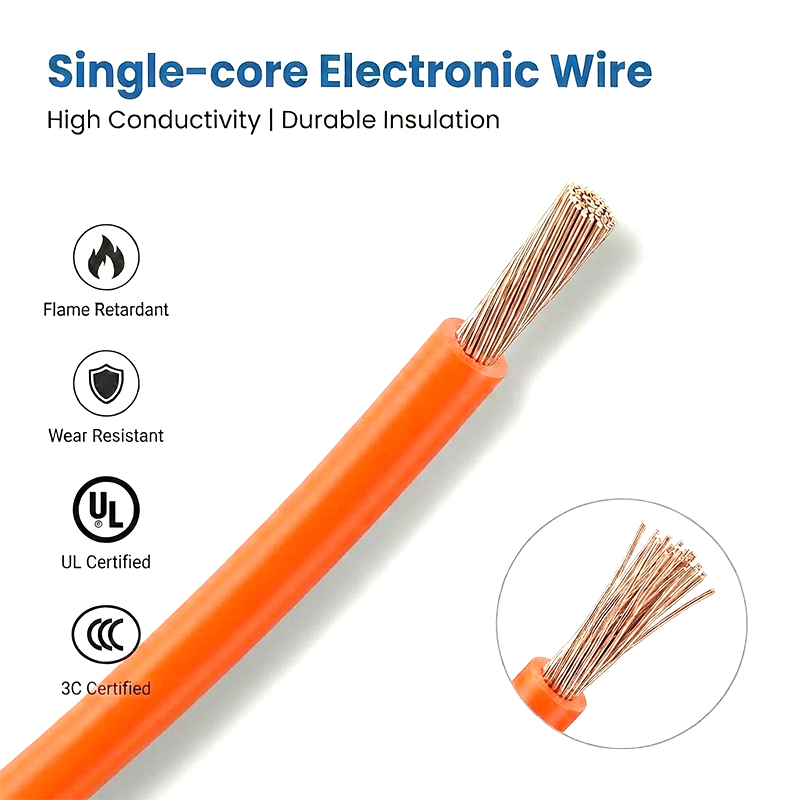

UL1015 Single-Core Wire

Product Description and Applications

Rated voltage: 600V; rated temperature: 105°C

Conductor: Solid or stranded 30 AWG bare or tinned copper wire

PVC insulation

Passes UL VW-1 and CSA FT1/FT2 vertical and horizontal flame tests

Standard insulation thickness; easy to strip and cut

Resistant to acids, alkalis, oil, moisture, and mold

Contact us

PREV：UL1569 Single-Core Wire NEXT：UL1007 Single-Core Wire

Description

Application Environment

Suitable for internal wire of general electronic and electrical equipment; when exposed to an oily environment, the temperature must not exceed 60°C or 80°C.

Specifications

Conductor type	Conductor			Insulation		Maximum conductor resistance at 20℃		Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	Line gauge	Wire count/wire diameter	Diameter	Nominal thickness	Nominal outer diameter	Tin plating	Bare copper	Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	AWG	NO./mm	mm	mm	mm	Ω/KM	Ω/KM	MΩ/KM	In	Ft(M)
Stranded conductor	30	7/0.10	0.30	0.79 0.76	1.88	381	354.24 354	15	2000	2000(610)
	28	7/0.127	0.38	0.79 0.76	1.96	239	223.75 223	15	2000	2000(610)
	26	7/0.16	0.48	0.79 0.76	2.06	150	139.73 140	15	2000	2000(610)
	24	11/0.16	0.61	0.79 0.76	2.19	94.2	93.30 87.6	15	2000	2000(610)
	22	17/0.16	0.76	0.79 0.76	2.34	59.4	55.00 55.4	15	2000	2000(610)
	20	26/0.16	0.94	0.79 0.76	2.52	36.7	34.60	15	2000	2000(610)
	18	41/0.16	1.18	0.79 0.76	2.76	23.2	21.80	15	2000	2000(610)
	16	26/0.254	1.49	0.79 0.76	3.07	14.6	13.70	15	2000	2000(610)
	14	41/0.254	1.88	0.79 0.76	3.46	8.96	8.62	15	2000	2000(610)
	12	65/0.254	2.37	0.79 0.76	3.95	5.64	5.43	15	2000	2000(610)
	10	105/0.254	3.40	0.79 0.76	4.98	3.546	3.41 3.409	15	2000	2000(610)
	8	168/0.254	4.31	1.15 1.14	6.60	2.23	2.16 2.144	15	2000	2000(610)
	6	124/0.37	5.43	1.52	8.50	1.403	1.39 1.348	15	2000	2000(610)
	4	196/0.37	6.78	1.52	9.80	0.882	1.88 0.8481	15	2000	2000(610)
	2	213/0.37	9.04	1.52	12.10	0.5548	0.55 0.5335	15	2000	2000(610)
	1	824/0.254	9.80	1.52 2.03	13.70	0.4398	0.44 0.423	15	2000	2000(610)
Single conductor	28	1/0.32	0.32	0.76	1.90	227	227.39	15	2000	2000(610)
	26	1/0.404	0.404	0.76	1.98	143	142.79	15	2000	2000(610)
	24	1/0.511	0.511	0.76	2.09	89.3	89.39	15	2000	2000(610)
	22	1/0.643	0.643	0.76	2.22	56.4	54.30	15	2000	2000(610)
	20	1/0.813	0.813	0.76	2.39	35.2	33.90	15	2000	2000(610)
	18	1/1.024	1.024	0.76	2.60	22.2	21.40	15	2000	2000(610)
	16	1/1.29	1.29	0.76	2.87	14.0	13.50	15	2000	2000(610)
