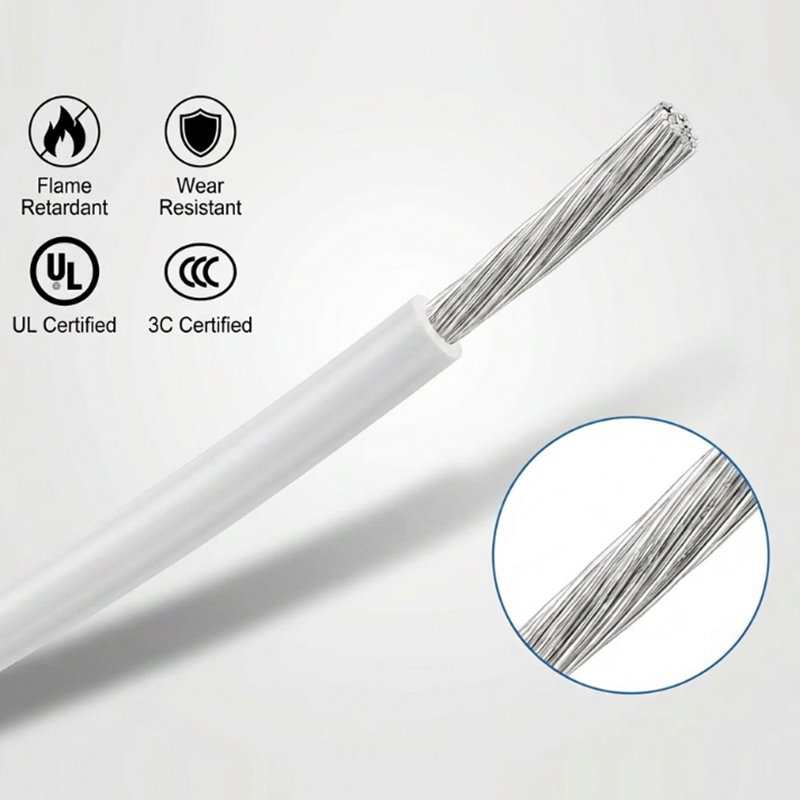

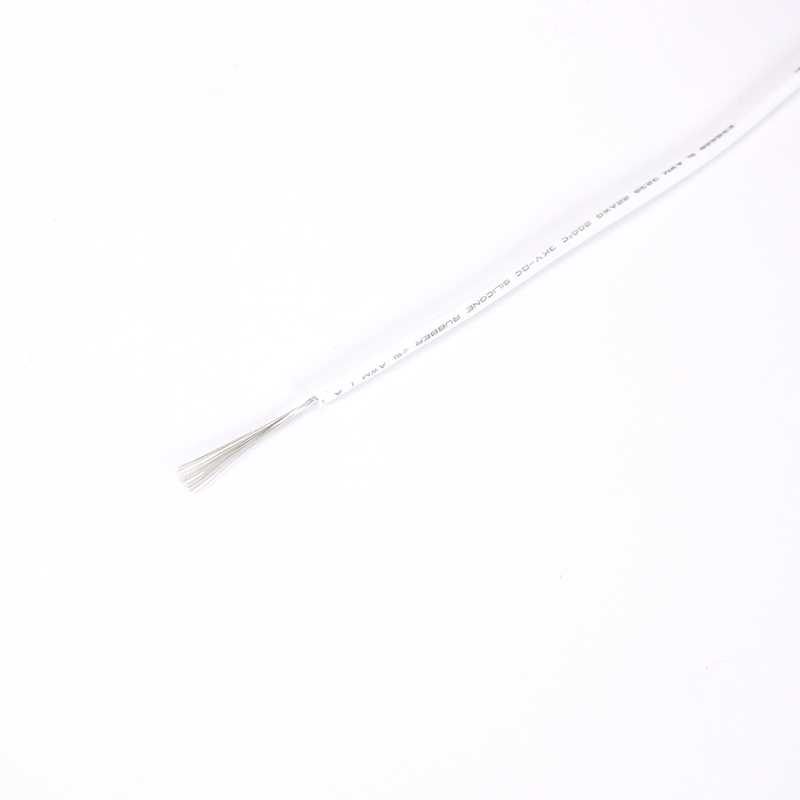

UL1007 Single-Core Wire

Product Description and Applications

Rated voltage: 300V; rated temperature: 80°C

Conductor: Solid or stranded bare or tinned copper wire (32–16 AWG)

PVC insulation

Passes UL VW-1 and CSA FT1/FT2 vertical and horizontal flame tests

Standard insulation thickness; easy to strip and cut

Resistant to acids, alkalis, oil, moisture, and mold

Contact us

PREV：UL1015 Single-Core Wire NEXT：No next article

Description

Application Environment

Suitable for internal wire of general electronic and electrical equipment; when exposed to an oily environment, the temperature must not exceed 60°C or 80°C.

Specifications

Conductor type	Conductor			Insulation		Maximum conductor resistance at 20℃		Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	Line gauge	Wire count/wire diameter	Diameter	Nominal thickness	Dominal outer diameter	Tin plating	Bare copper	Resistance of the most conductive material at 90℃	Withstand voltage	Standard length
	AWG	NO./mm	mm	mm	mm	Ω/KM	Ω/KM	MΩ/KM	In	Ft(M)
Stranded conductor	30	7/0.10	0.3	0.41 0.38	1.12	381	354.24 354	15	1500	2000(610)
	28	7/0.127	0.38	0.41 0.38	1.20	239	223.75 223	15	1500	2000(610)
	26	7/0.16	0.48	0.41 0.38	1.30	150	139.73 140	15	1500	2000(610)
	24	11/0.16	0.61	0.41 0.38	1.43	94.2	93.30 87.6	15	1500	2000(610)
	22	17/0.16	0.76	0.41 0.38	1.58	59.4	55.00 55.4	15	1500	2000(610)
	20	26/0.16	0.94	0.41 0.38	1.76	36.7	34.60	15	1500	2000(610)
	18	41/0.16	1.18	0.41 0.38	2.00	23.2	21.80	15	1500	2000(610)
	16	26/0.254	1.49	0.41 0.38	2.31	14.6	13.70	15	1500	2000(610)
single conductor	28	1/0.32	0.32	0.41 0.38	1.14	227	227.39 218	15	1500	2000(610)
	26	1/0.404	0.404	0.41 0.38	1.22	143	142.79 138	15	1500	2000(610)
	24	1/0.511	0.511	0.41 0.38	1.33	89.3	89.39 85.9	15	1500	2000(610)
	22	1/0.643	0.643	0.41 0.38	1.46	56.4	51.30 54.3	15	1500	2000(610)
	20	1/0.813	0.813	0.41 0.38	1.63	35.2	33.90	15	1500	2000(610)
	18	1/1.024	1.024	0.41 0.38	1.84	22.2	21.40	15	1500	2000(610)
	16	1/1.29	1.29	0.41 0.38	2.11	14.0	13.50	15	1500	2000(610)
Overall tin plating	26	7/0.16	0.48	0.41 0.38	1.30		139.73	15	1500	2000(610)
	24	11/0.16	0.61	0.41 0.38	1.43		86.00	15	1500	2000(610)
	22	26/0.16	0.76	0.41 0.38	1.58		54.80	15	1500	2000(610)
	20	41/0.16	0.94	0.41 0.38	1.78		34.20	15	1500	2000(610)
	18	26/0.254	1.18	0.41 0.38	2.03		23.20	15	1500	2000(610)
