DB9 (RS232) Serial Port Wire Harness

Model: NT-GK26038

Minimum Order Quantity: 1,000 pcs

Payment Terms: T/T 30% deposit, balance before shipment

Lead Time: Samples 3–15 days, bulk orders 2–4 weeks

Port of Shipment: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: customized box, label, and pallet.



Contact us
PREV：Industrial Automation Equipment Power Wire HarnessNEXT：Industrial automation High-density signal transmission wire harness
  • Description

DB9 (D-sub 9-pin) interface serial port harness, the most common RS232/RS485 signal transmission cable in industrial control, equipment commissioning, and data communications.

DB9 female to 3-Pin JST terminal cable, commonly used for serial communication between internal modules within a device

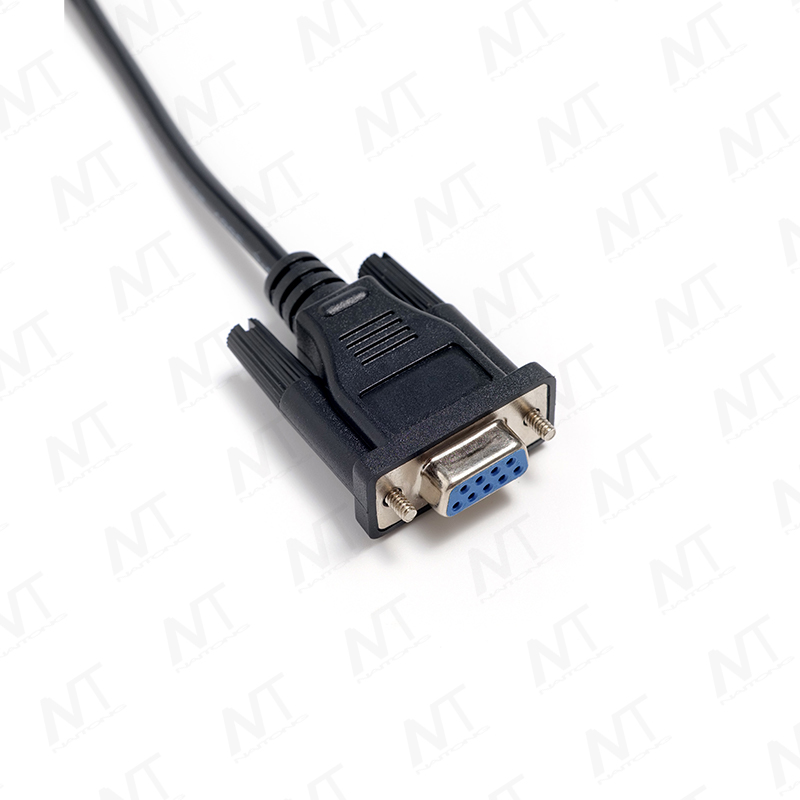

Standard DB9 female finished serial cable, commonly used for connections between devices and computers, PLCs, or other external equipment

  • Specifications

Product Name

Custom DB9 (RS232) Serial Port Wire Harness

Application Field

Industrial Robots, Industrial Automation Equipment, New Energy Equipment

Cable Color

As per customer requirements

Cable Length

As per customer requirements

Conductor

As per customer requirements

Outer Insulation Material

TPU, PVC, PE (Polyvinyl Chloride) (Thin-wall)

Cable Sheath

PE/TPU/XLPE, etc.

Connector Type

DB9/DB25 Connector

Pin Definition Connection

As per customer requirements

Inner Copper

Tinned / Bare Copper

Quality Certificates

ISO9001, IATF16949, ROHS, UL, SGS, REACH

Performance Testing:

100% Terminal Inspection & 100% Electrical Performance Test & 100% FQC & AQL=0.65



  • Application

Industrial Equipment Commissioning and Communication

Used for parameter configuration, program download, and data monitoring between PLCs, inverters, servo drives, and computers

Industrial PC / Test Equipment Data Transmission

Connecting data acquisition cards, test instruments, and host computers for real-time serial data transmission and recording

Internal Module Communication Within Equipment

The terminal cable in Figure 1 is commonly used for serial communication between the device's mainboard and expansion modules (such as displays and control boards)
