Truck diagnostic SAE J1939 conversion cable with APEX 2.8MM series connectors

Model: NT-OBD26008

Minimum order quantity: 500 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：automotive engine modification Complete wire harness NEXT：Automotive wire harness assembly with MCP connectors

Description

Custom truck diagnostic SAE J1939 conversion cable with APEX 2.8MM series connectors.

APEX connector harness assembly

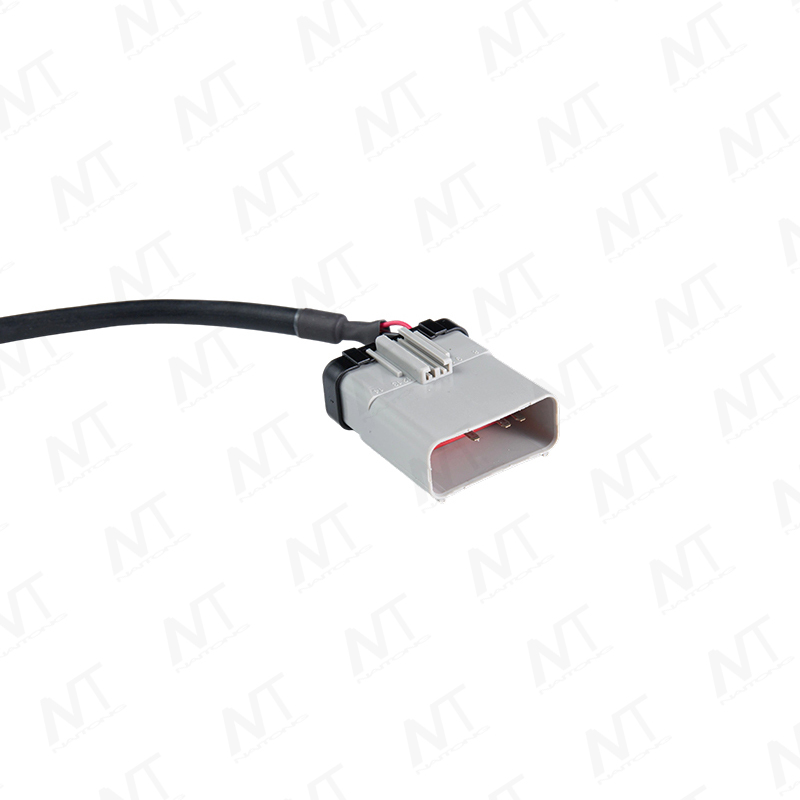

APEX 2.8MM 54201416 CODE B & 54201412 CODE B 14-channel connector

14-channel APEX 2.8mm automotive connector system, gray male and female connectors
suitable for accessory connectors on heavy-duty trucks from 2019 onwards.

APEX Connector Series

APEX wire connectors are designed for harsh environments, including vibration, extreme temperatures, and humidity. These high-performance connectors are ideal for challenging applications such as automotive, construction, and agriculture. They feature a robust design and high reliability. Aptiv APEX wire connectors are available in a variety of pin counts, mounting options, contact plating, and more.

Specifications

Product Name	SAE J1939 adapter cable with APEX 2.8MM series connector
Application	Automotive connectors
Cable color	According to customer requirements
Cable length	According to customer requirements
Connector position	14-digit
Connector type	male head
Appropriate wire specifications (connector)	20AWG to 12AWG
Connector Series	APEX
Housing materials	Polyamide (PA)
Material	Ultramid A3EG7 Nylon 6/6 GF35
OK	2 lines
Connector spacing	5.25mm
Applicable wire gauge (terminal)	20AWG to 18AW
Terminal material	Copper and Tin
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance testing:	100% terminal inspection & 100% electrical performance testing & 100% FQC & AQL=0.65

Application

We specialize in providing custom wire harness for all types of cables and connectors, covering all industry sectors. We create unique molded cable assemblies tailored to your specified shape, size, pin configuration, and cable material to meet the needs of Ethernet, automation, marine, truck, bus, e-bike, vehicle, and transportation applications.
