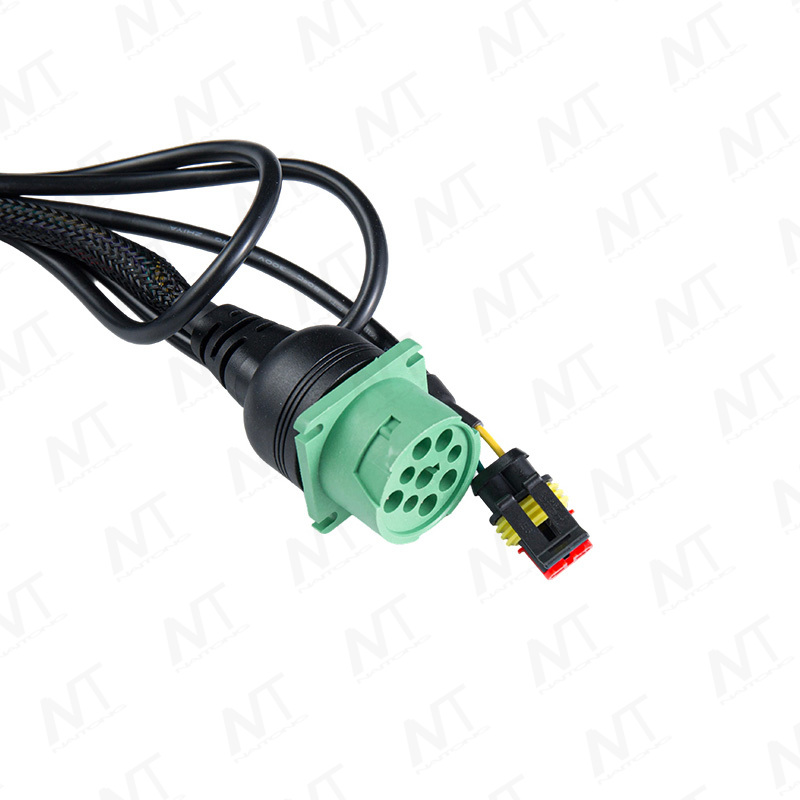

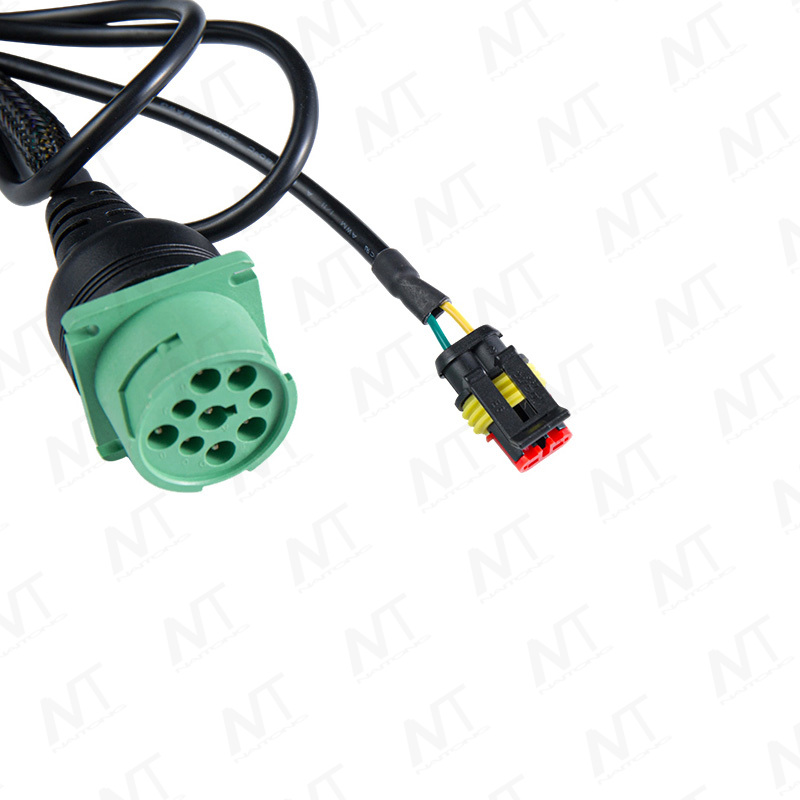

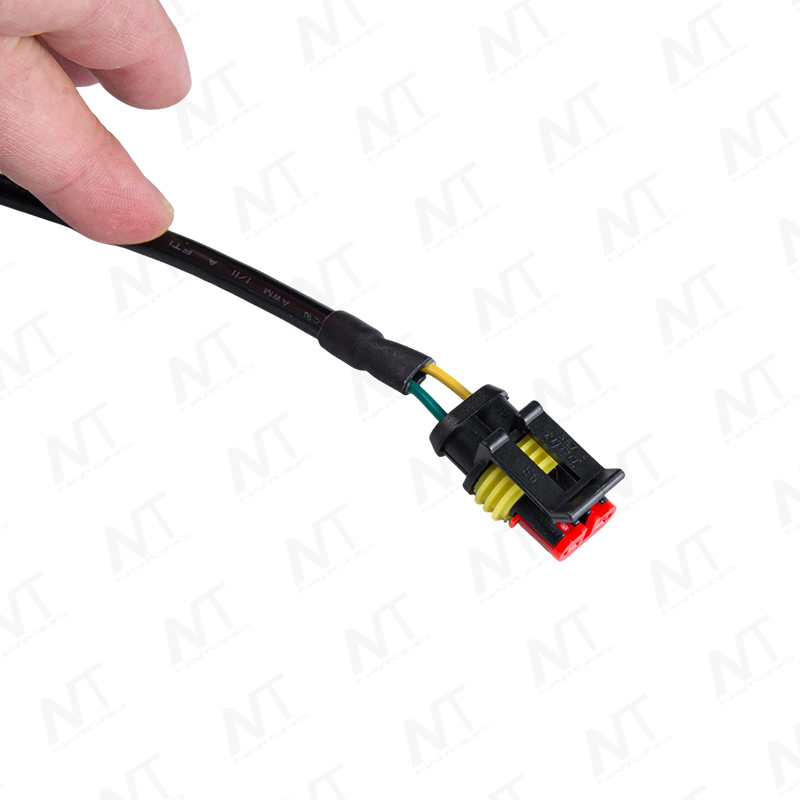

Heavy-duty truck J1939 green connector Diagnostic cable

Model: NT-OBD26005

Minimum order quantity: 500 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：Right-angle SAE J1939 to TE 967644-1 communication cable NEXT：ECU connectors automotive dashboard wire harness robotic wire harness

Description

SAE Green J1939M to J1939P Cable Assembly

The SAE J1939 standard is an alternative to the older J1708 and J1587 protocols. The J1939 standard defines a large number of monitorable parameters, which are referenced by Parameter Group Numbers (PGNs). Below is an application example of our software collecting J1939 CAN data during the daily driving routes of heavy-duty waste collection vehicles.

The real-time data available for monitoring and on-board diagnostics far exceeds previous standards, replacing outdated systems such as mechanical odometers. Real-time monitoring via telematics, integrated with GPS and wireless communication systems, enables complete fleet management and monitoring solutions with extremely low barriers to entry.

We can provide you with customized data acquisition solutions to meet your specific parameter requirements.

Specifications

Product Name	Diagnostic cable for J1939 green connector for heavy-duty trucks
application	Automotive diagnostic system
	Diesel trucks, buses, highway vehicles, off-highway vehicles,
	Ship propulsion, power generation, and industrial pumping
	Communication systems in agricultural, construction, fire/rescue, and other vehicles.
Cable color	According to customer requirements
Cable length	According to customer requirements
Cable sheath	PE, PP, SR-PVC, PVC...
Cable cross-section	26AWG, 24WG, 20AWG, 18AWG, etc.
Contact type	Welding or crimping
Connector Series	J1939
Applicable wire specifications (terminals)	20AWG to 18AWG
Quality Certificate	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance testing:	100% terminal inspection & 100% electrical performance testing & 100% FQC & AQL=0.65

Application

The J1939 protocol is used in heavy-duty vehicles and industrial applications, based on the OBD2 Controller Area Network (CAN) protocol used in all new vehicle models.
Its numerous uses include:

Diesel-powered vehicles
for on-road and off-road use; gasoline-powered vehicles;
liquefied natural gas (LNG) vehicles;
agricultural and forestry machinery (ISO 11783); trucks and buses; on-board networks for power generation and industrial pumping; truck-trailer communication; recreational vehicles; marine systems (NMEA2000); military vehicles (MiLCAN
fleet management system.
