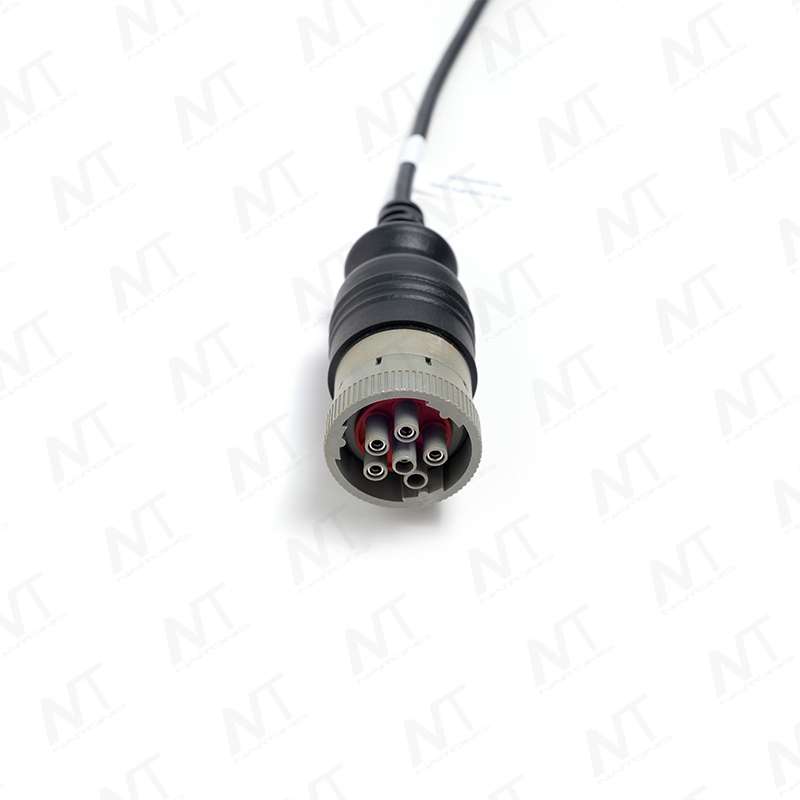

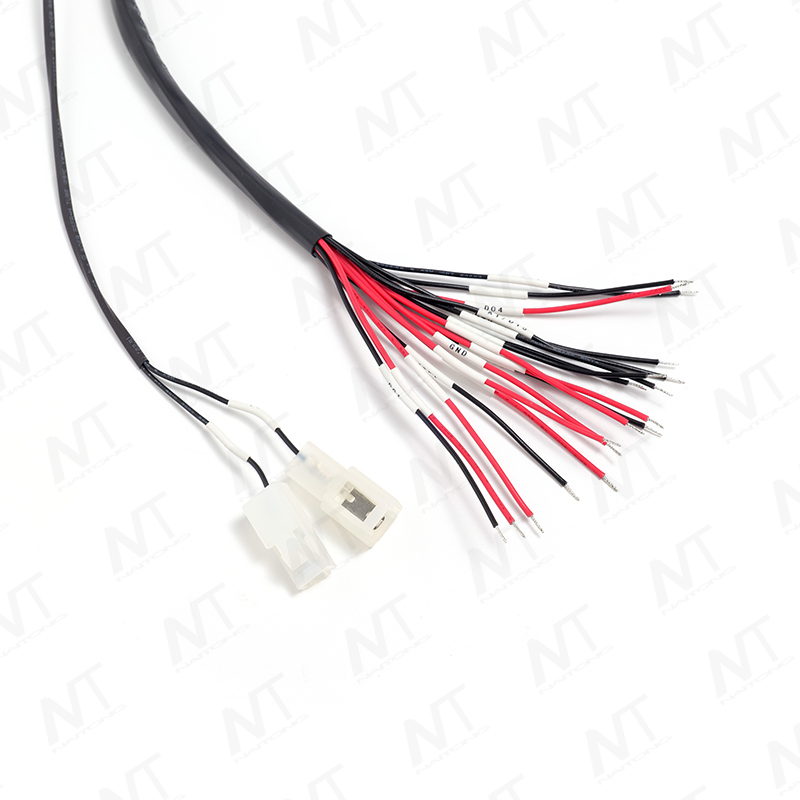

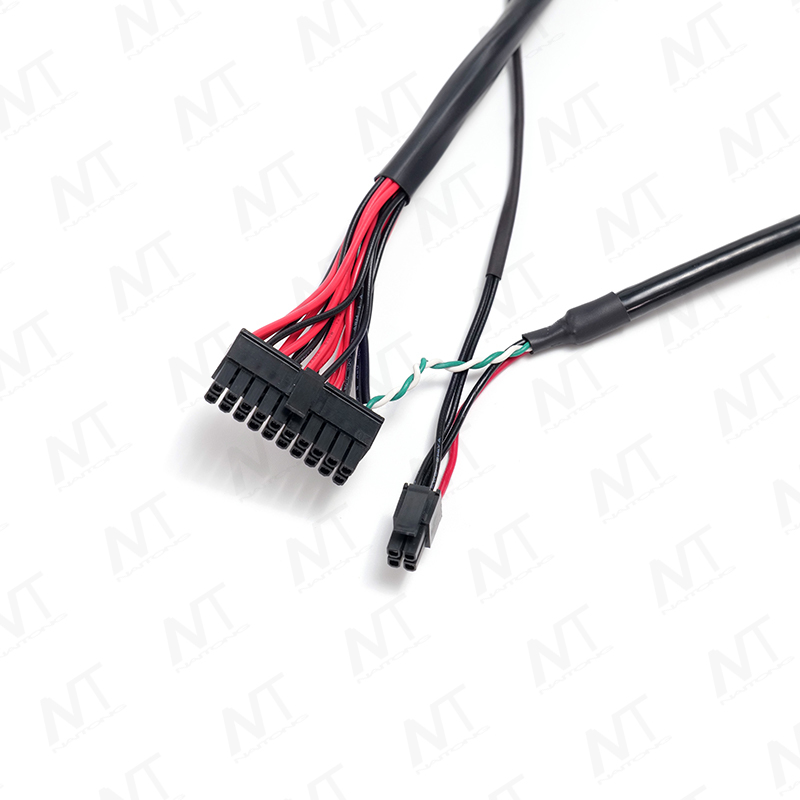

SAE J1939 female connector to Molex 43025 miniature connector

Model: NT-OBD26001

Minimum order quantity: 1000 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：OBD2 male connector to Molex 43025 miniature connector NEXT：No next article

Description

Product Description

The SAE J1939 standard defines a large number of monitorable parameters, which are referenced by Parameter Group Numbers (PGNs). Below are some examples of our software in practical applications, demonstrating its ability to collect J1939 CAN data along the daily routes of heavy-duty waste collection vehicles.

The real-time data available for monitoring and on-board diagnostics far exceeds previous standards, replacing outdated systems such as mechanical odometers. Real-time monitoring via telematics, integrated with GPS and wireless communication systems, enables complete fleet management and monitoring solutions with extremely low barriers to entry.

We can provide customized data acquisition solutions to meet your specific parameter requirements. This OBD cable uses a gray J1939 female connector to a Molex 43025 connector. The gray J1939 female connector features a plastic-coated design. Furthermore, we possess our own molds for these J1939 connectors.

Specifications

Product Specifications

Product Name	SAEJ1939 female connector to MOLEX43025 connector
Application areas	Vehicle (car and truck) diagnostic systems
Cable color	According to customer requirements
Cable length	According to customer requirements
conductor	According to customer requirements
External insulation material	PVC (Polyvinyl Chloride) (Thin-walled)
Cable sheath	PVC/TPU/XLPE, etc.
Connector type	J1939 9-pin female and male connectors, available in round and square shapes, and in green and black. 10-pin miniature connector.
Pin definition connection	According to customer requirements
Inner copper	Tin-plated/bare copper
Quality Certificate	IATF16949, UL, ROHS, SGS, REACH
Performance testing:	100% terminal inspection & 100% electrical performance testing & 100% FQC & AQL=0.65

Application

Product Application

The SAE J1939 connector is used in diagnostic protocols for heavy-duty commercial vehicles. SAE J1939 describes the principles of CAN communication in commercial vehicles and the exchange of information and diagnostic data between ECUs. Its purpose is to define a standard communication mechanism, regardless of the OEM, engine/transmission manufacturer, or test system manufacturer.

Today, SAE J1939 is widely used in heavy commercial vehicles such as trucks, buses, and construction equipment. For agricultural machinery, ISOBUS is mandatory; it is based on J1939 and uses the OBD2 Controller Area Network (CAN) protocol used in all new vehicles.

Some of these applications include: ~ Diesel power systems ~ On-road and off-road gasoline-powered vehicles ~ Liquefied natural gas (LNG) vehicles ~ Agricultural and forestry machinery (ISO 11783) ~ In-vehicle networking for trucks and buses ~ Power generation and industrial pumping ~ Truck-trailer communication ~ Recreational vehicles ~ Marine systems (NMEA2000) ~ Military vehicles (MiLCAN) ~ Fleet management systems
