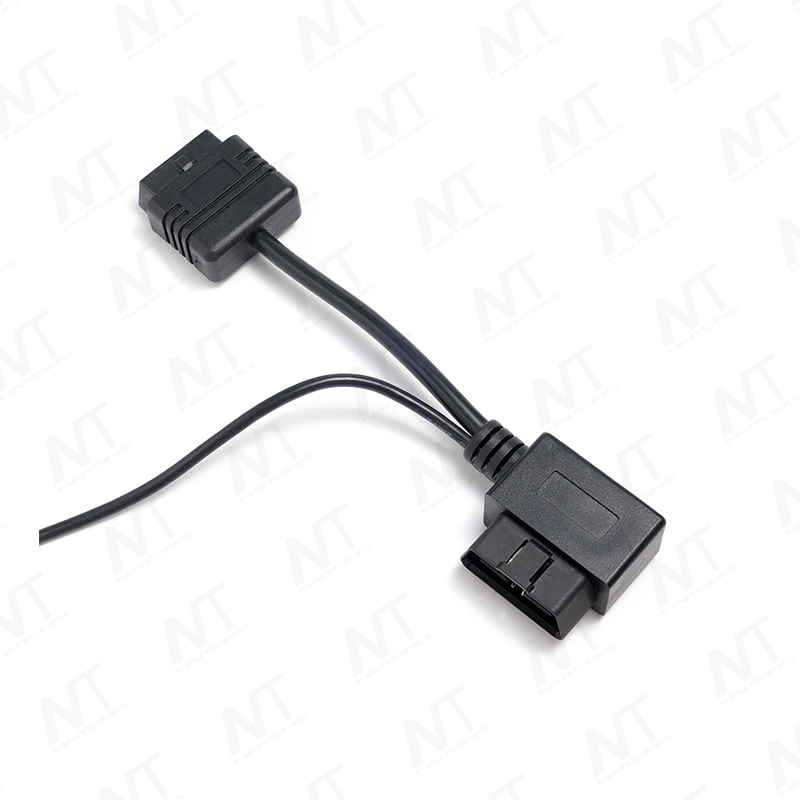

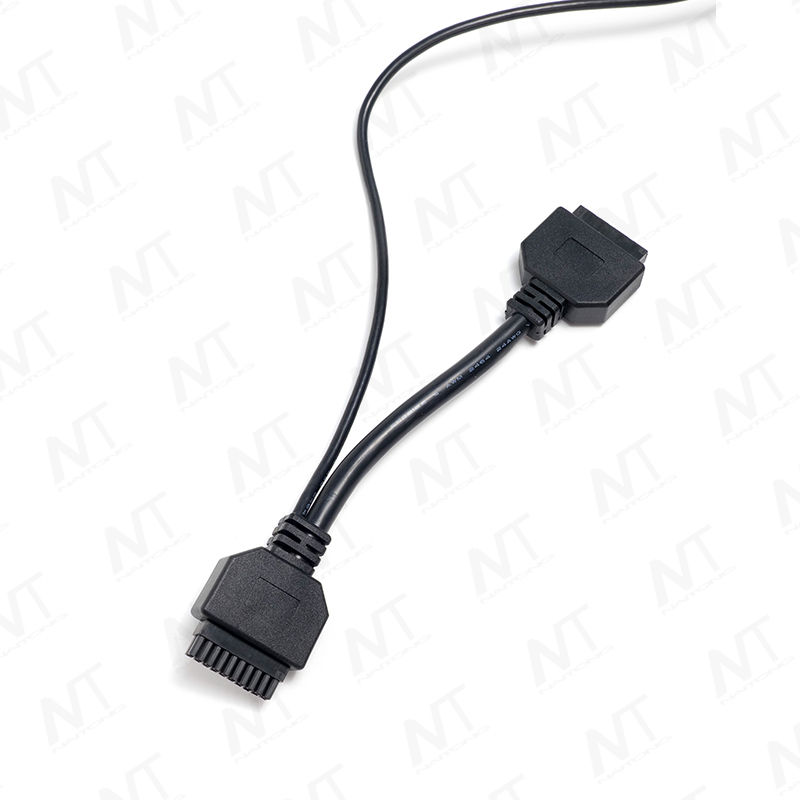

OBD2 male to Y- type extended diagnostic cable

Model: NT-OBD26003

Minimum order quantity: 500 pieces

Payment terms: 30% prepayment via T/T, balance due before shipment.

Delivery time: 3-15 days for samples, 2-4 weeks for bulk orders

Ports of origin: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Customized boxes, labels, and trays

Contact us

PREV：ECU connectors automotive dashboard wire harness robotic wire harness NEXT：OBD2 male connector to Molex 43025 miniature connector

Description

Our custom OBD connectors are ODM products; both the terminals and the plastic connectors are manufactured in-house. The external molding shape of the connector can be customized to right angles or 90 degrees. We can provide our clients with experienced solutions for evaluation, ensuring consistent quality and competitive pricing. This information is then submitted to our R&D team for analysis. Depending on the complexity of the problem, our team will either suggest a proven solution that we have used for other satisfied clients in the past or brainstorm a unique solution.

Specifications

Product Name	OBD2 male to Y- type extended diagnostic line
Application	car
Glue color (OBD connector)	Black & Customization
Core Colors (OBD Connector)	black
Terminal material (OBD connector)	Phosphor bronze pre-plated with tin
Terminal Applicable Cables	26awg-18awg
Plug test	More than 10,000 times
Cable length	Customization based on customer requirements
Cable sheath	PVC, PUR, and custom materials
Cable pin definitions	Customization
Cable cross-section	AWG 26-20 available
Withstand pressure	300V DC power
Rated current	1a-5a
Micro-Fit	Molex or custom molds
Flame retardancy	UL94-0
Spacing	3.0 pitch
Serve	Accepting OEM and ODM products
Sample	Sample confirmation is required before mass production.
Quality Certificate	IATF16949, ROHS, UL, SGS, ROHS, REACH
Performance testing	100% Terminal Inspection & 100% Electrical Performance Testing & 100% FQC & AQL=0.65

Application

The 1962 16-pin OBDii female connector is widely used in automotive, aerospace, industrial, data communication, and medical solutions industries. It is commonly used in turbine engine control, data storage modules, missile actuator controllers, vehicle information services, J1939 CAN bus diagnostic units, fault clearing diagnostics, vehicle/garage diagnostic equipment, diagnostic (scanner) kits, Play Plus diagnostic kits, garage diagnostic equipment, diesel engine optimization equipment, VAG diagnostic tools, etc. All vehicles equipped with an OBDii interface require the use of an OBDii female connector .
