Dual Ferrite Ring USB Male-to-Male EMI Data Cable

Model: NT-XH26055

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：Multi-Branch Ferrite-Equipped Industrial Control Splitter Wire Harness NEXT：In-Vehicle/Marine Embedded USB+3.5mm Audio+RCA Audio Wire Harness / RCA Harness

Description

Product Structure and Hardware Specifications

- Interface Type

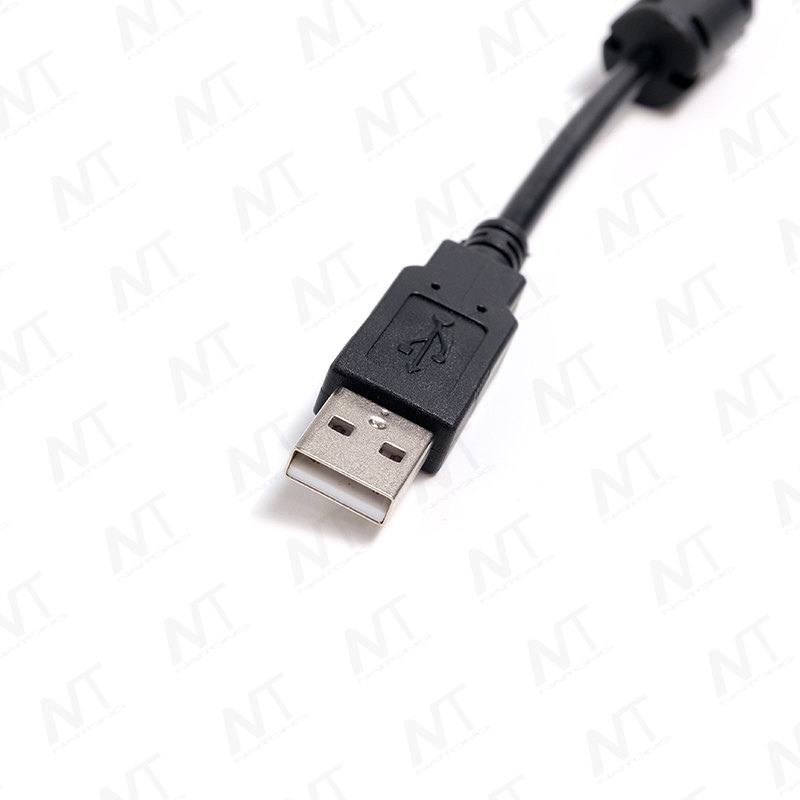

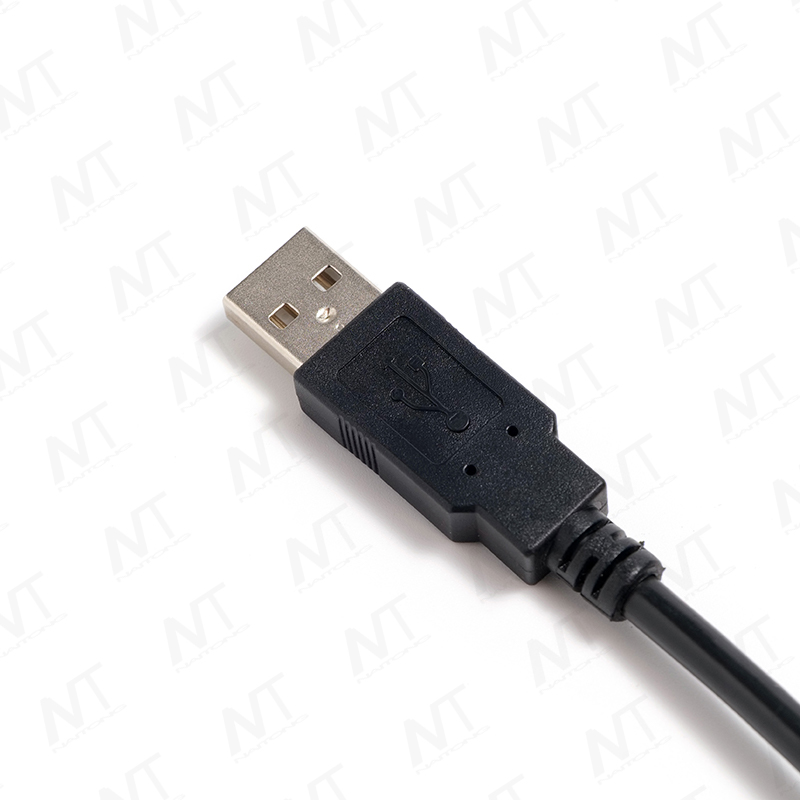

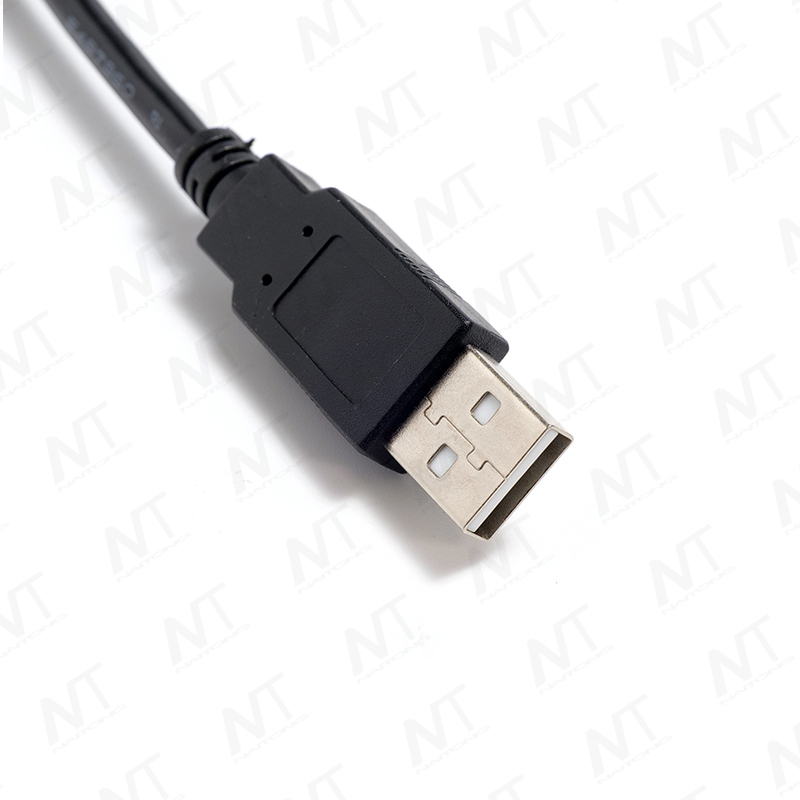

Standard USB-A male connectors (USB2.0 spec) at both ends, 4-core cable: 2 wires for 5V power and 2 differential data signal wires, supporting both data transmission and 5V low-voltage power supply.

- EMI Configuration (Core Feature)

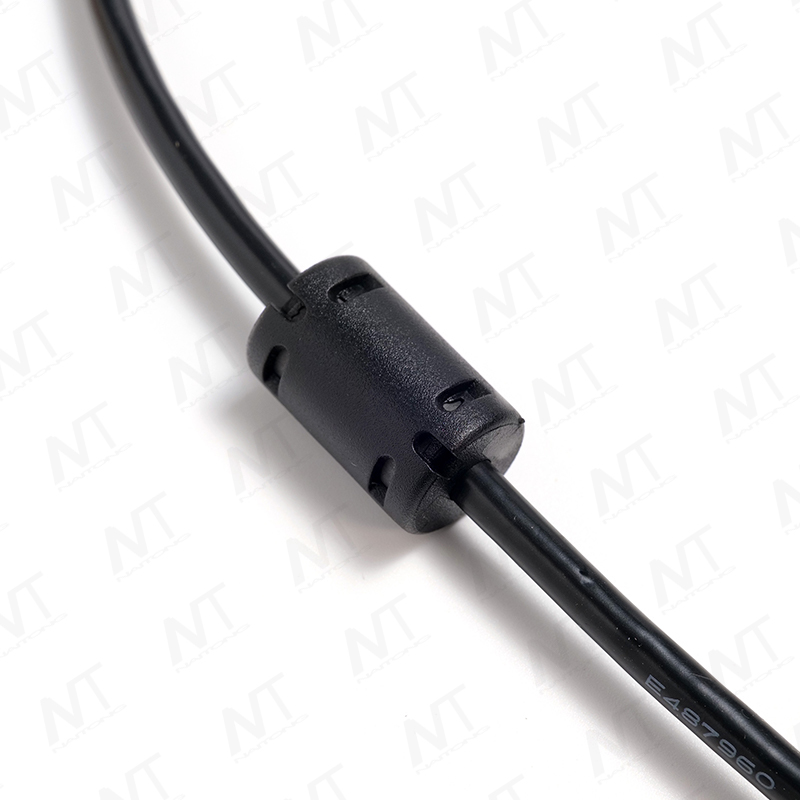

One ferrite ring is fitted at each end of the cable, with a high-permeability magnetic core — a professional EMI suppression structure.

High-Speed Data Transmission Between Devices

- Transfer rate: USB2.0 standard, up to 480Mbps, capable of transmitting documents, images, firmware programs, and audio/video files;

- Application scenarios: computer-to-computer data transfer, debugging connections for industrial equipment/PLCs/test instruments with computers, camera/capture card connections to host machines, and development work.

Specifications

Product Name	Custom Dual Ferrite Core USB A Male to Male Anti-EMI Cable Assembly
Application	Automotive, industrial, etc.
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
Outer Insulation Material	PVC, TPU, TPE OIL
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	USB Male
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing:	100% electrical and power performance testing before shipment

Application

Industrial Equipment Debugging

Connecting PLC controllers, inverters, sensor test instruments, and microcontroller development boards to computers for stable firmware flashing and parameter reading, without data loss in motor-interference-rich workshop environments.

In-Vehicle / Marine Audio Retrofit Accessory

Used alongside the marine/vehicle audio harness above, extending data between the head unit and external control panel, avoiding audio noise caused by vehicle circuit interference.

Computer Peripheral Interconnection

Computer-to-computer data copying, external USB capture devices, HD cameras, and live streaming capture card connections, eliminating image ripple and audio current noise.

Instrument / Medical Equipment

Small test instruments and portable medical devices connect to a host computer, ensuring precise, interference-free data transmission.
