Multi-Branch Ferrite-Equipped Industrial Control Splitter Wire Harness

Model: NT-XH26056

MOQ:1,000 pcs

Payment Terms: 30% deposit by T/T, full balance due prior to shipment

Lead Time: 15–25 days for samples; 3–4 weeks for mass production

Available Loading Ports: Shanghai, Vietnam

Services: OEM/ODM, Customization

Packaging: Custom export cartons, printed labels & export pallets

Contact us

PREV：M12 Male/Female Panel-Mount Waterproof Sensor Adapter Wire Harness NEXT：Dual Ferrite Ring USB Male-to-Male EMI Data Cable

Description

Main Input End: 16-pin Dual-Row Straight Pin Black Socket

Standard PH/XH pitch 16-pin male header, serving as the total signal input source, consolidating the entire machine's power supply, sensor, switch, and communication signals, mating with the mainboard/main controller, carrying all control signals and low-voltage power for the whole unit.

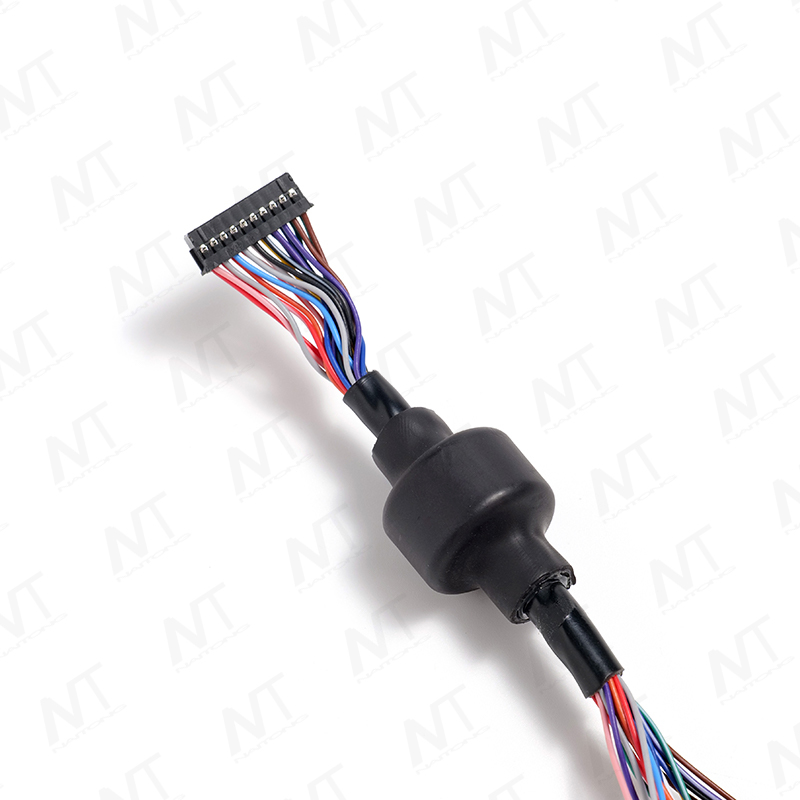

Core Anti-Interference Structure: Integrated Molded Ferrite Ring (Choke Bead)

A large ferrite ring is integrated in the middle of the main cable, fully enclosing all wires:

- Filters high-frequency EMI generated by motors, switching power supplies, and vehicle circuits;

- Suppresses cable signal radiation, preventing crosstalk, signal jumps, false triggers, and data loss between multiple signal lines;

- Under vehicle/industrial equipment vibration conditions, also provides harness bundling and pull-resistant buffering, preventing wire breakage at the branch root.

Specifications

Product Name	Custom Dual Ferrite Ring USB Male-to-Male Anti-Interference Data Cable
Application	Electric vehicles, construction machinery, marine electrical control, and industrial automation equipment
Cable Color	As per customer requirements
Cable Length	As per customer requirements
Conductor	Cu-ETP1 Tinned Copper
cable jacket Material	PVC, TPU, TPE OIL
Cable Sheath	TPU/PVC/TPE/Silicone
Connector Type	As per customer requirements
Pin Connection	As per customer requirements
Inner Copper	Cu-ETP1 Tinned Copper
Quality Certificates	ISO9001, IATF16949, ROHS, UL, SGS, REACH
Performance Testing	100% electrical and power performance testing before shipment

Application

Suitable for electric vehicles, construction machinery, marine electrical control, and industrial automation equipment, isolating electromagnetic radiation from motor high-current circuits, inverters, and power modules, eliminating sensor signal drift and controller malfunction.
