JIAXING NT ELECTRONIC TECHNOLOGY CO., LTD. is a China-based Electronic Wire Harness manufacturer supplying custom internal and external connection harnesses for consumer electronics, home appliances, office equipment, wearables, drones, and smart terminal devices. Our range covers jumper wires, battery connection leads, charging cables, switch and terminal harnesses, ribbon cables, and multi-branch assemblies, built to match device geometry, connector specifications, and electrical parameters.
We work from concept review and sample development through mass production, so a harness that starts as a drawing or a physical sample becomes a stable, repeatable part in your build. Our Jiaxing facility and Ho Chi Minh City factory support both custom projects and repeat volume orders.
Our Electronic Wire Harness Range
Electronic wire harnesses sit outside the dedicated automotive, medical, and industrial categories, covering the broad field of internal and external connection cables used across electronic terminals and systems. The product types below show where each assembly fits.

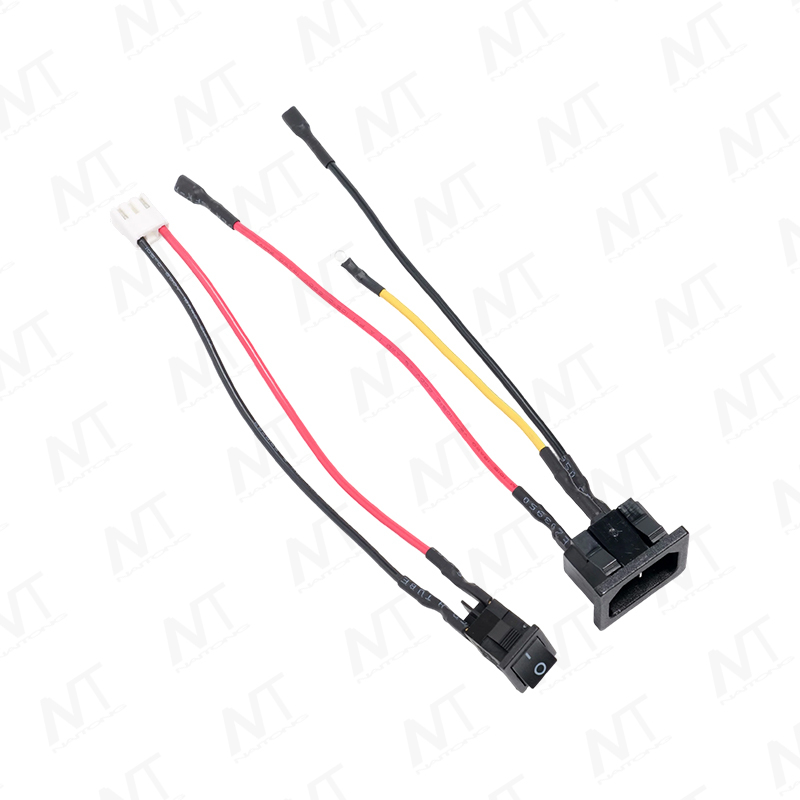

Switch & Terminal Harnesses
Metal push-button switches, rocker switches, and indicator-light assemblies terminated to XH, PH, or spade connectors for control panels and equipment interfaces.
Battery & Power Leads
High-current battery connection harnesses with Amass, EC5, and fuse-box options, plus sheathed multi-core power leads with spade terminals.

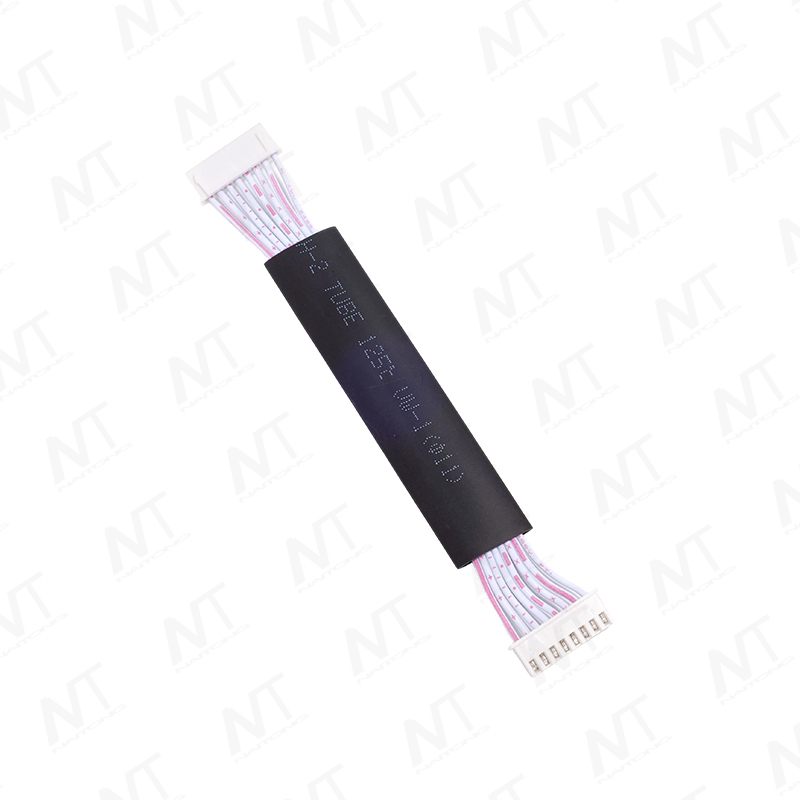

Board-to-Board & Ribbon Cables
PH2.0 single-end rainbow ribbon harnesses, XH multi-pin splitters, and twisted-pair control leads for internal device wiring.

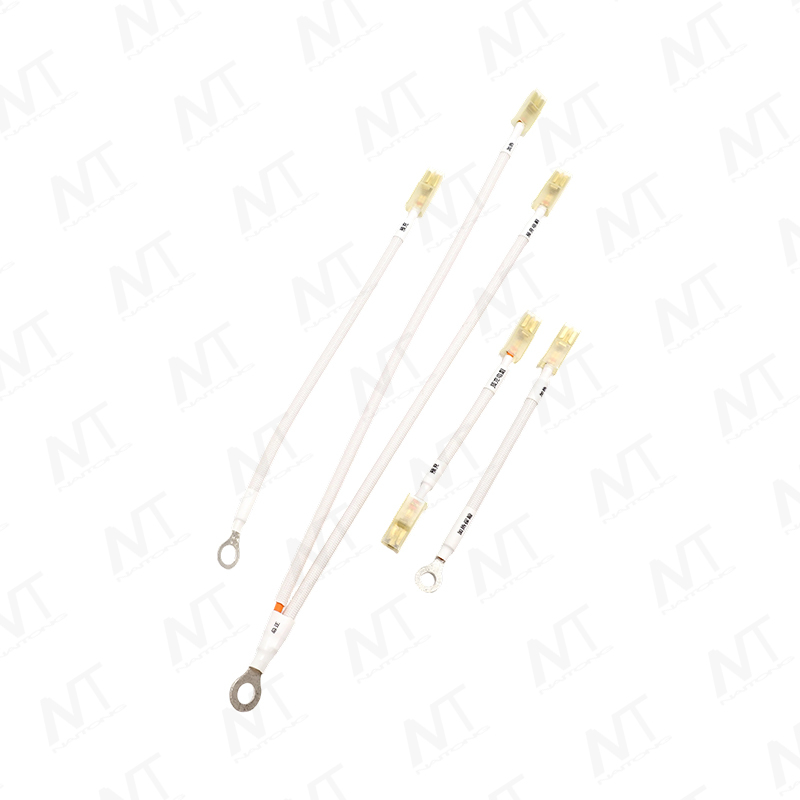

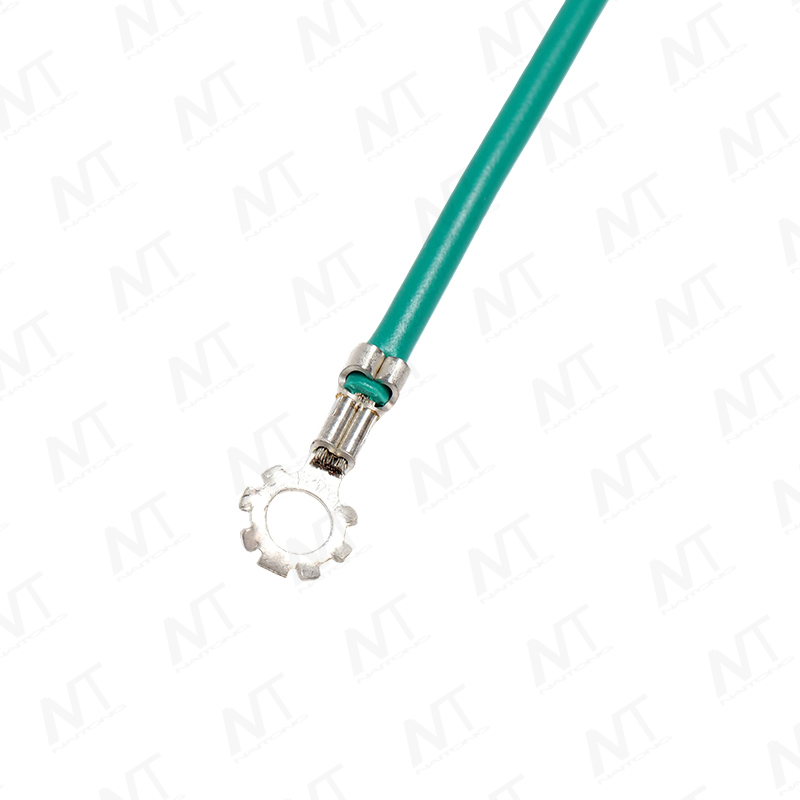

Ground & Ring Terminal Assemblies
HB 4-pin to O-type ring ground harnesses and L-shaped 6.3mm spade-to-pin insulated connectors for chassis and enclosure grounding.
Adjacent categories in our Products range include Automotive & EV Wire Harness, Industrial Control Cables, and Medical Wire Harness; electronic harnesses often share materials and connector families with these lines.
Application Fit by Product Type
| Harness Type | Typical Application | Key Configuration Points |
|---|---|---|
| Switch & indicator harness | Control panels, machine tools, security devices | Switch housing color, light color/brightness, harness length, terminal type |
| Battery connection harness | Power tools, chargers, energy storage, e-mobility | Connector series (Amass, EC5), fuse box, wire gauge, length |

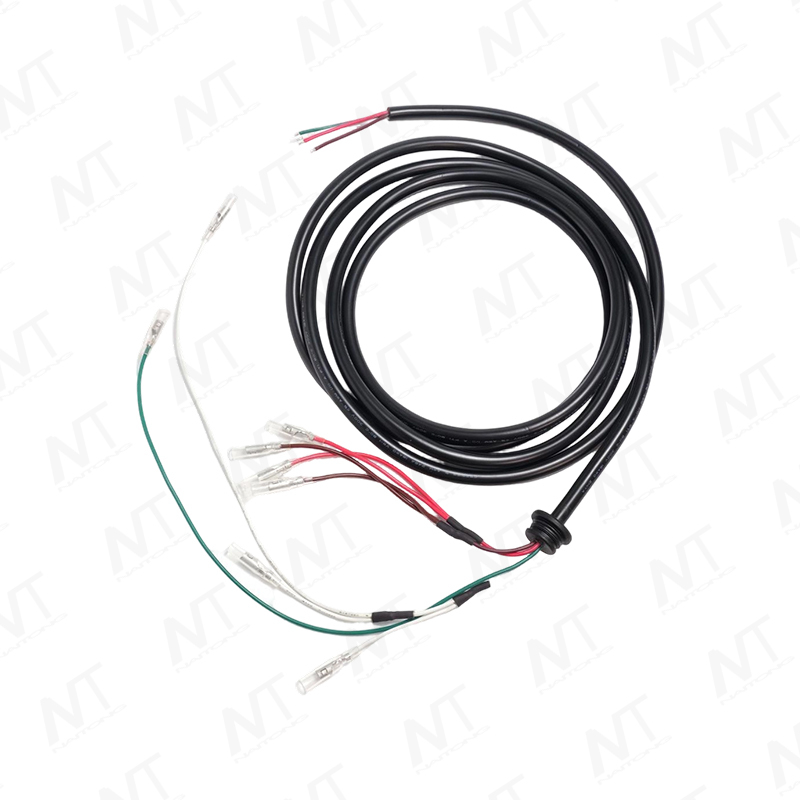

| Sheathed multi-core lead | Home appliances, lighting, power adapters | Core count, conductor cross-section 0.5–2.5mm², sheath material, spade size |
| Ribbon & splitter harness | Internal board wiring, sensor fan-out, LED modules | Pin count, pitch (PH2.0, XH2.54), branch count, twist option |
| Ground & ring terminal harness | Chassis grounding, enclosure bonding, power distribution | Ring diameter, insulation style, wire gauge, terminal plating |
Materials and Critical Specifications
Conductor, insulation, and terminal choices determine how a harness performs in bending, heat, and vibration. We select these against the working current, voltage, temperature, and routing environment of each device.
- Conductors: stranded copper, with cross-sections commonly from 0.5mm² to 2.5mm² for multi-core power and signal leads; larger gauges for high-current battery connections.
- Insulation and sheath: PVC, TPE, silicone, or polyurethane, selected for flame retardance, abrasion resistance, flexibility, and aging resistance.
- Terminals: copper alloy spade, ring, and pin terminals with tin or nickel plating for conductivity and oxidation resistance; fully insulated, semi-insulated, or bare options.
- Connectors: XH2.54, PH2.0, Molex 5557, Amass LCC30-F, EC5, HB 4-pin, and other standard families matched to mating method and insertion frequency.
- Shielding and jacketing: shielded and coaxial constructions where signal integrity or EMI control is required.
Configuration and OEM/ODM Engineering
Our OEM/ODM service starts from either complete drawings and BOM files or an initial concept, performance target, or application idea. Engineering reviews harness routing, branch structure, fixing method, and connector layout against installation space and assembly path, then matches wire, insulation, and terminals to the electrical and environmental requirements.
Where protection or integration is needed, we support overmolding and low-pressure molding, plus multiple cable and harness assembly processes. Packaging, labeling, and shipment requirements are planned with the harness design so that samples and mass-production batches arrive ready for your line.
Manufacturing and Quality Control
Our Jiaxing facility covers approximately 10,000 square meters with production lines organized by product category, supported by automated wire harness equipment and injection molding equipment. The process sequence runs from wire extrusion and cutting through stripping, crimping or welding, sub-assembly, overmolding, harness assembly, inspection and testing, and packing.
- Continuity and conductor resistance checks on assembled harnesses.
- Insulation resistance and withstand voltage testing for power-carrying leads.
- Terminal pull-force and crimp-height verification.
- Visual inspection of sheath, terminal plating, and connector seating.
- Durability testing on switch assemblies, including press-cycle life tests.
Our quality system is supported by IATF 16949 and ISO 14001 certification, and our wire harnesses are covered under UL certification (ZPFW8.E502461). Certification evidence can be supplied with project documentation where required.
Prototyping, Volume Production, and Delivery
We support small-batch sample validation and high-mix flexible production alongside volume orders. Sample lead time is typically 15–25 days, with bulk orders running around 3–4 weeks, and shipment can be arranged from Shanghai or Vietnam. Minimum order quantities vary by product; many catalog harnesses start at 1000 pieces, while selected items are available from 500 pieces.
Dual-location manufacturing in China and Vietnam gives overseas projects an alternative supply path and helps with delivery flexibility for European and American customers.
Information We Use to Configure Your Solution
A precise proposal depends on the device interface and the production target. The following inputs let us confirm materials, tooling, testing, and packaging without repeated clarification rounds.
- Drawings, BOM, or a physical sample with connector part numbers.
- Working voltage, current, and signal type for each conductor.
- Operating temperature range and environmental exposure (moisture, oil, UV, flexing).
- Installation space, bend radius, and routing constraints.
- Required connector and terminal families, plus mating counterparts.
- Annual volume, batch size, and delivery schedule.
- Labeling, packaging, and shipment marking requirements.
- Acceptance criteria and any certification or test reports required.
Frequently Asked Questions
What types of electronic wire harnesses does NT manufacture?
We manufacture switch and indicator harnesses, battery and power leads, sheathed multi-core leads, ribbon and splitter harnesses, and ground or ring terminal assemblies. Each is built to the connector, wire, and length requirements of the device it serves.
Can you produce from our drawings and BOM?
Yes. With complete drawings, samples, specifications, or connector selections, we manufacture to your technical requirements and review process execution, quality control, and delivery planning. If the design is not finalized, our ODM support can develop structure, material, and connector recommendations from the application requirements.
What are typical minimum order quantities and lead times?
Many catalog harnesses have a minimum of 1000 pieces, with selected items from 500 pieces. Samples typically take 15–25 days, and bulk orders around 3–4 weeks, depending on material availability and configuration.
Which tests are performed before shipment?
Assemblies are checked for continuity, insulation resistance, and withstand voltage, with terminal pull-force and crimp verification and visual inspection. Switch assemblies also undergo press-cycle durability testing. Test records can be included in the shipment documentation.
Do you support custom packaging and labeling?
We support customized boxes, labels, and pallets, along with sample packaging and mass-production labeling management, so harnesses arrive ready for your receiving and assembly process.
